4PCS Soft LED Backlight Sheet, 28W, 6000K White, 19.3X9.6 inch | Flexible, Cuttable, Translucent Countertop backlight, Indoor Use
4PCS Soft LED Backlight Sheet, 28W, 6000K White, 19.3X9.6 inch | Flexible, Cuttable, Translucent Countertop backlight, Indoor Use
Creative LED Backlighting
Foldable Cuttable Flexible

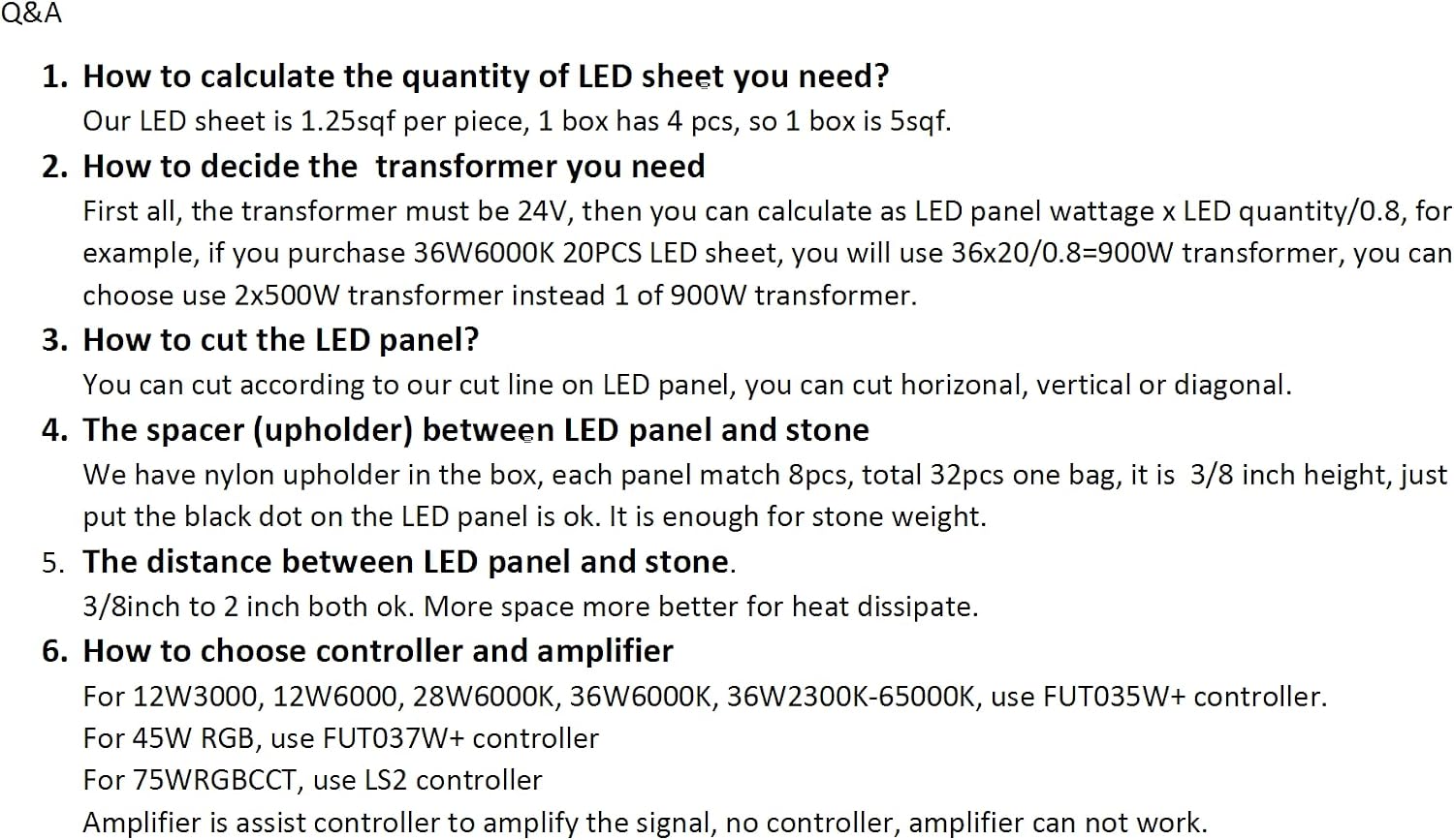

Q&A
1. How to calculate the quantity of LED sheet you need?
Our 28W LED sheet is 1.25sqf per piece, this package is 4pcs, total cover around 5 Sqf.
2. How to decide the transformer you need
First all, the transformer must be 24V, then you can calculate as LED panel wattage x LED quantity/0.8, for
example, if you purchase 28W6000K 16PCS LED sheet, you will use 28x16/0.8=560W transformer.
3. How to cut the LED panel?
You can cut according to the cut line which marked scissors on LED panel, you can cut horizonal, vertical or diagonal.

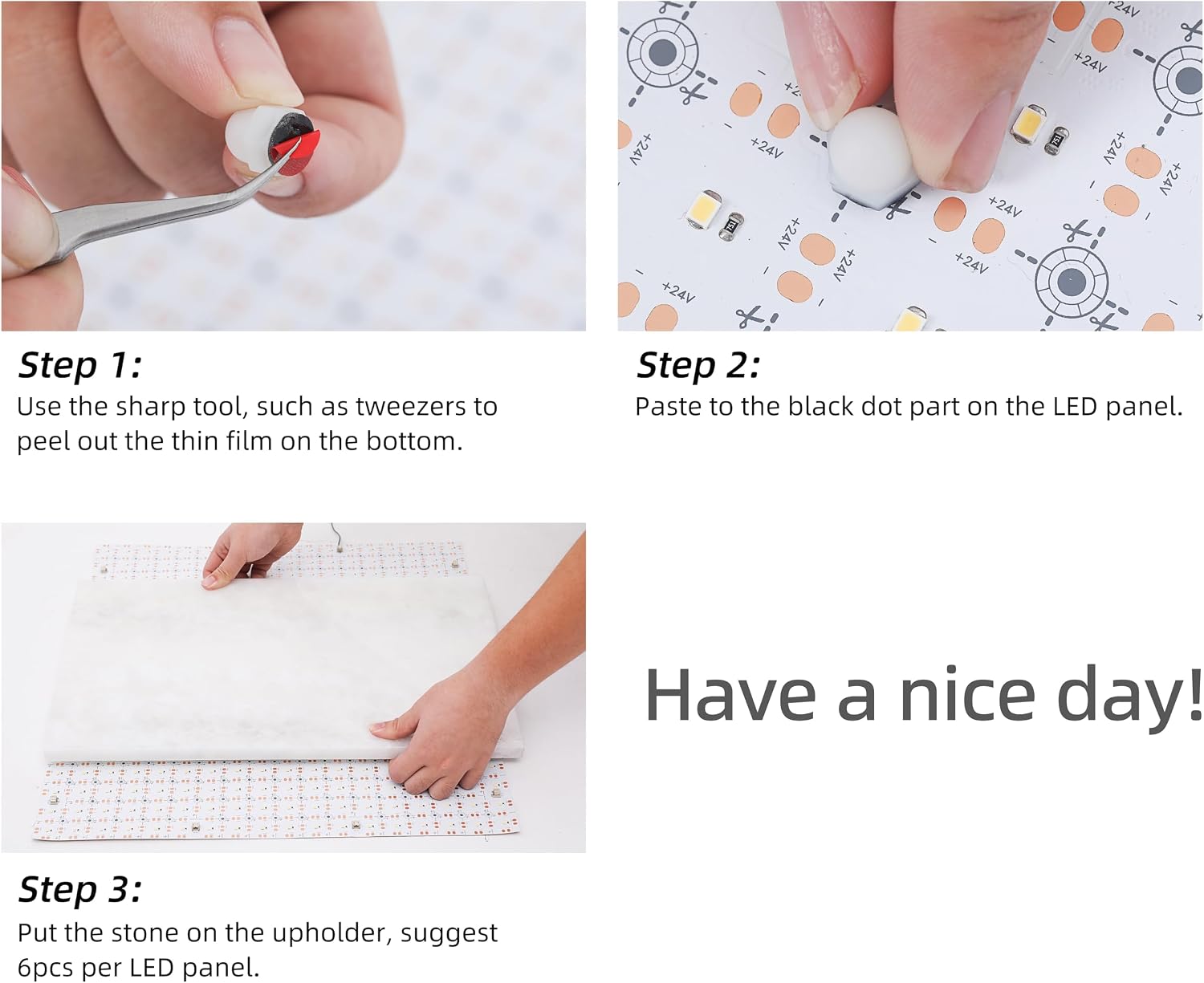

4. The spacer (upholder) between LED panel and stone
We have nylon upholder in the package, each bag is 32pcs, total 4 bag, it is 3/8 inch height, just paste it on the black dot on the LED panel is ok. It is enough strong for stone weight.
5. Power and controller board
Our latest power and control solution arrives with all components neatly pre-wired and mounted, it is cost saving, eliminates mistake, time saving, quality assured.
LED Backlighting Project Guide
1. Define Your End Goal, Vision
Are you aiming to create ambient lighting for a gathering place in your kitchen, task lighting for a workspace, or accent lighting to highlight architectural features? Defining your goal also helps us optimize the very best solution for you.
2. Project Design and Accommodations
Designing your lighting system involves more than just choosing lights. It includes the design layout, power sources, controls, etc, but we can supply the professional suggestion for you.
3. LED Panl Selection
Selecting the right LED product is key to achieving your desired lighting effect. Consider factors such as brightness (measured in lumens), color temperature (measured in Kelvin), and beam angle. Our core LED panel offer different benefits. We offer LED sheet in single-color white, tunable white, RGBW, RGB+CCT.
4. Considerations for controls & Power suppl
Calculate the total wattage of your LED lights and select power supplies that can handle the load with 20% or more of headroom (this ensures an extended power supply lifetime). Ensure the power supplies are installed in a location that allows for proper ventilation
- Button below product link, you almost finish the project power, controller etc purchase.
- The normal 600W LED power and HW2 controller has been pre-Wired for immediate use, simply connect it to the LED panel, no additional configuration required.
- Dimmable 600W LED power no need to buy controller and B1 remote, but need to buy dimmable switch separately, we recommend Lutron or Leviton.
- 600W kit can drive 12pcs 36W6000K LED sheet.
- 300W kit can drive 6pcs 36W6000K LED sheet.
- B1 is the wireless remote, similar like a switch, you can use it turn on and off and dimmable the LED sheet
- Accessory bag, there is 48" long wire inside the box, it can be useful for far distance connection between2 LED sheet.
Minxue 600W 24V Driver paired with 30A Controller Board pre-Wired for 36W6000...
|
Minxue 300W 24V Power paired with 30A Controller for12W Single White LED Shee...
|
Miboxer B1-B 4-Zone Panel Remote Battery Powered Free Installation Without Wi...
|
Minxue Power Output and Input kit Bag for LED Panel 36W Single Color
|
MINXUE 600W Dimmable LED Driver 24V, 5-in-1 Dimming ELV/MLV/TRIAC / 0-10V / 1...
|
|
|---|---|---|---|---|---|
|
|
|||||
| Customer Reviews |
—
|
—
|
5
|
2
|
6
|
| Price | $199.00 | $119.00 | — no data | $17.99 | $199.00 |
| 12pcs 36W LED Sheet | no data | no data | ✓ | ✓ | no data |

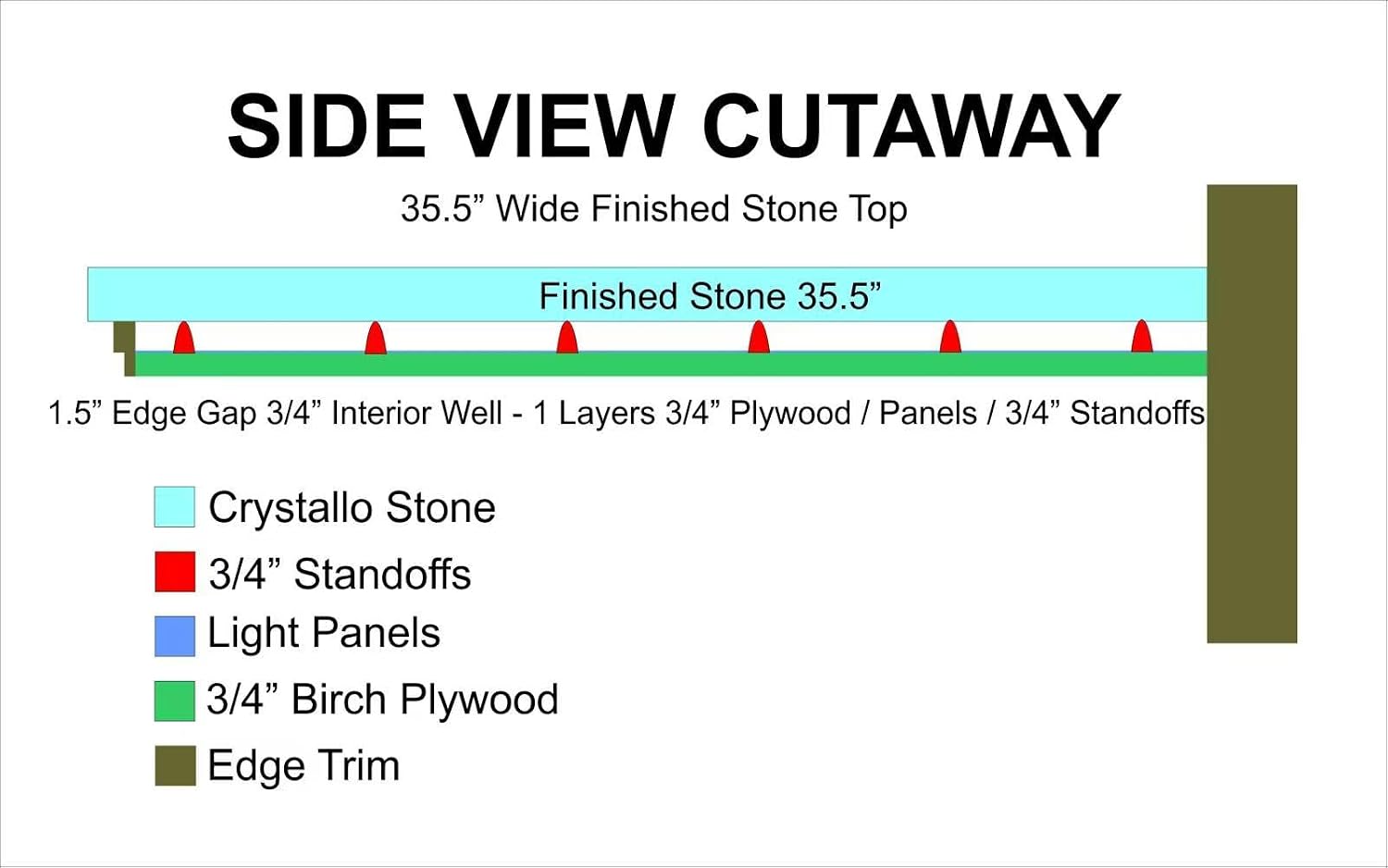

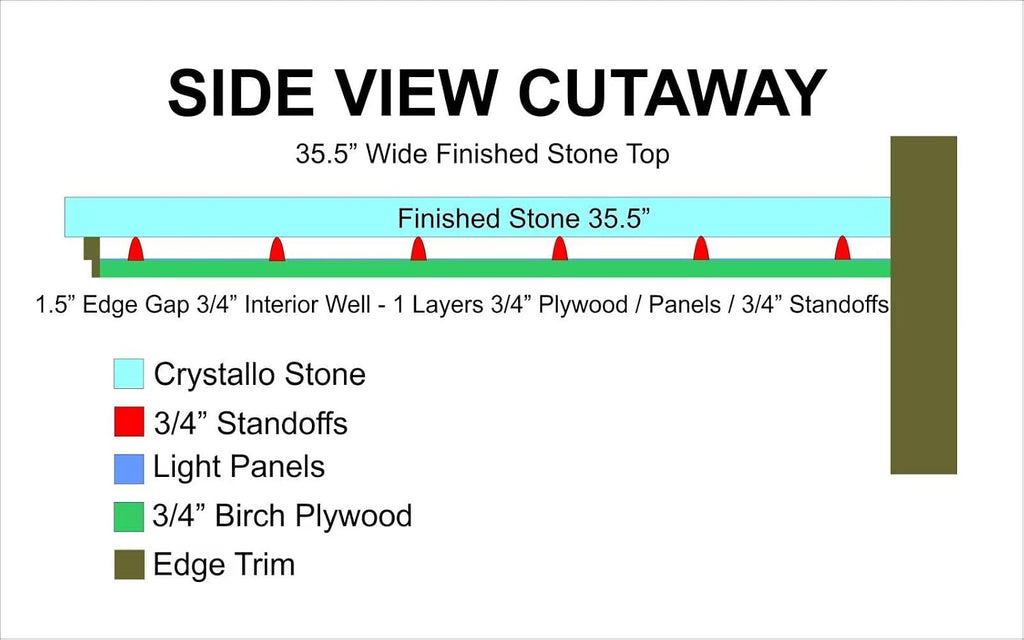

- Installation Requirements: To make the LED sheet work, 24V transformer and controller and remote are totally necessary. The normal installation way is lay 3/4" plywood on cabinet, then glue or screw the LED light sheet on the plywood, then glue 3/4" upholder, then put the crystallo stone on

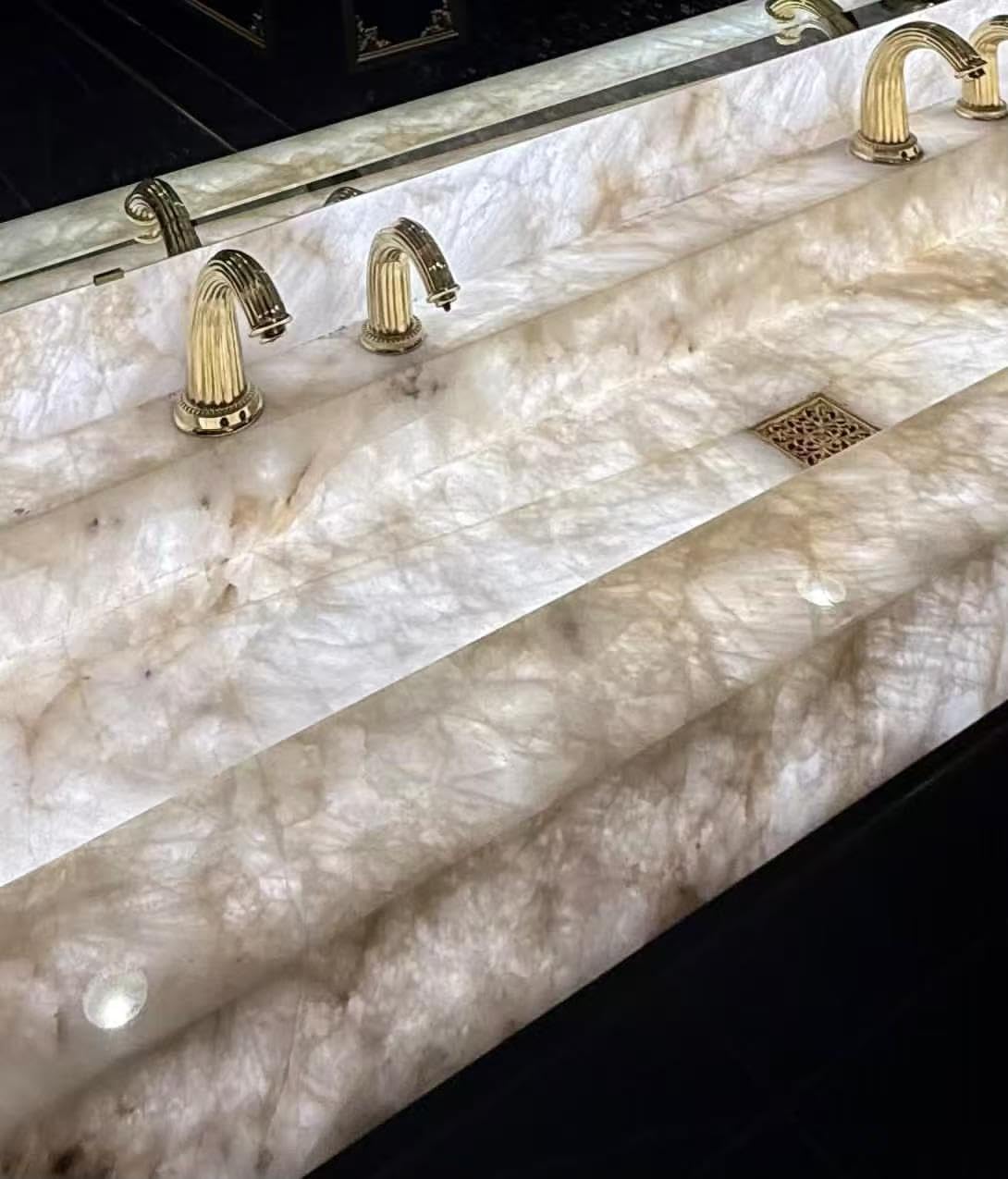

- High Color Rendering Index: CRI>90 for large applications, the backlit countertop works well with Natural stone or Quartz. If your countertop is glass or thin quartz below 0.3inch thickness, please consider the light spot problem and choose our LED sheet carefully

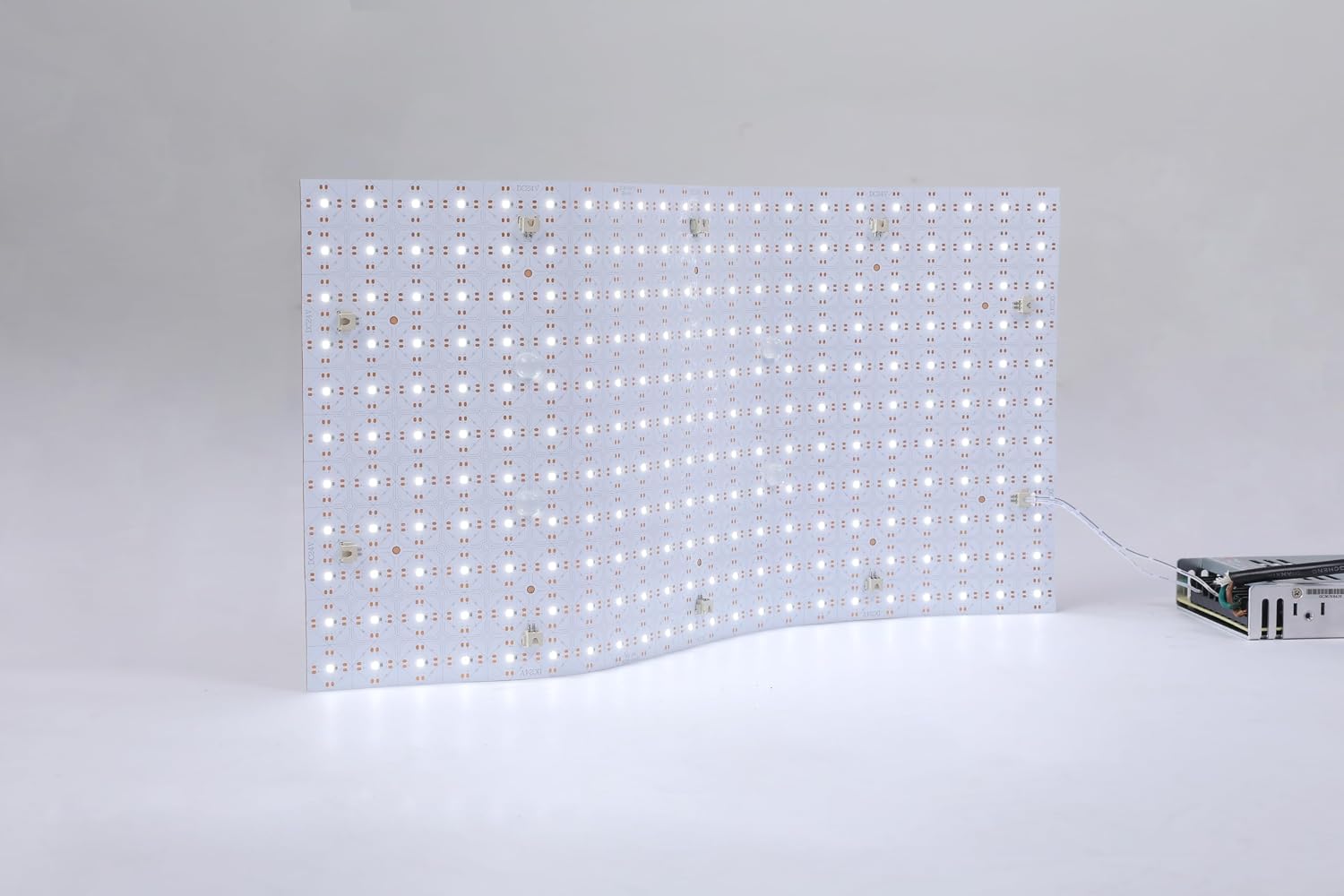

- Technical Specifications: 6000K, DC24V, 28W per sheet, bright. 19.3x9.6inch per sheet, 2 oz per sheet, suggest 3/4-1 inch space between the LED panel and countertop
- Professional Installation Support: USA local engineer available to supply installation coaching, we can supply the layout and circuit diagram design free
- Flexible Installation Options: Peel & stick tape backing suitable for curved area, also assigned screw for secure mounting

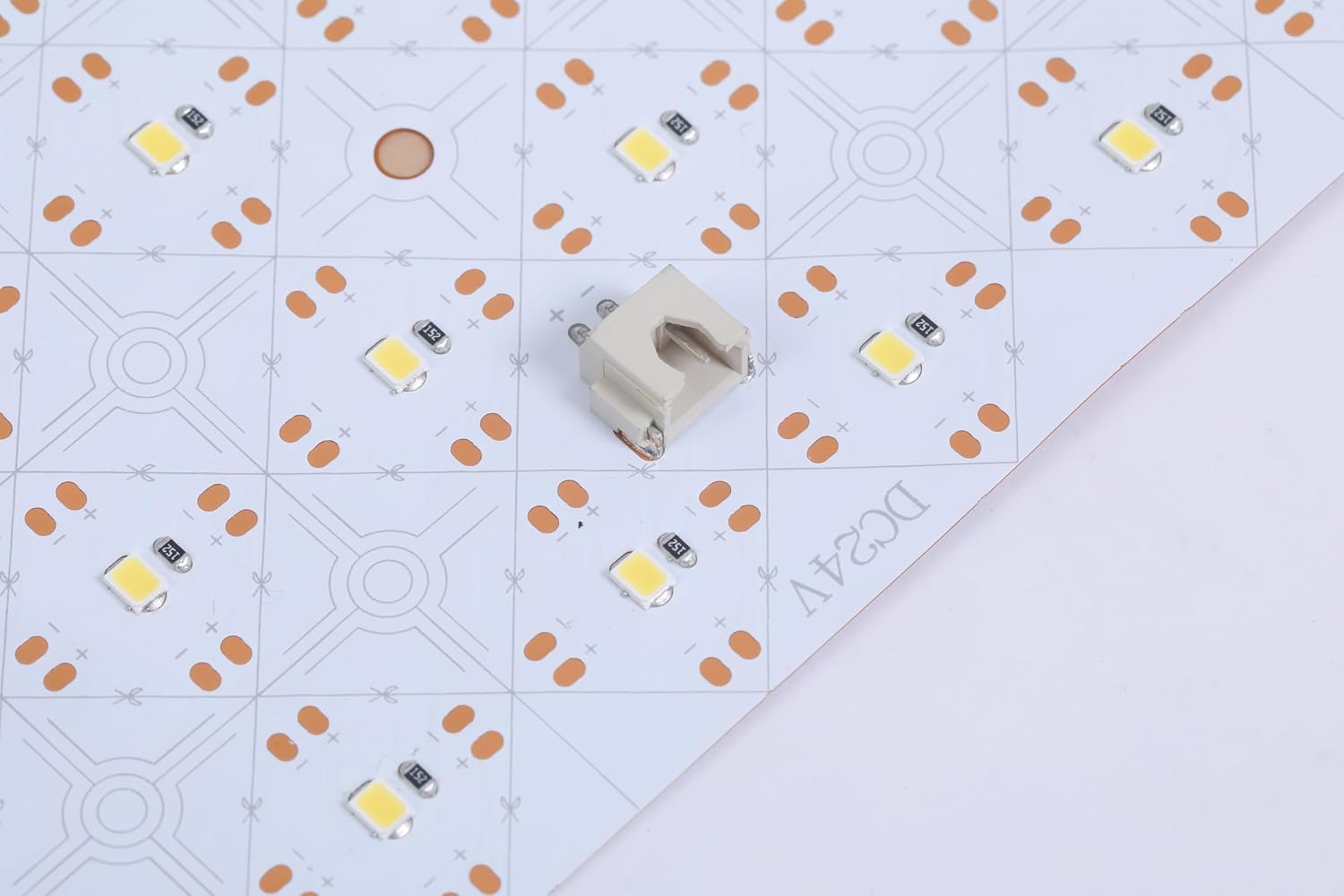

- Durability and Construction: Working life time 30,000 hours. IP rating: IP 20. Inside LED chip is small chip, the LED lead is silver, the PCB board is 25um/25um
- Package Contents: 4pcs led panel, total 5 square foot, 8 pcs short connect line each is 3 inch length, 8 pcs long connector line each is 8 inch, 1 installation manual, 24pcs spacer
- Simplified Power Connection: To simplify the installation, we made the 600W transformer paired with HW2 controller for direct connection to the LED panel, no extra connections needed. The power controller kit need to buy separately
| Color | White |
| Brand | Minxue |
| Indoor/Outdoor Usage | Indoor |
| Special Feature | Adhesive backing peels off for easy application, Dimmable, Wrap corners and trim to fit a unique shape See more |
| Light Source Type | LED |
| Power Source | Corded Electric |
| Light Color | white |
| Theme | design, show |
| Occasion | Anniversary |
| Style | morden |
