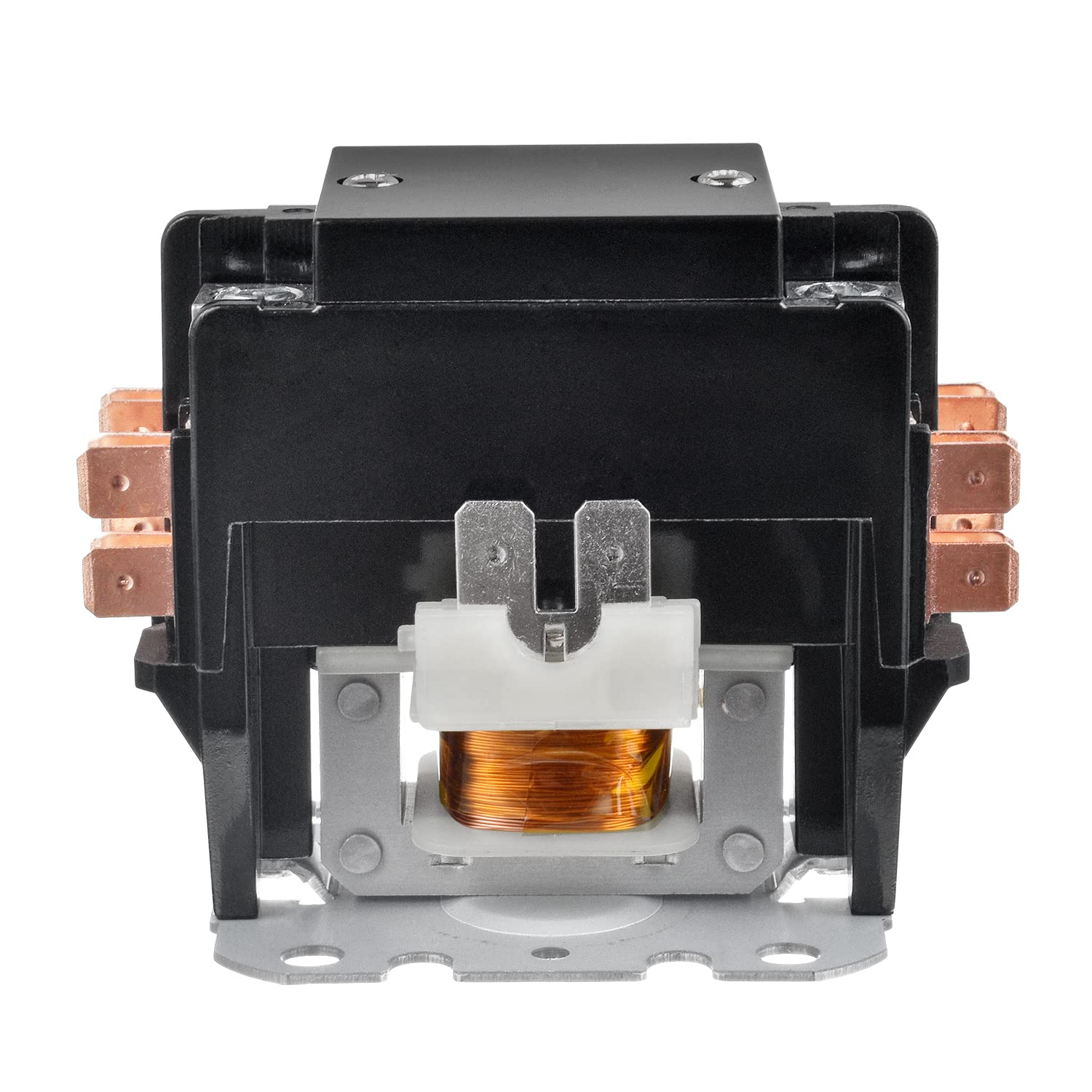

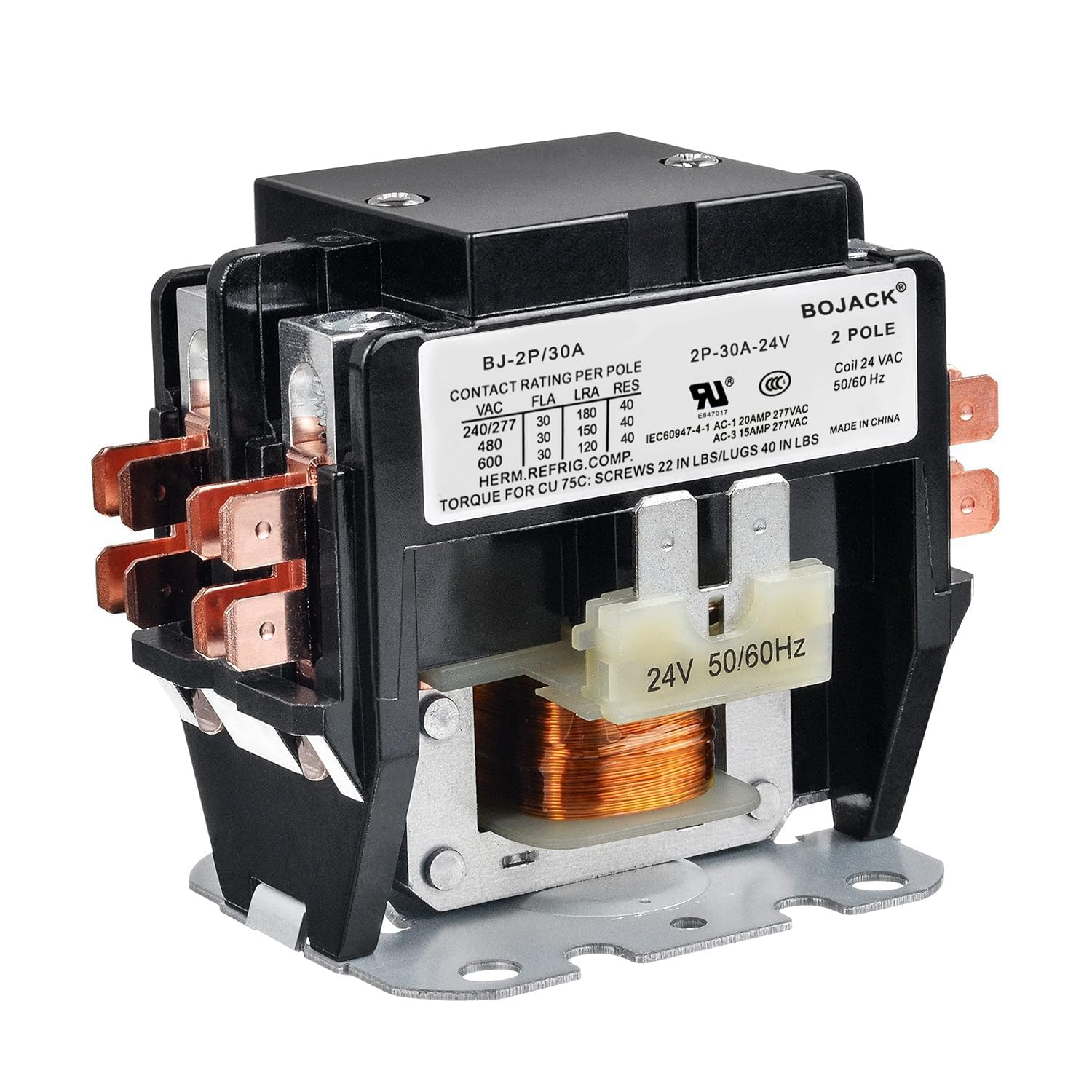

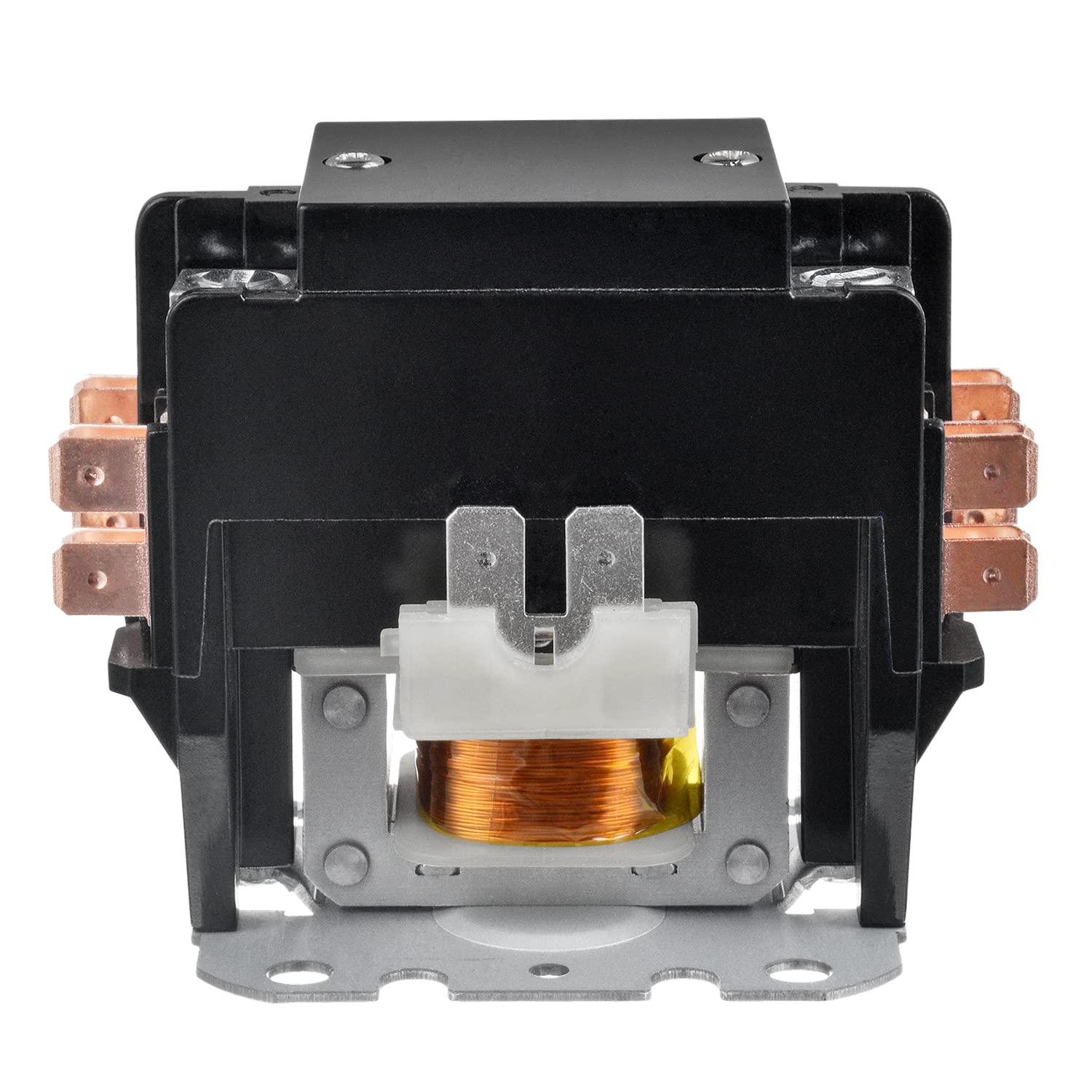

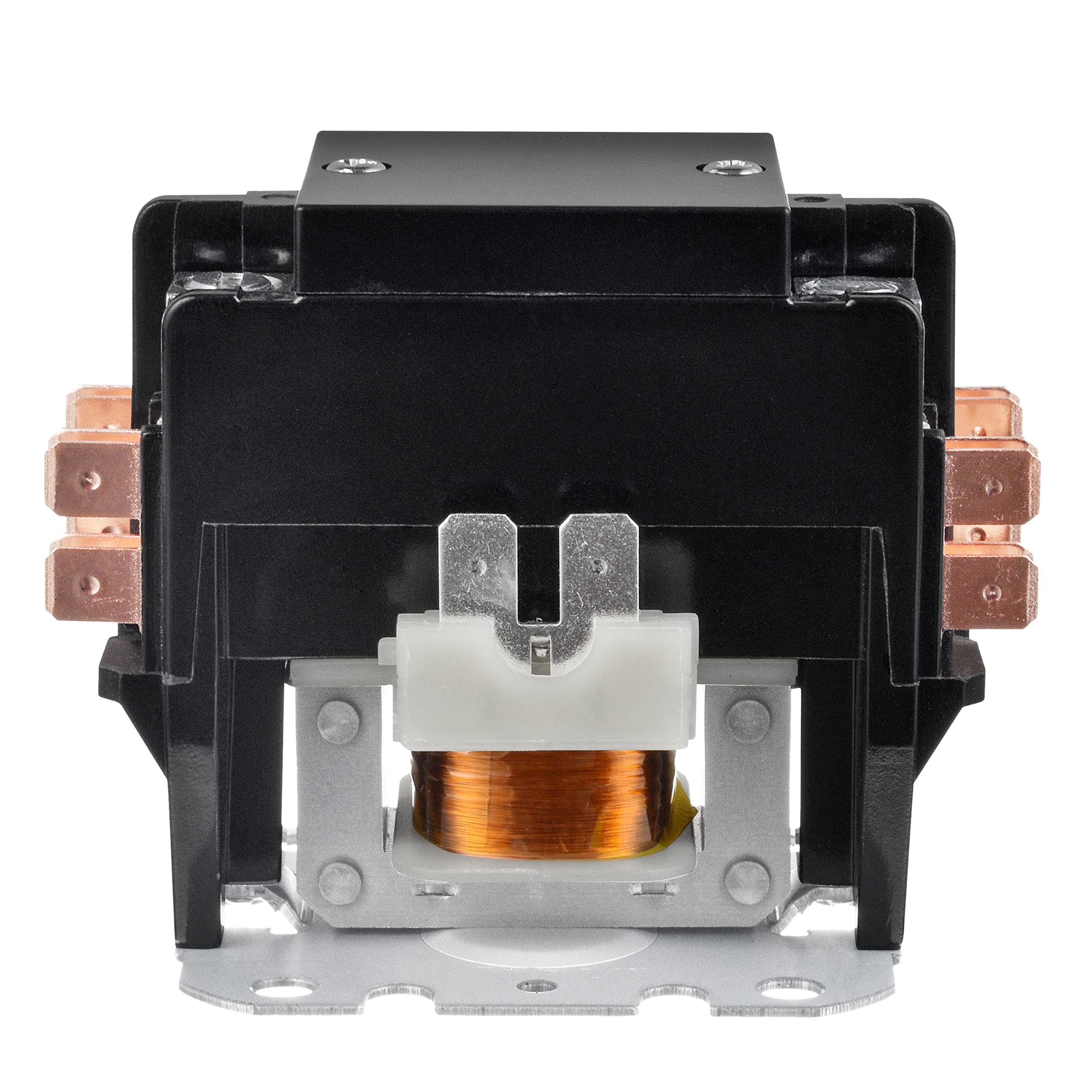

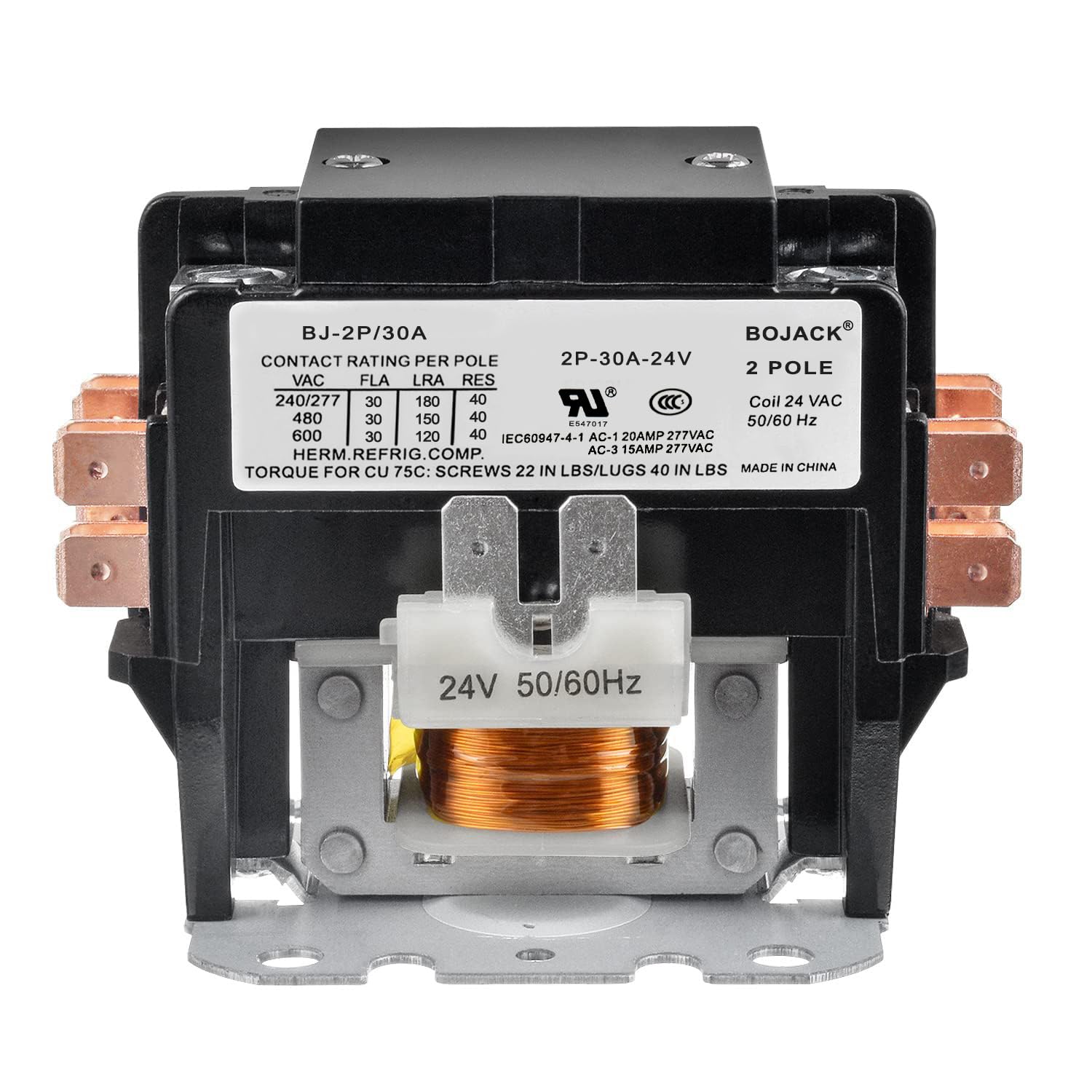

BOJACK 2 Poles FLA 30 Amp Coil 24 VAC Air Conditioner Condenser Compressor Contactor Motor Definite Purpose AC Contactor

BOJACK Hight Quality AC Definite Purpose Contactor
Electrical Parameters：
Poles: 2 P
Coil Voltage:24 VAC
Frequency:50/60 Hz
Rated Current: FLA 30 Amp
Terminal Size: 1/4 inch--Copper
Max.Withstand Voltage: 600 VAC
Insulation grade of the coil:class B

The AC contactor uses the main contact to open and close the circuit,
and the auxiliary contact to execute the control command.Fully enclosed
contacts ensure safe,Copper terminals are durable，very easy to
install and replace。
