Diamond Tile Hole Saw Kit 12pcs - 6/8/10/25/35/50/65mm Core Drill Bits,10mm Milling Bit and 2" Chamfer Bit with Hex Adapter and 4.5" 2pcs Diamond Blade and for Tile Porcelain Marble
Diamond Tile Hole Saw Kit 12pcs - 6/8/10/25/35/50/65mm Core Drill Bits,10mm Milling Bit and 2" Chamfer Bit with Hex Adapter and 4.5" 2pcs Diamond Blade and for Tile Porcelain Marble
Steps for Drilling Holes

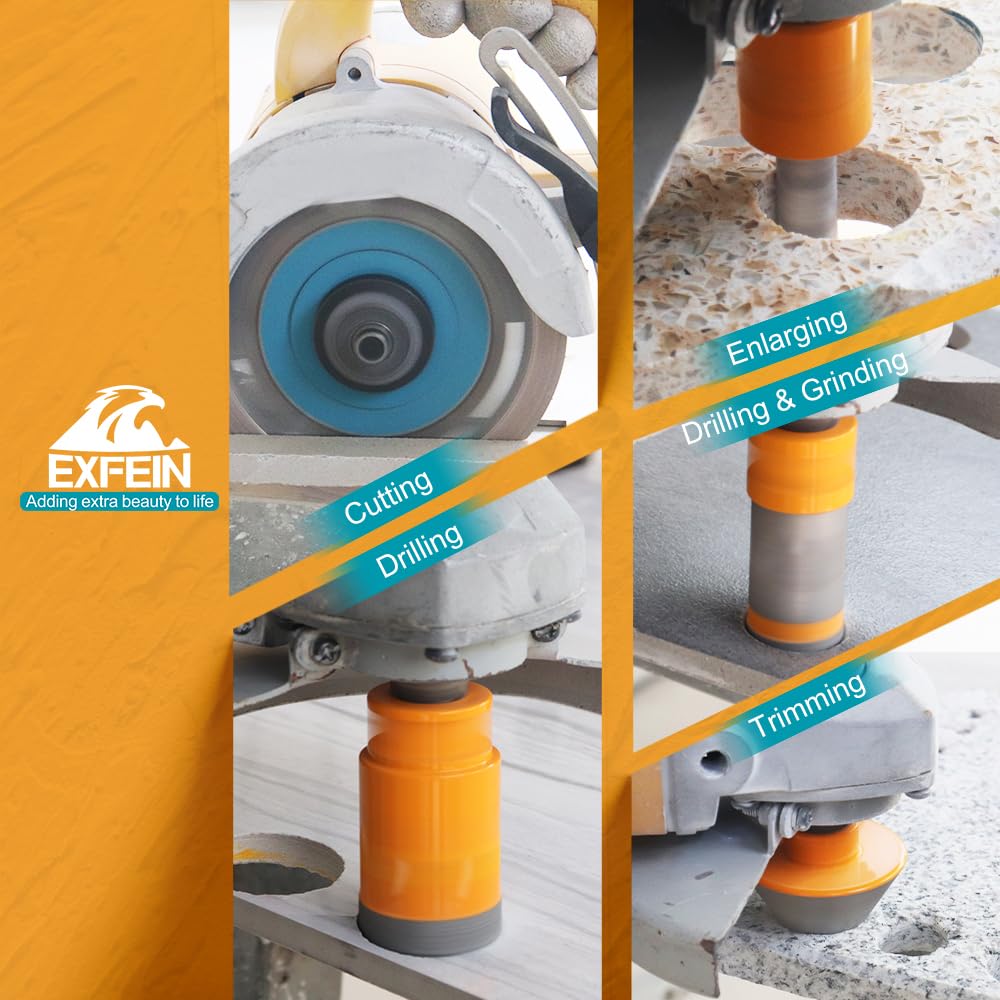

Diamond Core Drill Bits & Diamond Blades - for Drilling and Cutting
Drilling Natrural Stone
5/8"-11 Thread; for angle grinder.
Work Effect
Dry or wet use on tile, marble, artificial stone and granite.

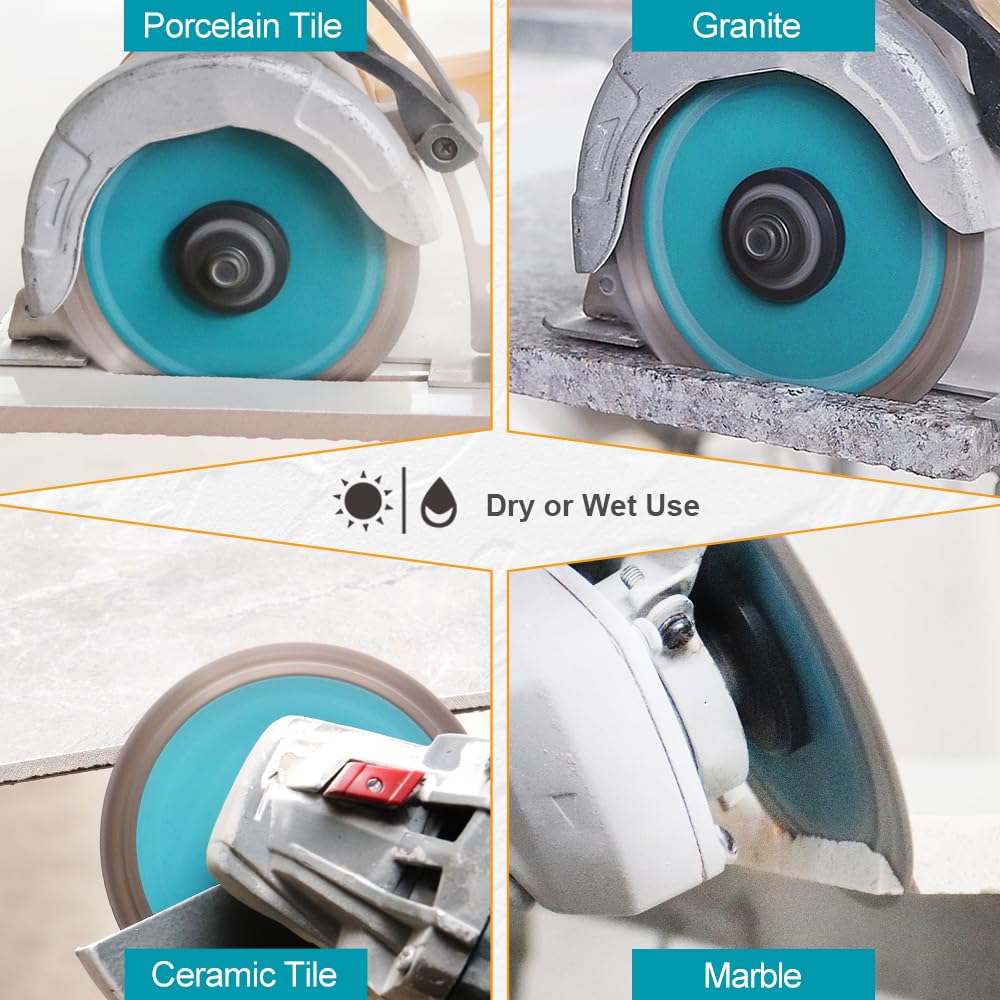

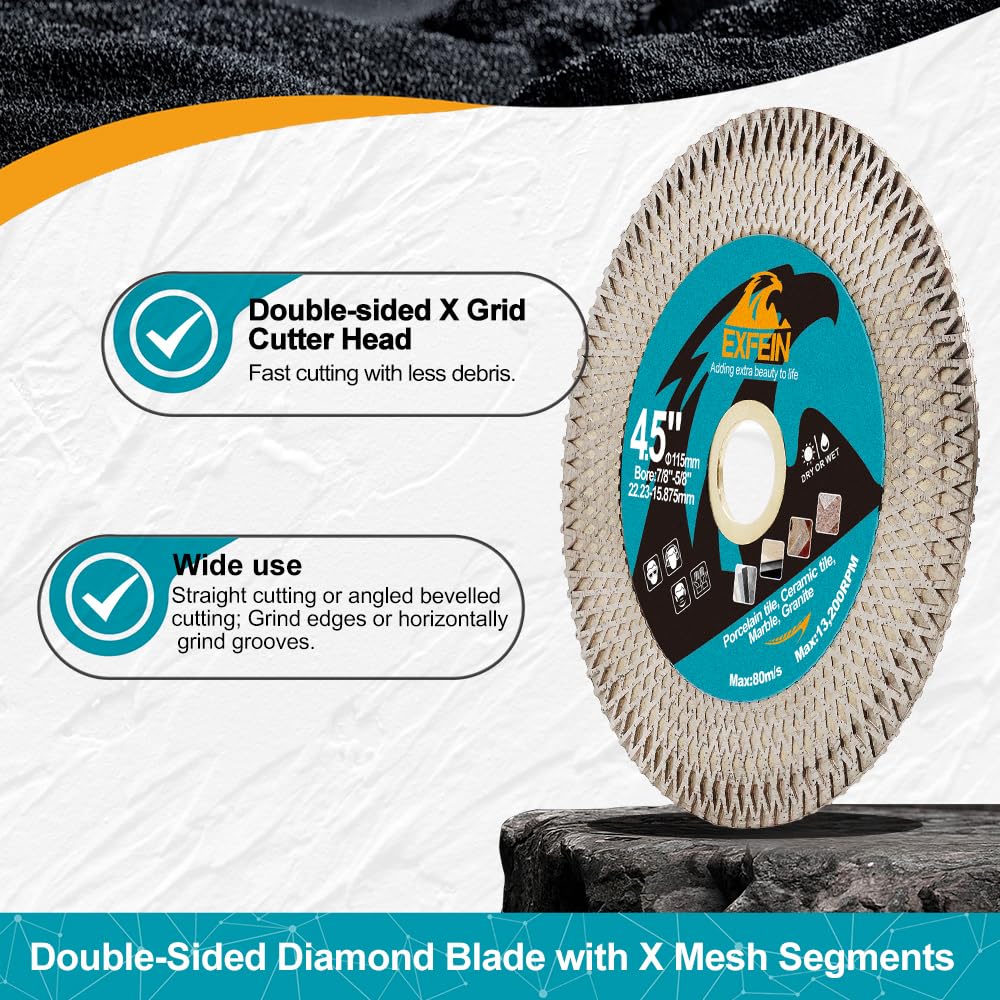

Cutting Natrural Stone

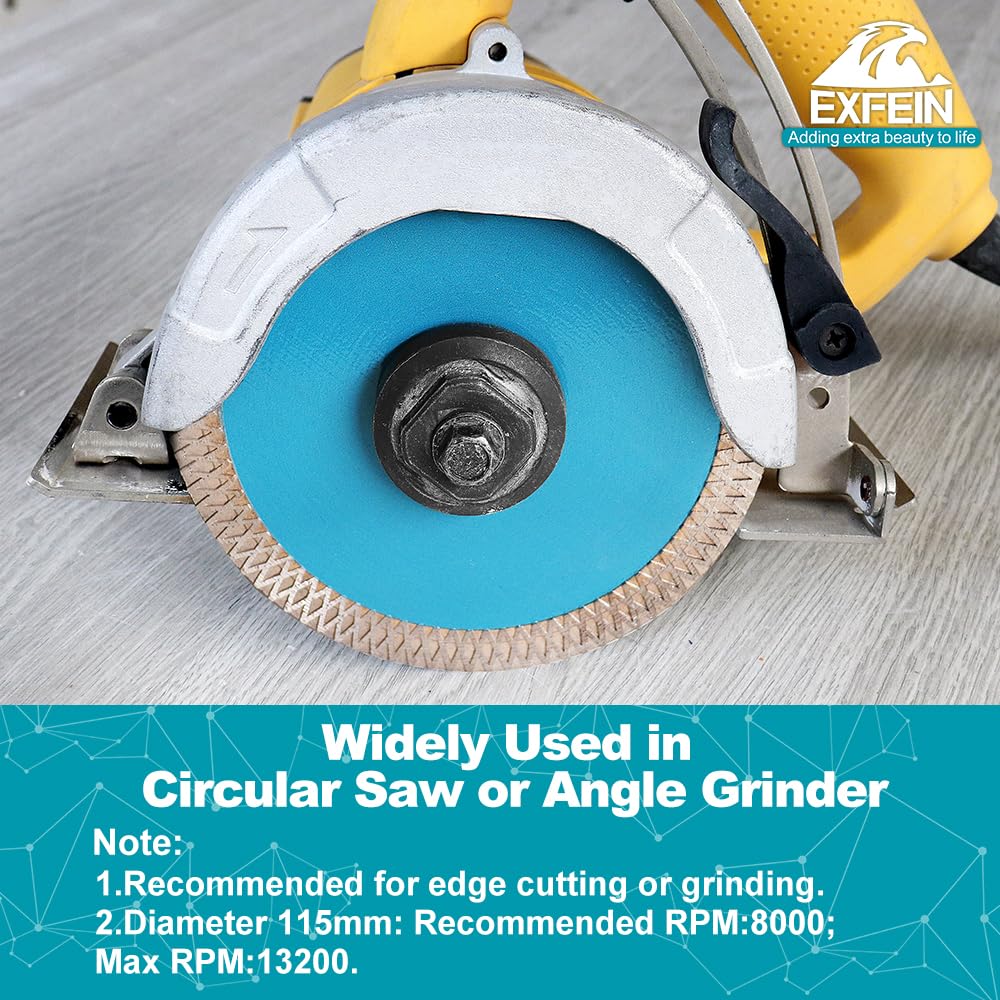

for circular saw or angle grinder. Handheld saws are safer.
Work Effect
Dry or wet use on various tiles and marble.
Integrated Drill Bit and Milling Bit - for Drilling & Grinding Holes

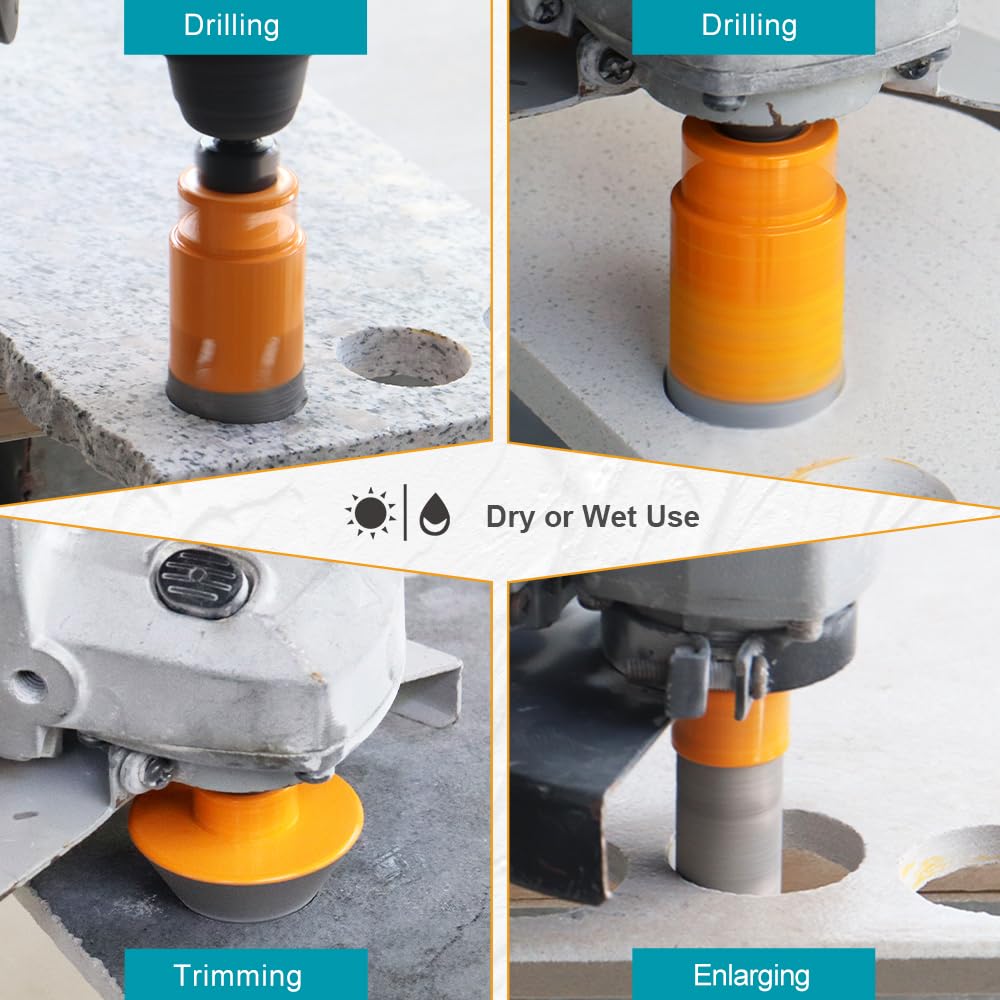

Drilling Holes Step 1
Place the drill bit at a about 45-degree angle, it will help position. Hold the machine very steadily and give gentle pressure to start drilling.
Drilling Holes Step 2
Keep drilling until the hole has been formed. You can shake slightly. Don’t greatly sway.
Enlarge or grind holes
If you want to enlarge the hole, you can use the diamond on the outside of the drill to continue grinding the inside of the hole to enlarge it.
Make rounded chamfers
You can start grinding right at the edge of the stone to get the rounded curved corners you want.
Diamond Finger/Milling Bit - for Enlarging/Trimming/Repairing Holes
Make curved rounded corners
Work Effect
Enlarge holes
Work Effect
Diamond Beveling Chamfer Bit - for Enlarging/Trimming/Repairing Holes
Chamfering/Beveling
Work Effect
Enlarge holes
Work Effect

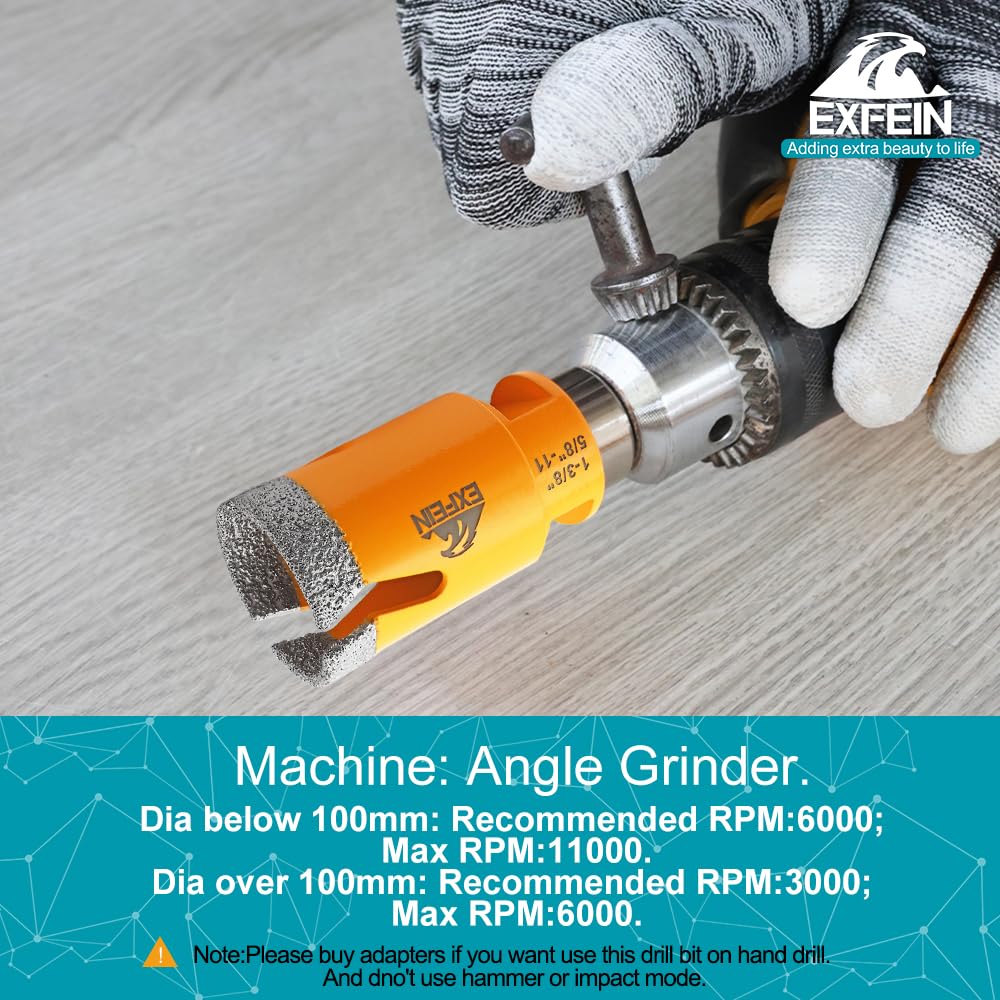

Core drill bit adapter to fit hand drill
With hex adapter
- For hand drill or other standard drill machine with hex shank.
- Do not use impact or hammer mode.
Good work effect
Make sure the speed is higher than 2000 RPM. Typical hand drills are 2000-5000 RPM. Within this range, the faster the drill speed, the longer it will last. So we don't recommend for a cordless drill. The lithium drill has a lower RPM, about 1000 RPM.
Compare with other kits
Diamond Tile Hole Saw Kit |
Diamond Tile Hole Saw Kit |
Diamond Tile Hole Saw Kit |
Diamond Tile Hole Saw Kit |
Diamond Tile Hole Saw Kit |
Diamond Tile Hole Saw Kit |
Diamond Cutting Disc |
|
|---|---|---|---|---|---|---|---|
|
Customer Reviews
|
75
|
75
|
88
|
45
|
88
|
88
|
2
|
|
Price
|
$142.90 | $113.99 | $169.99 | $75.99 | $94.99 | $125.99 | $13.19 |
|
Quantity
|
13 | 12 | 13 | 10 | 10 | 12 | 1 |
|
Size
|
1/4"-4"+ disc | 1/4"-2-1/2"+ disc*2 | 1/4"-5" | 1/4"-2-1/2" | 1/4"-2-1/2" | 1/4"-4" | 4.5" |
|
Machine
|
Angle Grinder/Hand Drill | Angle Grinder/Hand Drill | Angle Grinder/Hand Drill | Hand Drill | Angle Grinder/Hand Drill | Angle Grinder/Hand Drill | Angle Grinder/Circular Saw |
|
For Marble
|
✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
|
For Tile
|
✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |

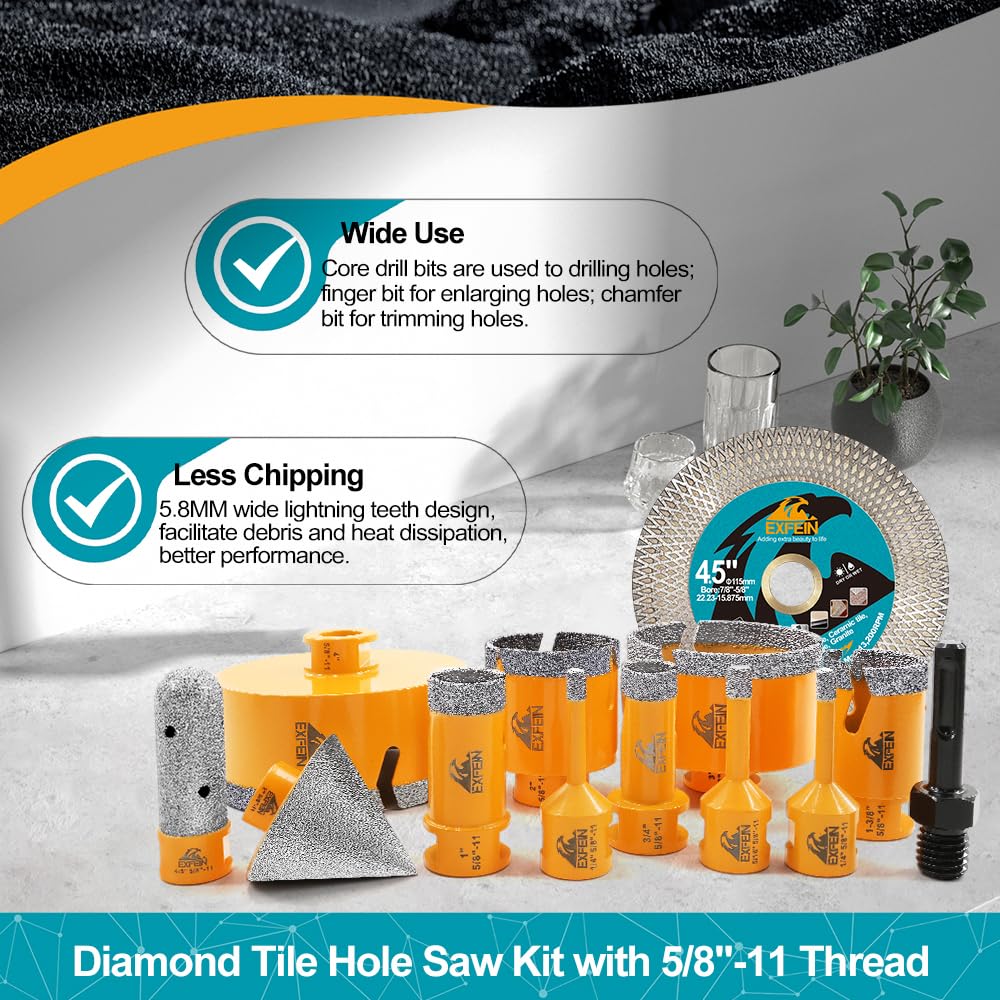

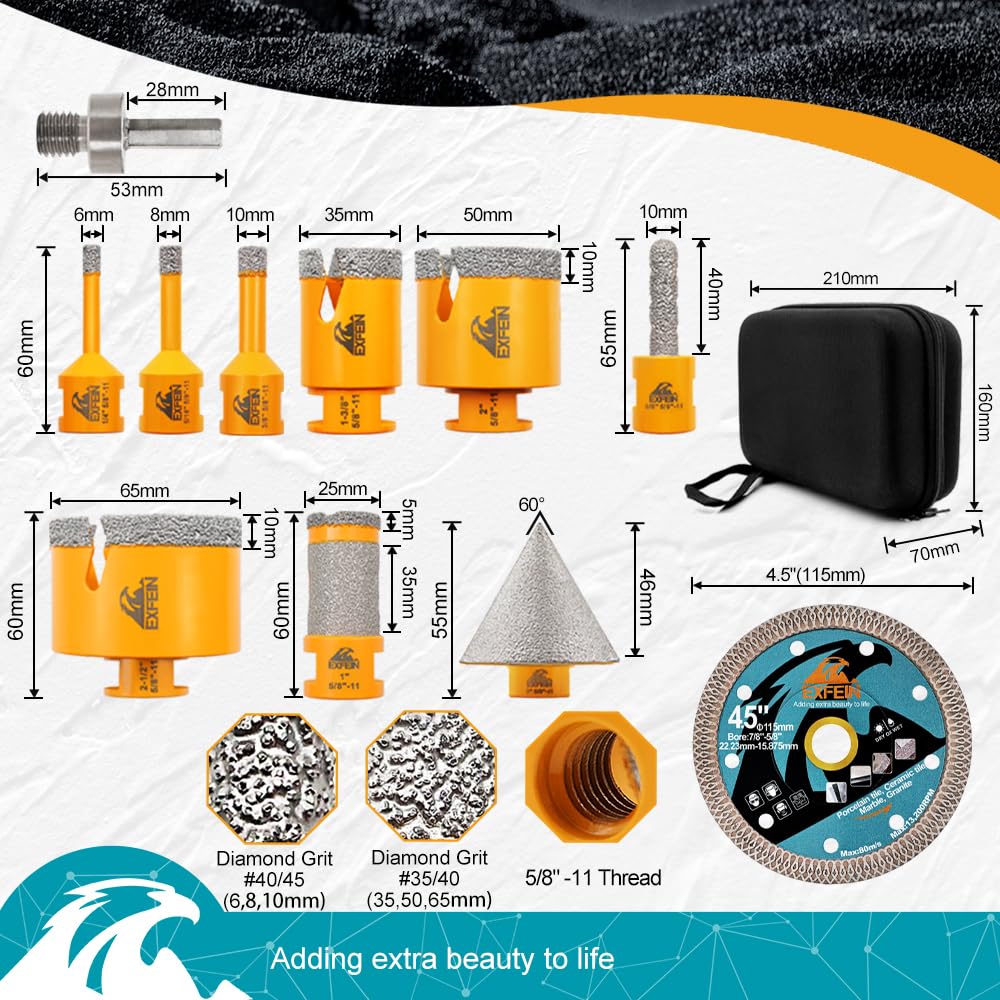

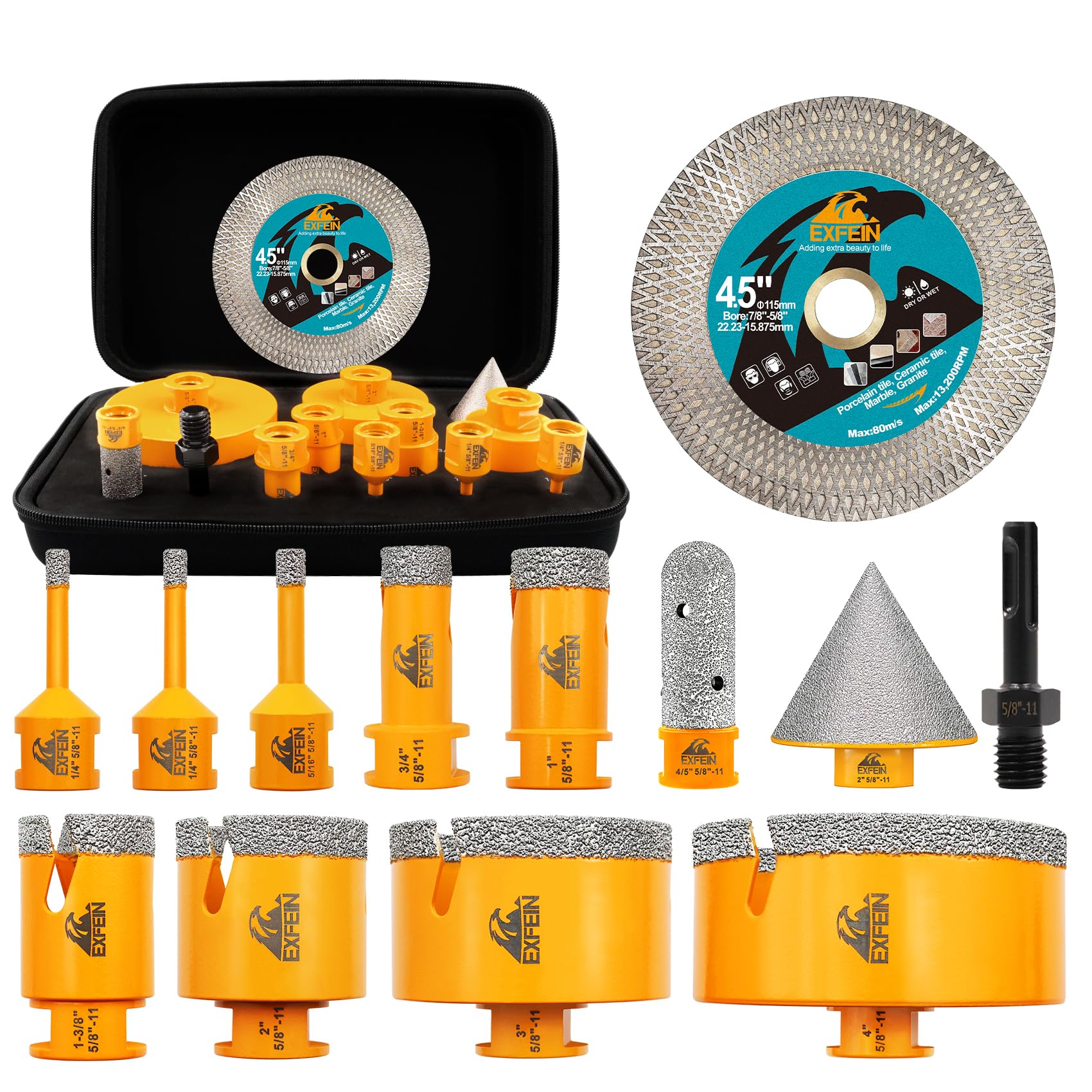

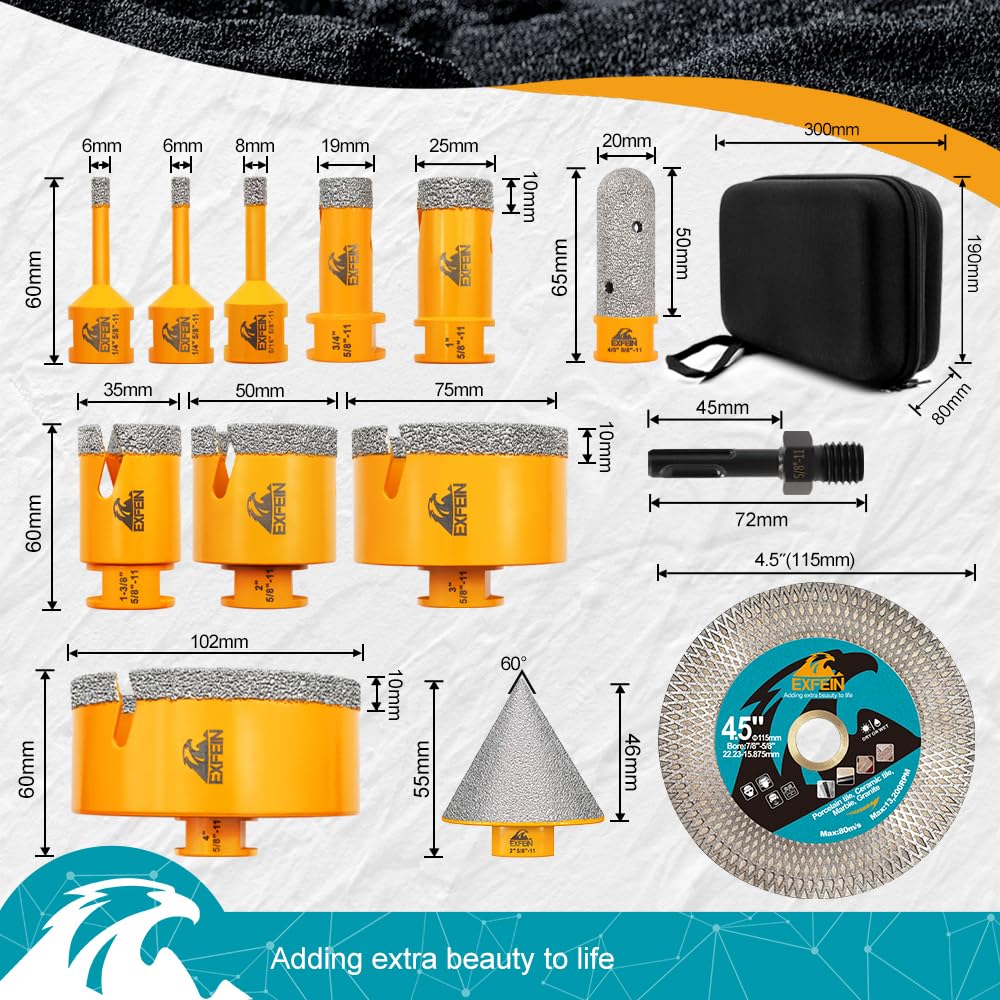

- 【Specification】12pcs/set. This set contains 6pcs diamond core drill bits(6/8/10/35/50/65mm); 1pc 1" diamond core drill bit finger bit all in one; 1pc 3/8" diamond finger bit; 1pc 2" diamond chamfer bit; 1pc connect 5/8"-11 thread to hex adapter; 2pcs diamond blade for tile.
- 【Application】EXFEIN core drill bits are used to drilling holes; finger bit for enlarging holes; chamfer bit for trimming holes; For porcelain ceramic tile marble granite, etc. Dry or wet use. Wet drilling with less debris for longer life.

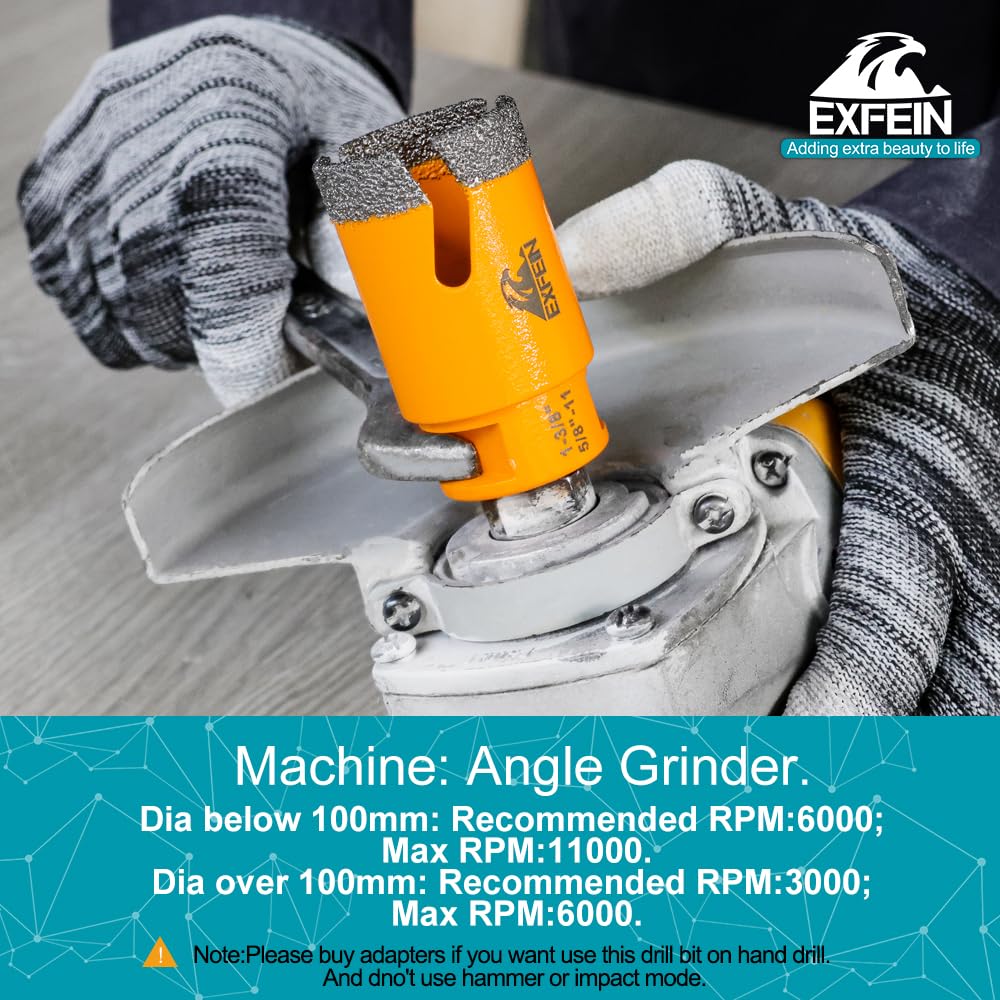

- 【Machine】5/8" arbor angle grinder. If you are using this bit on a hand drill, use the hex adapter in this set and make sure that the drilling speed does not go below 2000RPM. And do not use the impact drill mode.

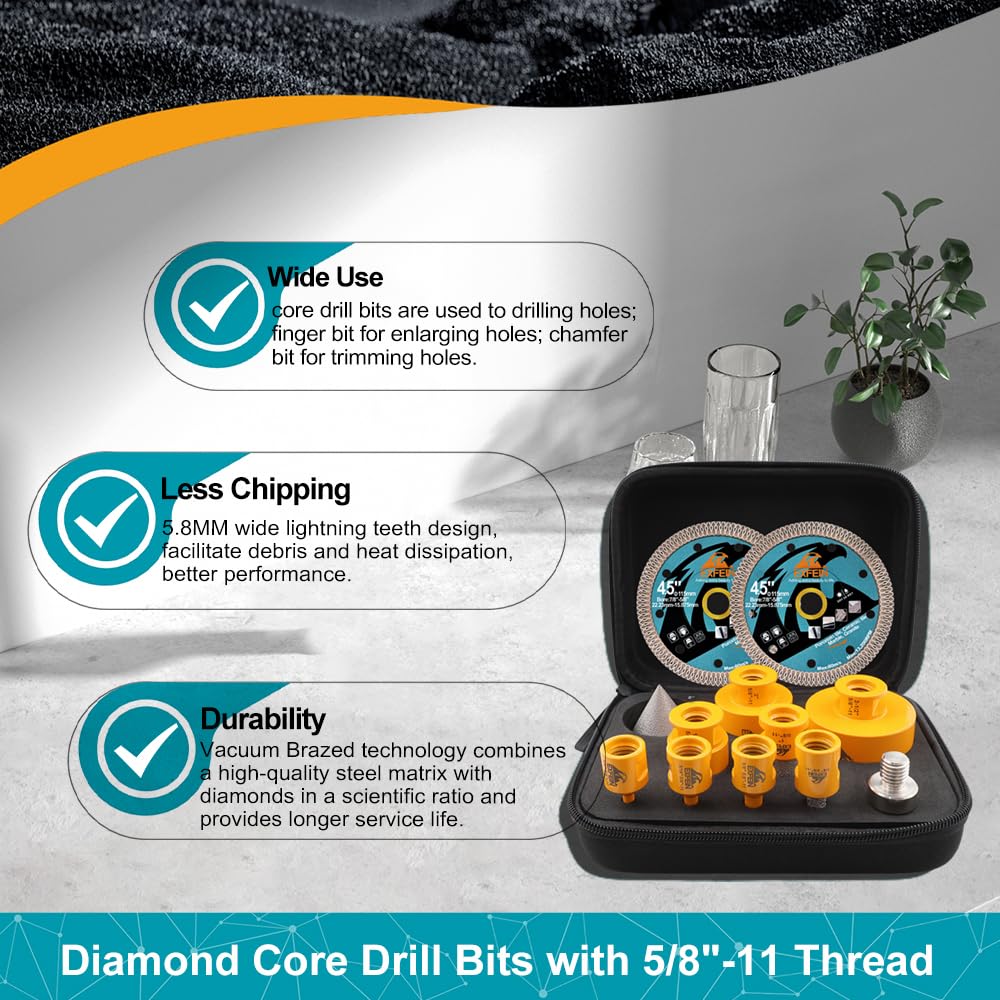

- 【Durability】Vacuum Brazed technology combines a high-quality steel matrix with diamonds in a scientific ratio and provides high efficient working performance and longer service life.
- 【Fast drilling】Lightning teeth has wide chip removal slots, dust can be quickly discharged when drilling, not easy to be clogged.
| Material | Diamond |
| Brand | EXFEIN |
| Color | Yellow |
| Style | Set 1 |
| Item Weight | 1.59 Kilograms |
| Number of Items | 12 |
