【FNRSI 2C53P Plus Upgraded with Carrying CASE】 3in1 Oscilloscope/Multimeter/DDS Signal Generator Tablet Touch Screen Portable Digital Automotive Oscilloscope 2 Channel 50MHz Bandwidth 250Ms/S Counts

THIS IS FNIRSI 2C53P UPGRADE MODEL WITH CARRYING CASE--NO NEED TO BUY AN EXTRA CARRYING CASE

FNIRSI 2C53P Oscilloscope/Multimeter/DDS Signal Generator

Upgraded from 2C23T, FNIRSI 2C53P not only has combined the functions of dual channels oscilloscope, digital multimeter and signal generator, but also highly improved its performances in all aspects you could imagined. It is touchscreen, handheld and portable, easy for electricians or DIY enthusiastics to use outdoor and indoor.

Basic Parameters

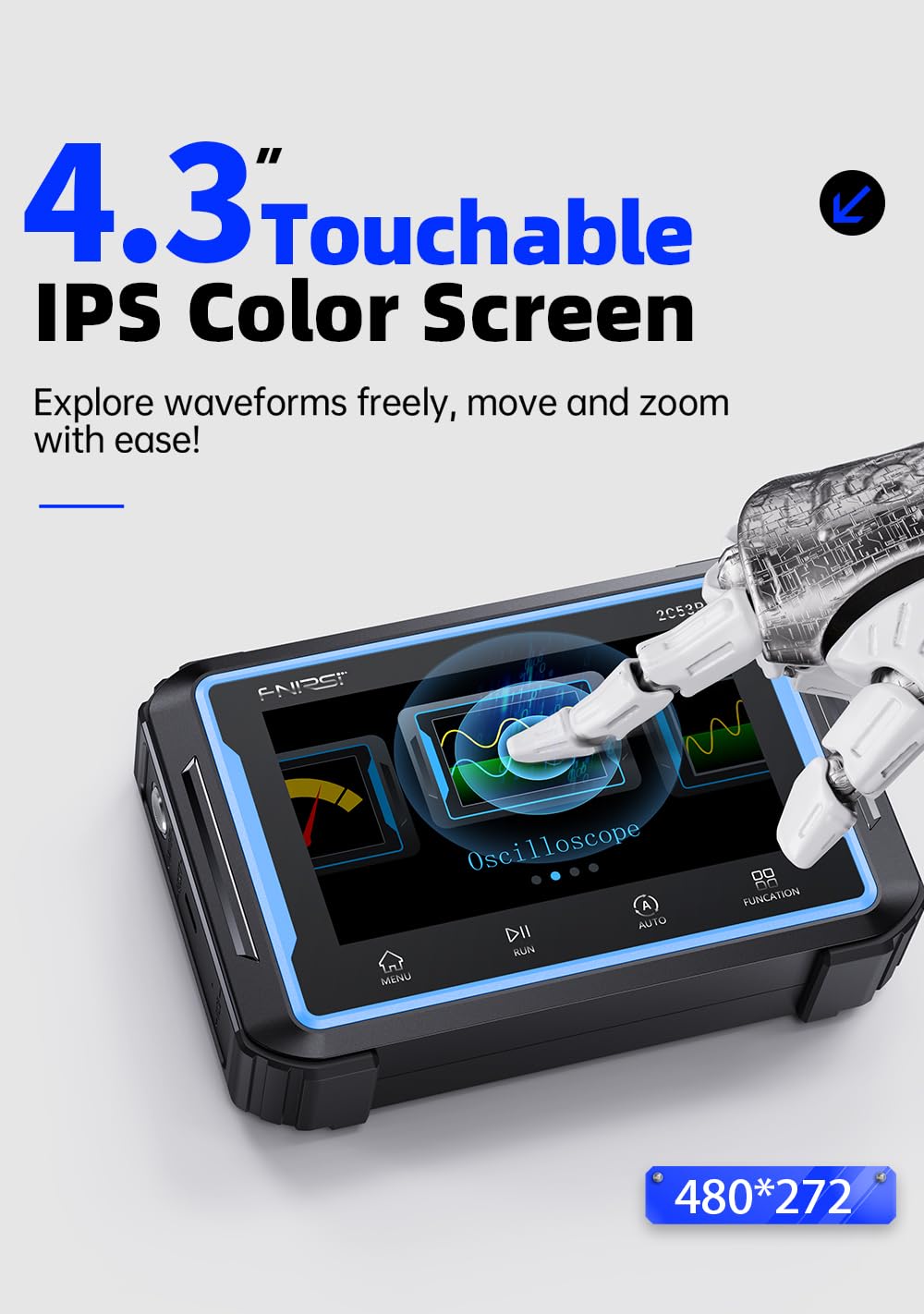

• Screen size & resolution：4.3 Inch (480*272 pixels)
• Screen material：Surface tempered glassSurface tempered glass + touch screen made of glass GLASS + IPS color screen
• BacklightBacklight brightness can be set
• Power supply：TYPE-C（5V/2A）
• Battery：4000mAh lithium battery
• Language：Chinese, English, Pyccкий, にほんご, español, Português, Deutsch, 한국인
• Product size：about 145x98x35mm
• Product net weight：about 360g

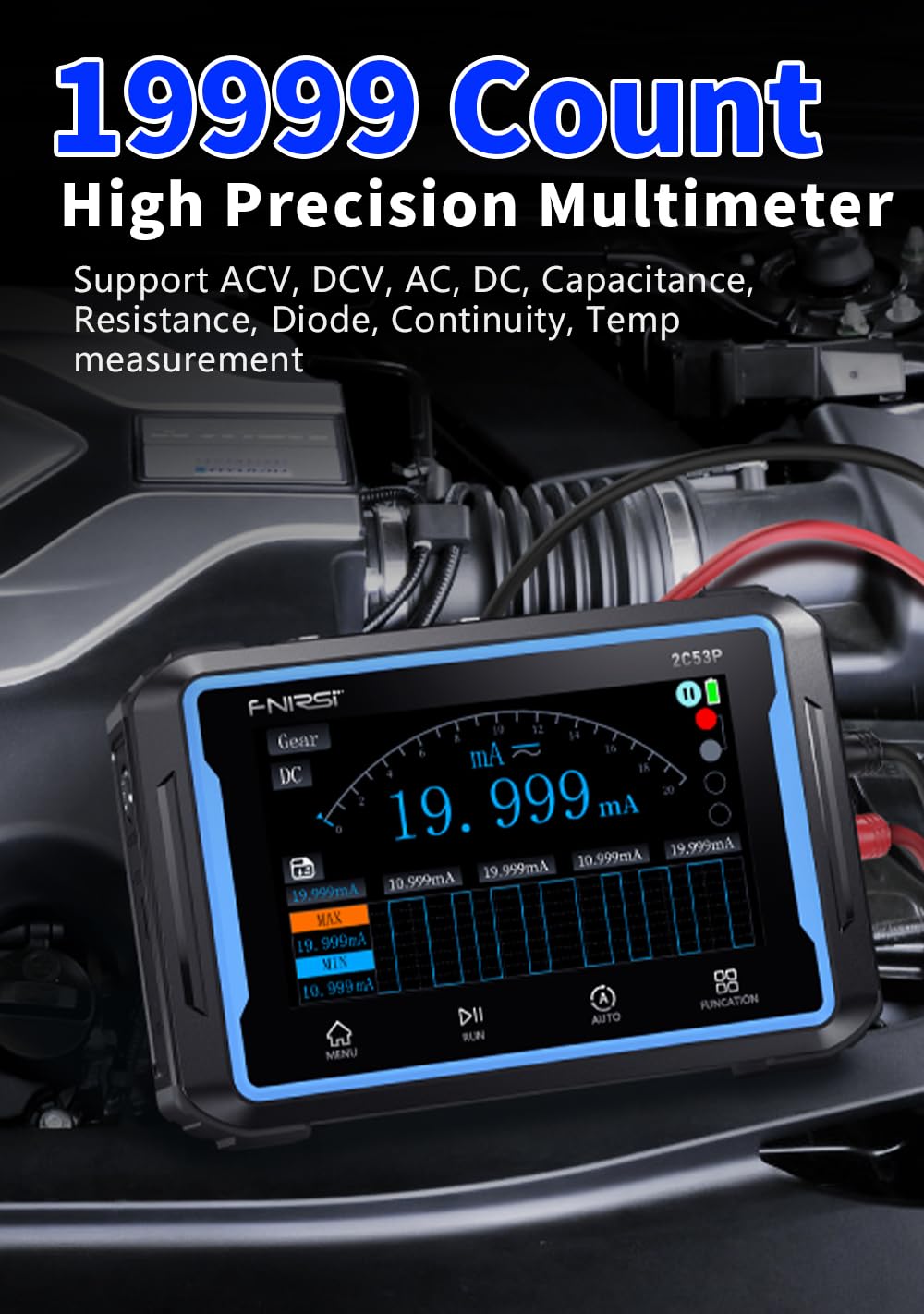

Multimeter

• DC Voltage：1.9999V/19.999V/199.99V/1000.0V
• AC voltage：1.9999V/19.999V/199.99V/750.0V
• DC current：19.999mA/199.99mA/1.9999A/9.999A
• AC current：19.999mA/199.99mA/1.9999A/9.999A
• Resistance：19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/1.9999KΩ/199.99Ω
• Capacitance：999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF
• Temperature：(-55~1300℃)/(-67~2372℉)
• Diode：Yes
• Continuity test：Yes

Signal Generator

• Channel：Single channel
• Frequency：0-10MHz（Sine wave: 10MHz, other waveforms 5MHz）
• Amplitude：0.1V-3.0V
• Square wave duty cycle: 0-100%
• Signal type：sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse

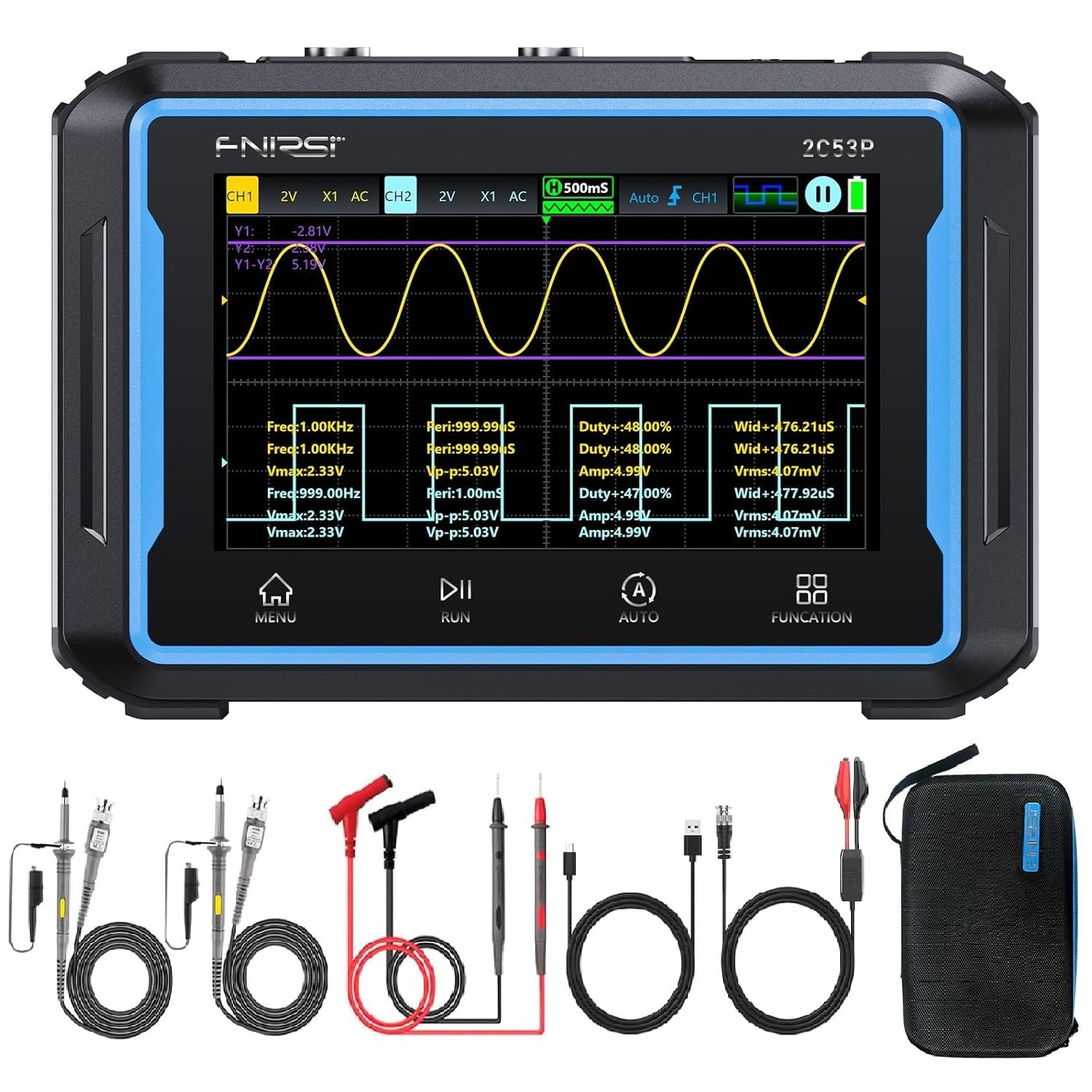

WHAT IS INLCUDED IN THE PACKAGE:

• 1. 2C53P（2CH Touchable Oscilloscope Multimeter 3in1）*1
• 2. P6100 Probe *2
• 3. Multimeter probe *1
• 4. Alligator clip probe *1
• 5. Data cable *1
• 6. Product Manual *1
• 7.Carrying bag*1

Oscilloscope

• Channel：Dual channel
• Analog bandwidth：50MHz
• Real-time sample rate：250MSa/s
• Storage depth：Up to 64kByte
• Input mpedance：1MΩ
• Time base range：10ns/div - 10s/div
• Vertical sensitivity：10mv/div - 10v/div
• Vertical resolution8 bits
• Maximum measured voltage：±400V
• Probe：1x/10x
• torage space：13M
• Bandwidth limitSupport 20MHz limit

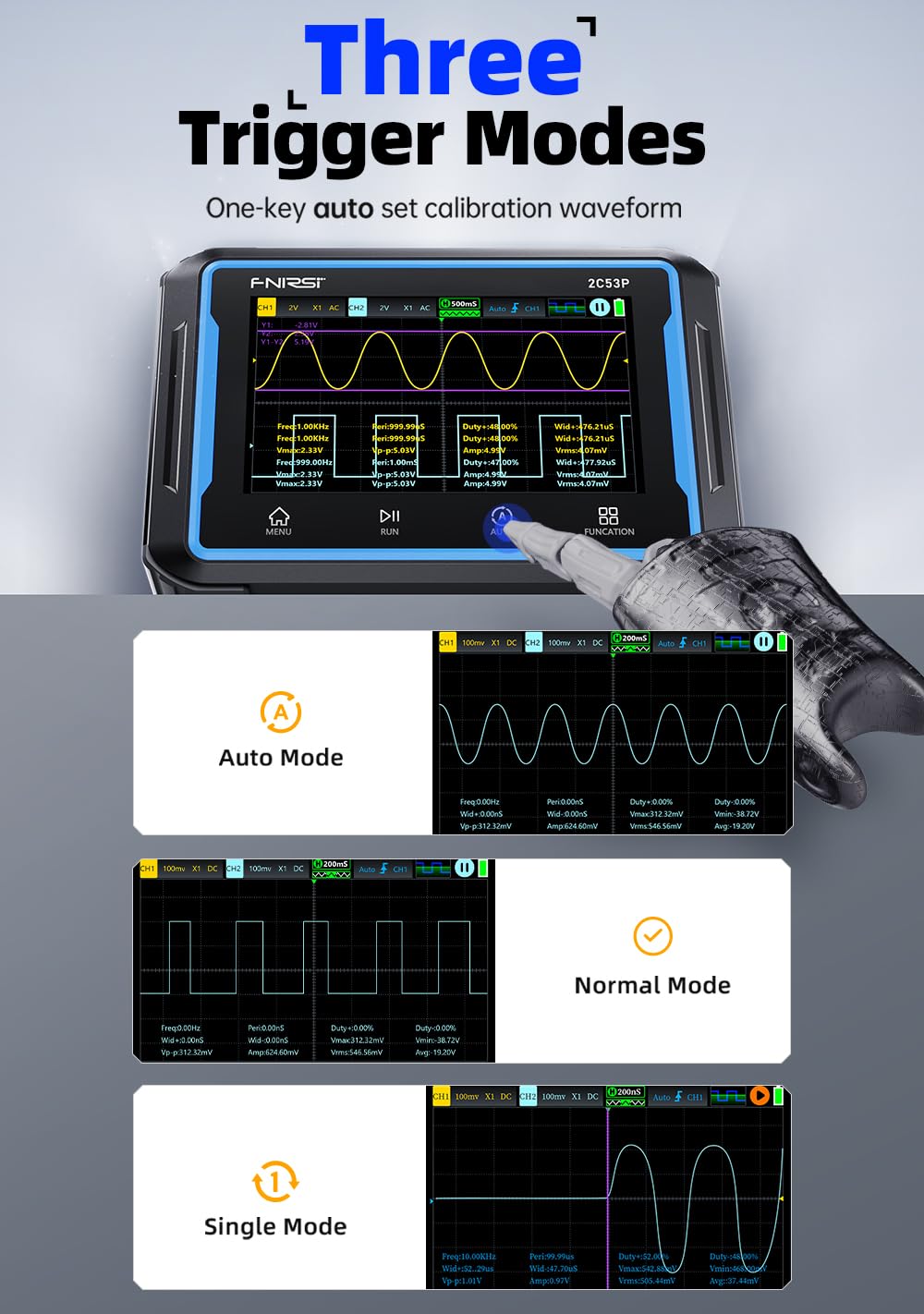

• Trigger mode：AUTO/Normal/Single
• Trigger type：Rising edge, Falling edge
• Trigger level range：8 cells (positive/negative)
• Waveform display mode：XY/YT/Scroll
• Coupling method：AC/DC

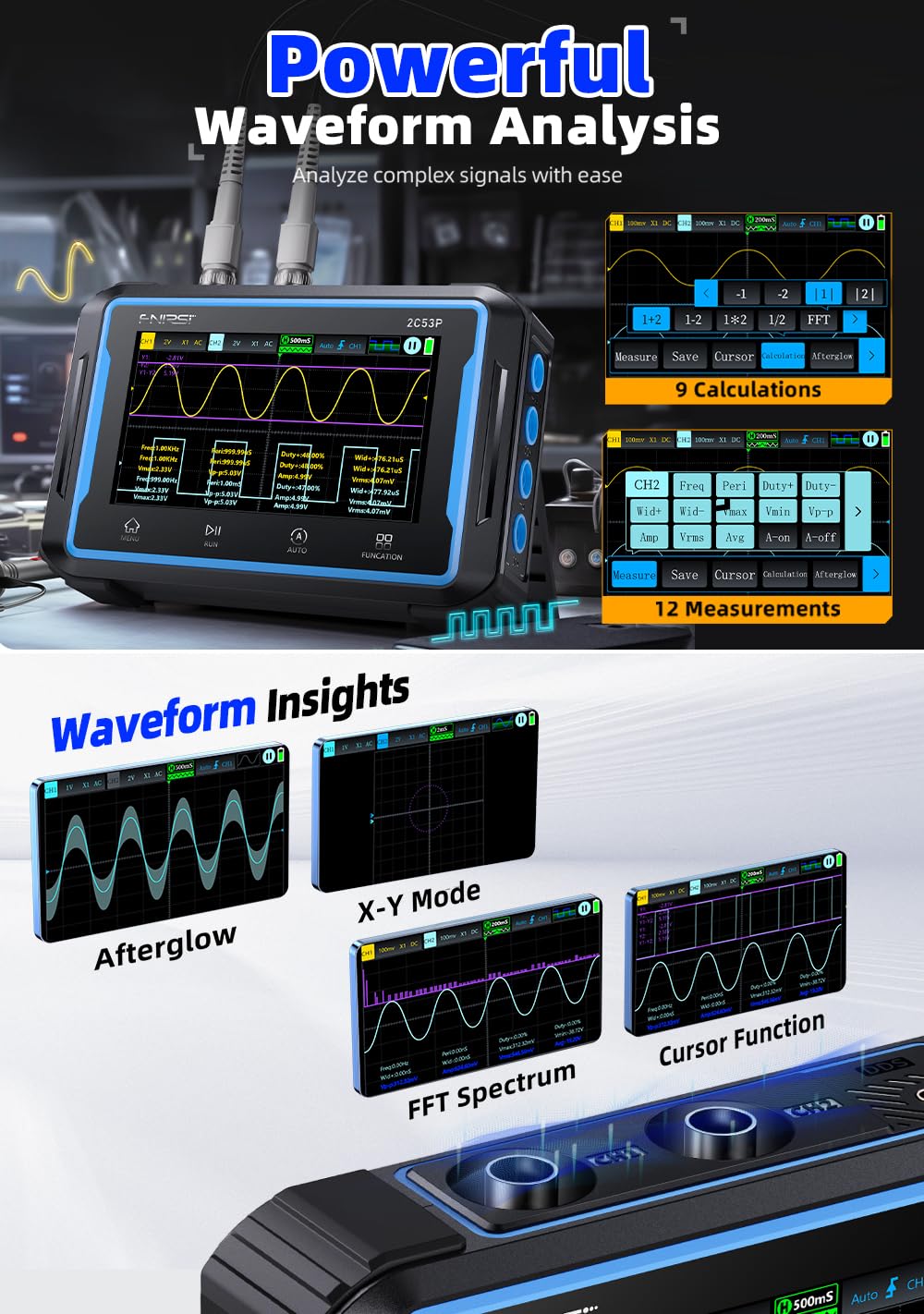

• Measured data：Period, frequency, peak-to-peak value, maximum value, minimum value, Average value, effective value, amplitude, duty cycle, pulse width
• Math alculations：1+2、1-2、1*2、1/2、-1、-2、|1|、|2|、FFT
• Save waveform screenshot：Yes
• Export waveform images from computer：Yes
