Huepar B03CG Professional 3D Laser Level 360° Self Leveling with 50" Tripod, 3x360 Niveau Laser Tool, 3 Plane Cross Line Lazer Leveler Green Beam, Type-C Charging Port Included
Huepar B03CG Professional 3D Laser Level 360° Self Leveling with 50" Tripod, 3x360 Niveau Laser Tool, 3 Plane Cross Line Lazer Leveler Green Beam, Type-C Charging Port Included
Specifications for Huepar 3D Green Laser Level B03CG:
- Projection: 3 x 360° Green Laser Lines
- Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
- Laser Wavelength: 505-520nm
- Horizontal / Vertical Accuracy: ±1/9 Inch at 33 Feet
- Leveling / Compensation Range: ±4°
- Leveling Time: 3s
- Working Distance: 85 feet (300 LUX), 200 feet with Huepar Laser Detector LR-5RG / LR-6RG
- Power Source: 3.7V / 5200mAh Li-ion Battery
- Reference Operating Time: About 8 hours with all laser beams on
- Mount Size: 1/4"-20
- IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
- Operation Temperature Range: Between -10℃ and +50℃
- Storage Temperature Range: Between -20℃ and +70℃

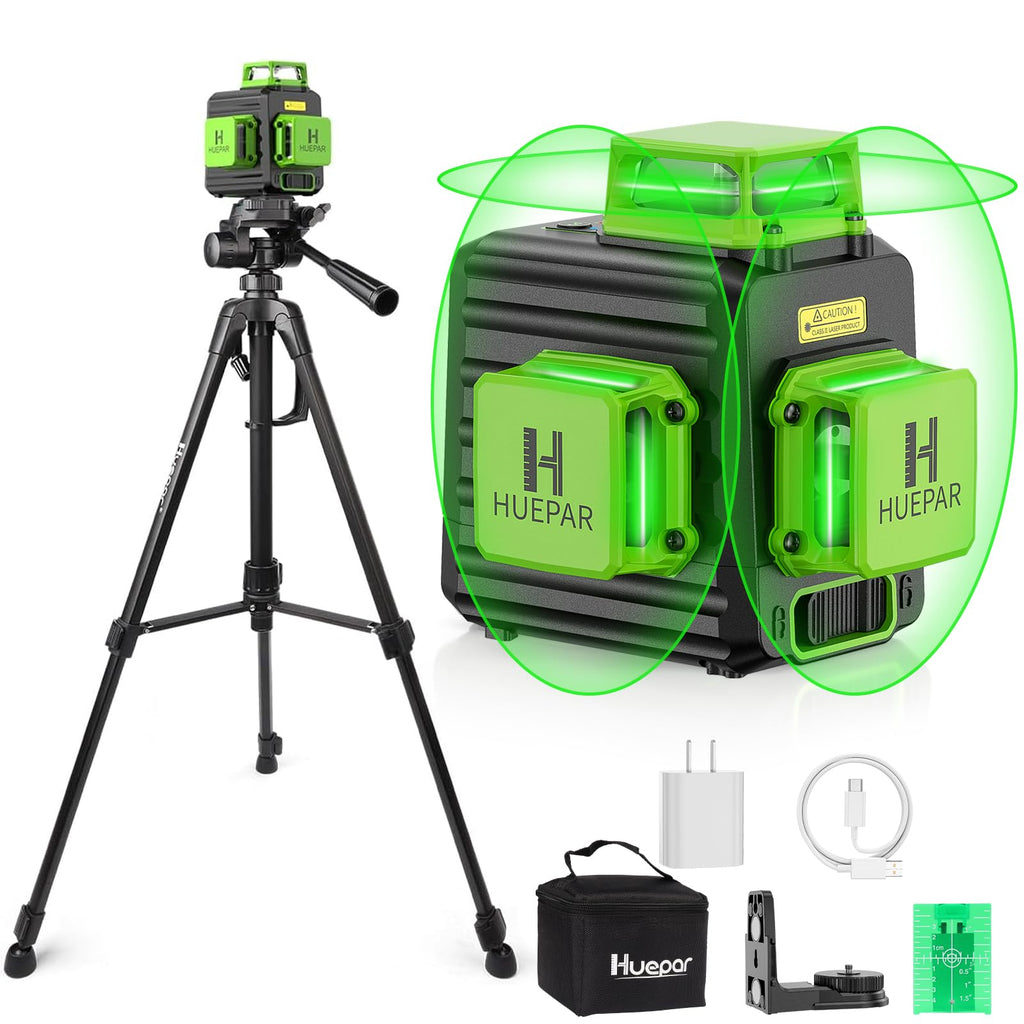

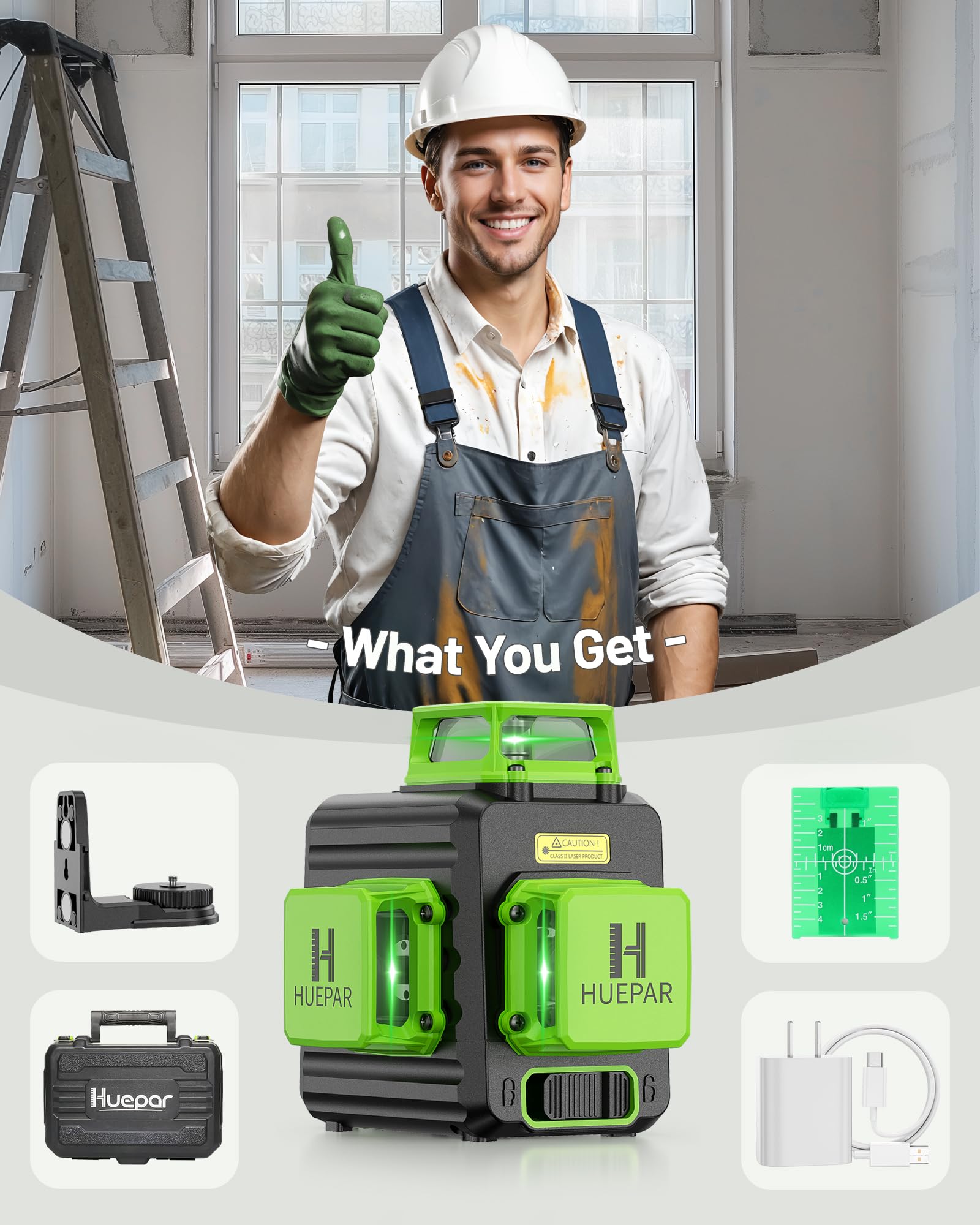

Package Contents:
- 1 x Huepar B03CG Laser Level
- 1 x TPD12 Tripod
- 1 x Rechargeable Lithium Battery 3.7V / 5200mAh
- 1 x Type-C Power Cord
- 1 x Power Adapter

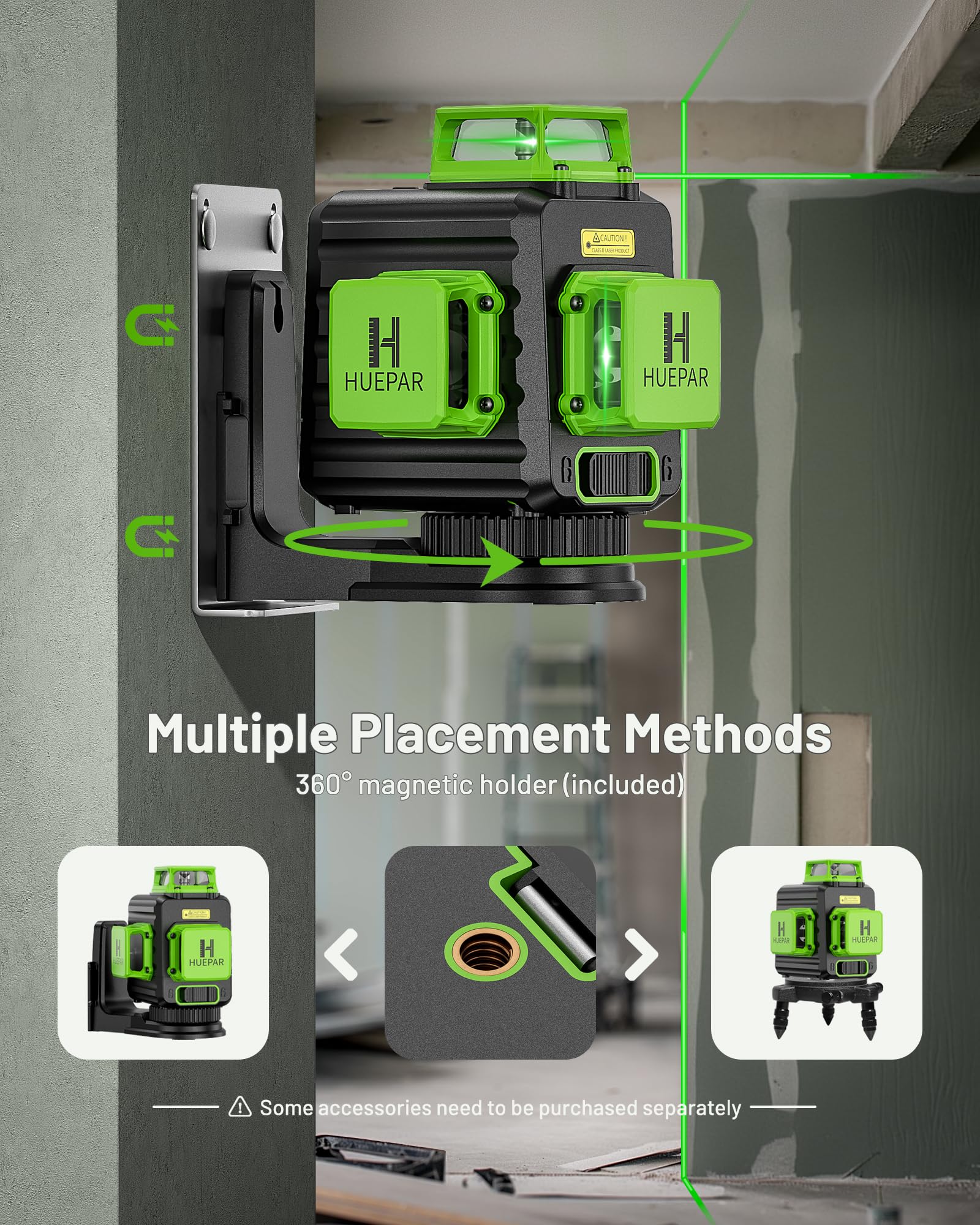

- 1 x 360° Magnetic Pivoting Base
- 1 x Green Laser Target Plate
- 1 x Multilingual User Manual
- 1 x Portable Pouch
- 1 x Carrying Bag
3D Laser Level with the 47" lightweight tripod
This laser tool set includes a 3x360 cross-line laser level and a 47" compact tripod with adjustable legs.
The tripod helps the 3D self-leveling laser level adjust its fixed height and angle, making it easier for the laser level to cover the floor, walls and ceiling around the room.

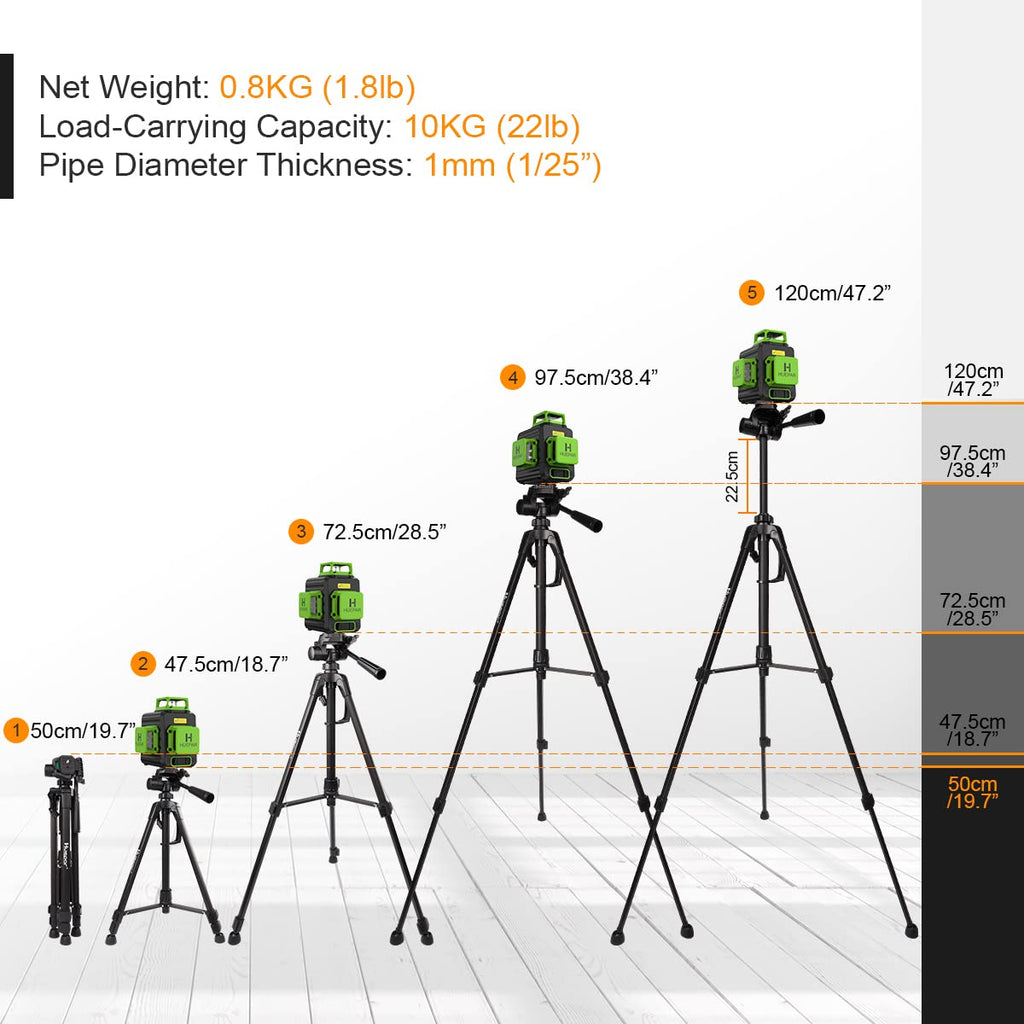

This tripod has a height range of 0.47m-1.2m and a load of 10kg.
The tripod also provides a 360° rotating panorama, allowing you to rotate at any angle horizontally and vertically.

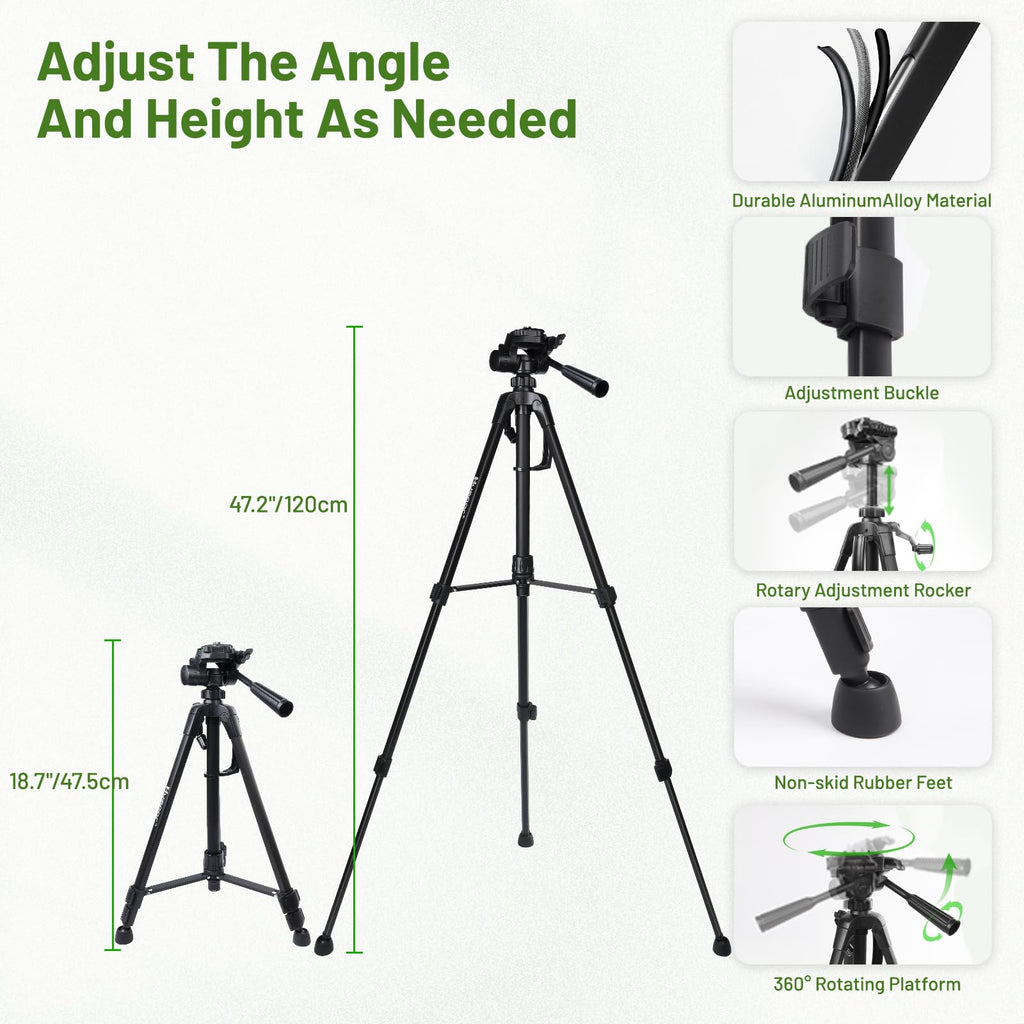

Rubber Anti-slip Feet & Height Adjustment Buckle
Can be adjustable in three sections with the height adjustment buckle.
Stable rubber feet provide superior stability in a variety of terrains.

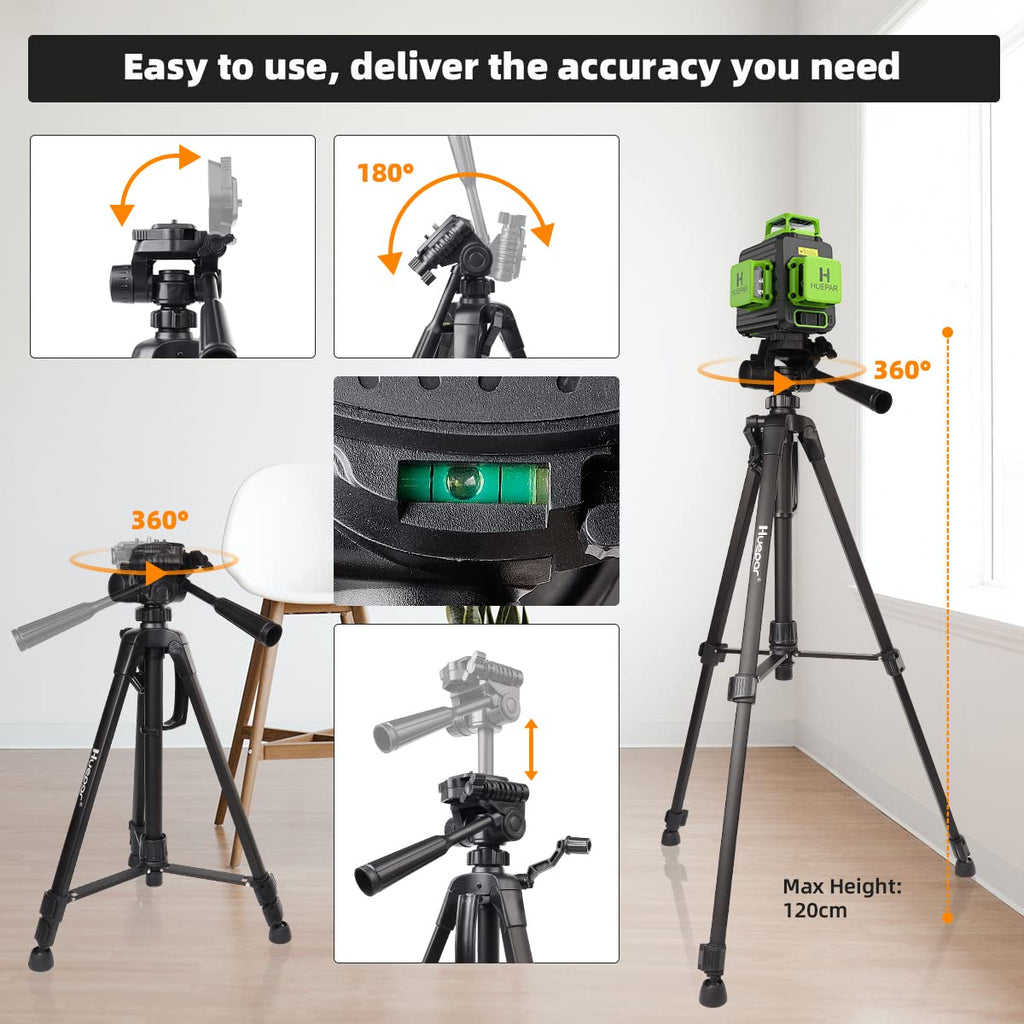

Equipped a stable smooth 3-way pan head can freely adjustable angles for 360° panoramic shooting.
Quick shoe type head, 2 Bubbles
We adopt a quick shoe that can be installed and removed with a single touch on the pan head part.
There are 2 built-in bubble levels on the tripod, even if the tripod is placed on uneven ground, the angle of the tripod can be adjusted with the help of the bubble level.

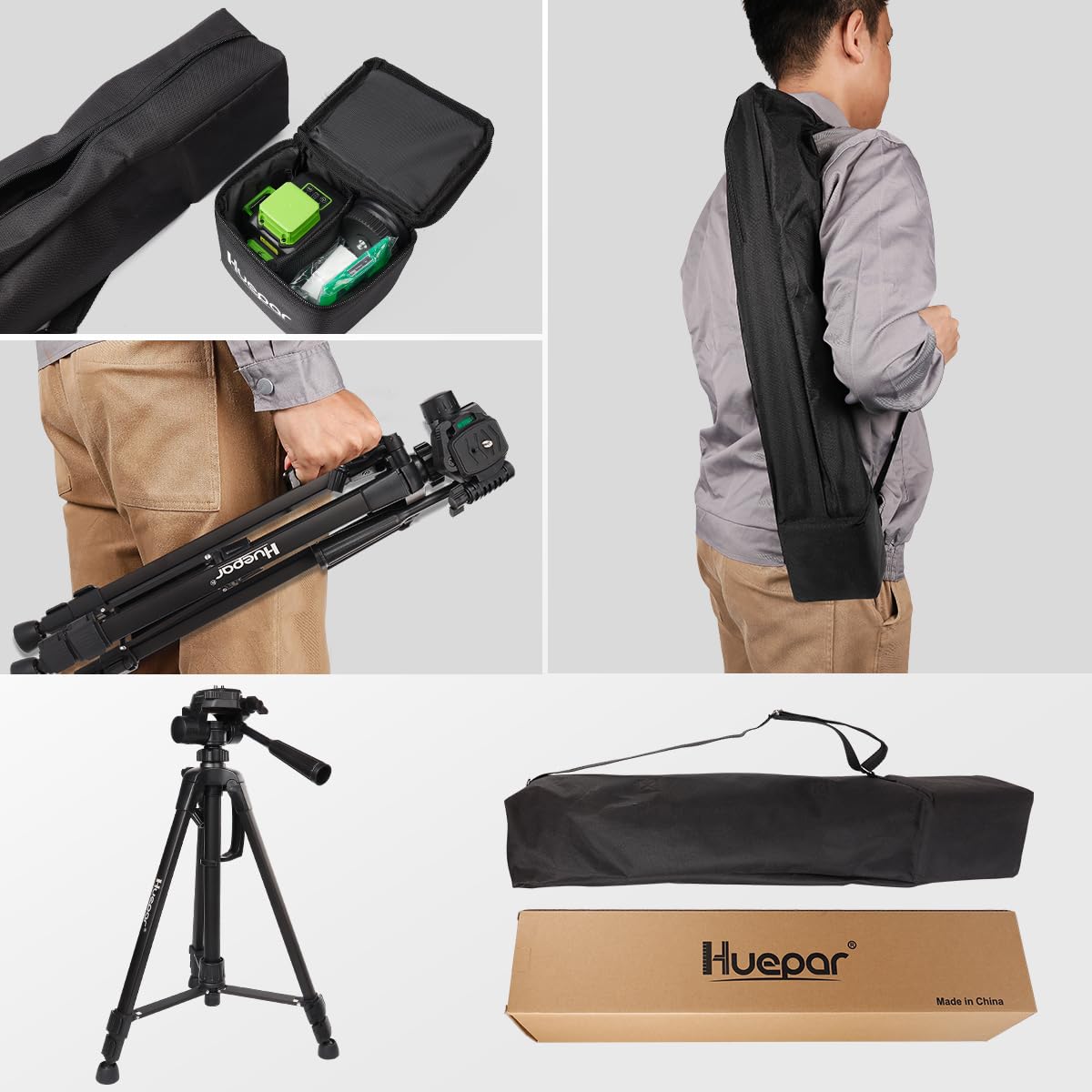

Compact and Portable
The B03CG laser level set has a separate portable pouch.
The handle on the tripod allows you to carry it without difficulty when working on the job site and constantly move around.
A soft carrying bag with an adjustable shoulder strap enables you to carry the tripod and laser level comfortably over your shoulder or keep it clean.

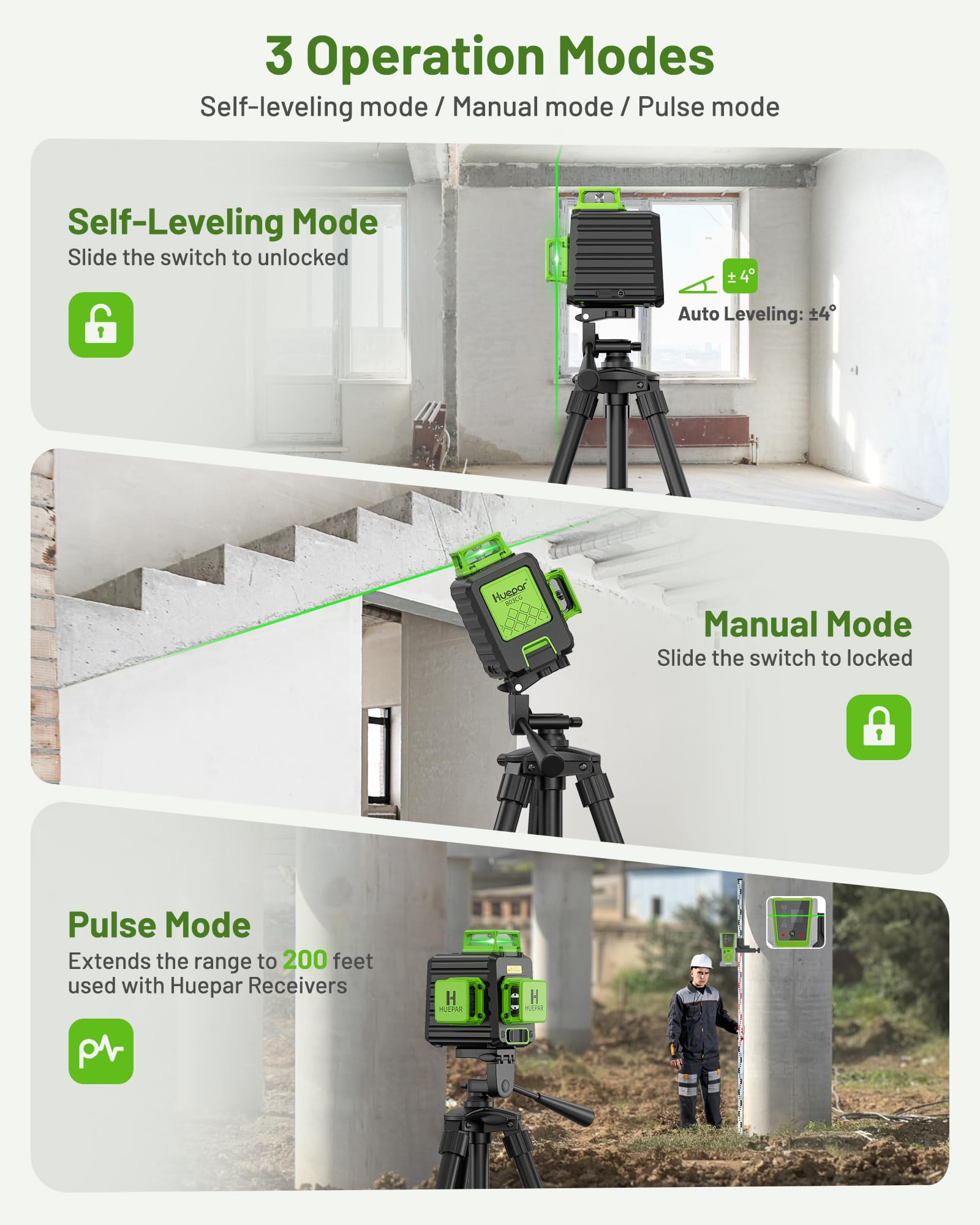

Smart Pendulum - Self-leveling Mode & Manual Mode
Self-leveling Mode:
When the laser tool is switched to the unlocked position, the self-leveling mode is enabled.
The laser beam will flash when the tool is beyond self-leveling range ± 4°.
Manual / Tilt Mode:
When the pendulum locked, the laser tool can be placed for alignment at any angle.
The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

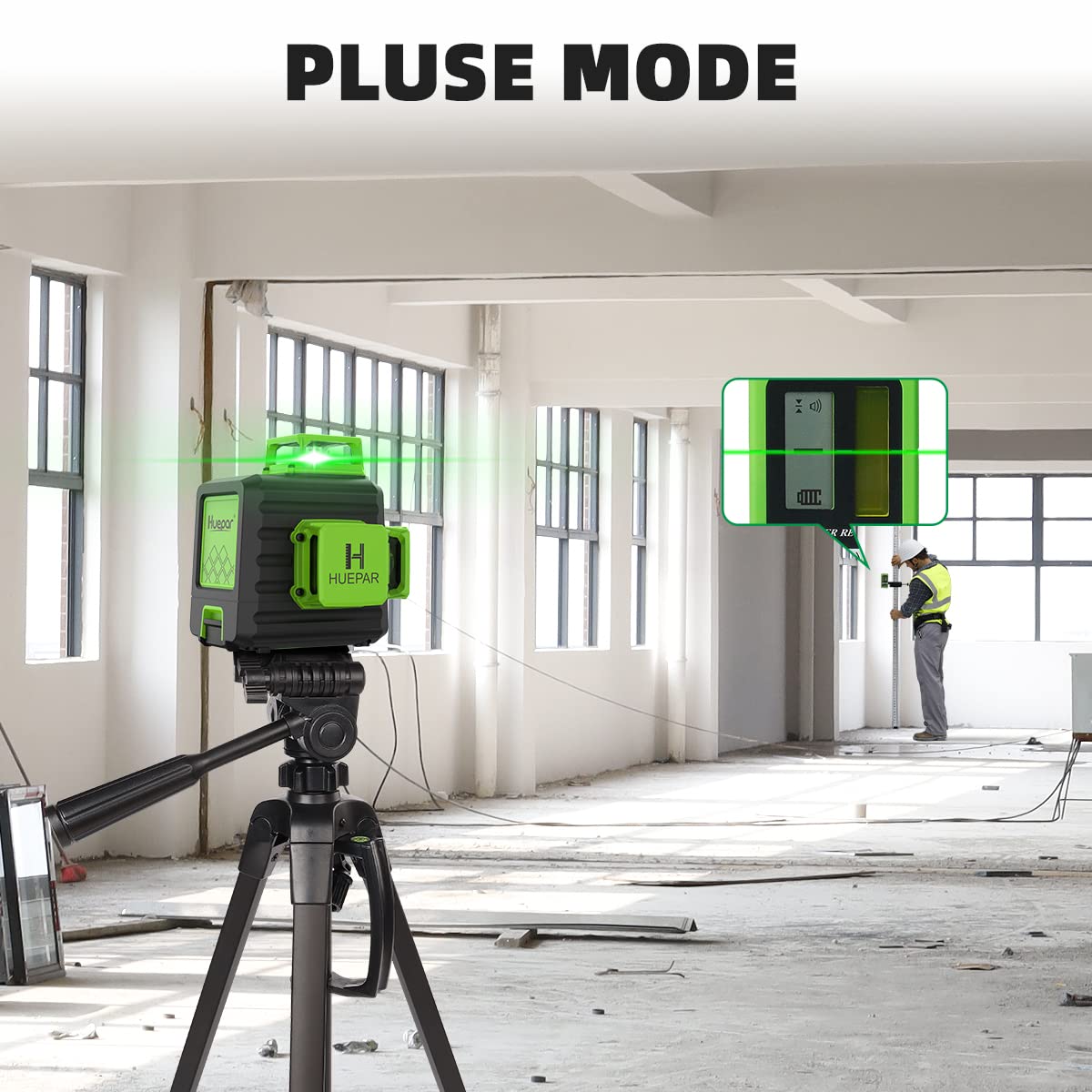

Power-saving Outdoor Pulse Mode
Turn ON the pulse mode: After power ON, short press "P" button to switch ON/OFF the pulse mode.
Pulse mode extends the working range up to 200 feet in brighter working conditions when using with Huepar Line Laser Detector
When the pulse mode is activated, the laser beams are dimmer, the pressure on eyes is less when working at close range, and the working time can be appropriately extended
It is compatible with Huepar LR-6RG / LR-5RG Line Laser Receiver (need to purchase separately) only.
Keep the pulse mode on when using with a receiver.
Type-C Charging Port
This laser tool utilizes the included large capacity of 3.7V / 5200mAh lithium battery and provides up to 8 hours of running time.
The lithium battery with the Type-C charging port can be charged separately.
Direct input charging: When taking out the battery, the laser tool can be used at the job site by plugged in.
Four battery indicators on keypad allow users to know the current battery volume.
Charging protection helps prevent from overcharging.
- 5 Years WTY: Huepar is committed to provide Best-in-Class service to our customers- 24/7 Service Team（response in 24hrs & solution in 48hrs). Lifetime Customer Service, Worldwide Maintenance Center( your product can be repaired or replaced faster ). Huepar 5-Year WTY for All 3D/4D Models! Device: 5 Years | Battery: 2 Years (non-human damage). Year 1: Free Replace a brand-new full set — device, battery, accessories — no hassle. Years 2-5: Free replacement with refurbished or equivalent for any non-repairable — Our Sustainability Promise
- 3x360 cross line laser level and a 47" compact tripod with adjustable legs. The tripod helps the 3D self-leveling laser level adjust its fixed height and angle, making it easier for the laser level to cover the floor, walls and ceiling around the room

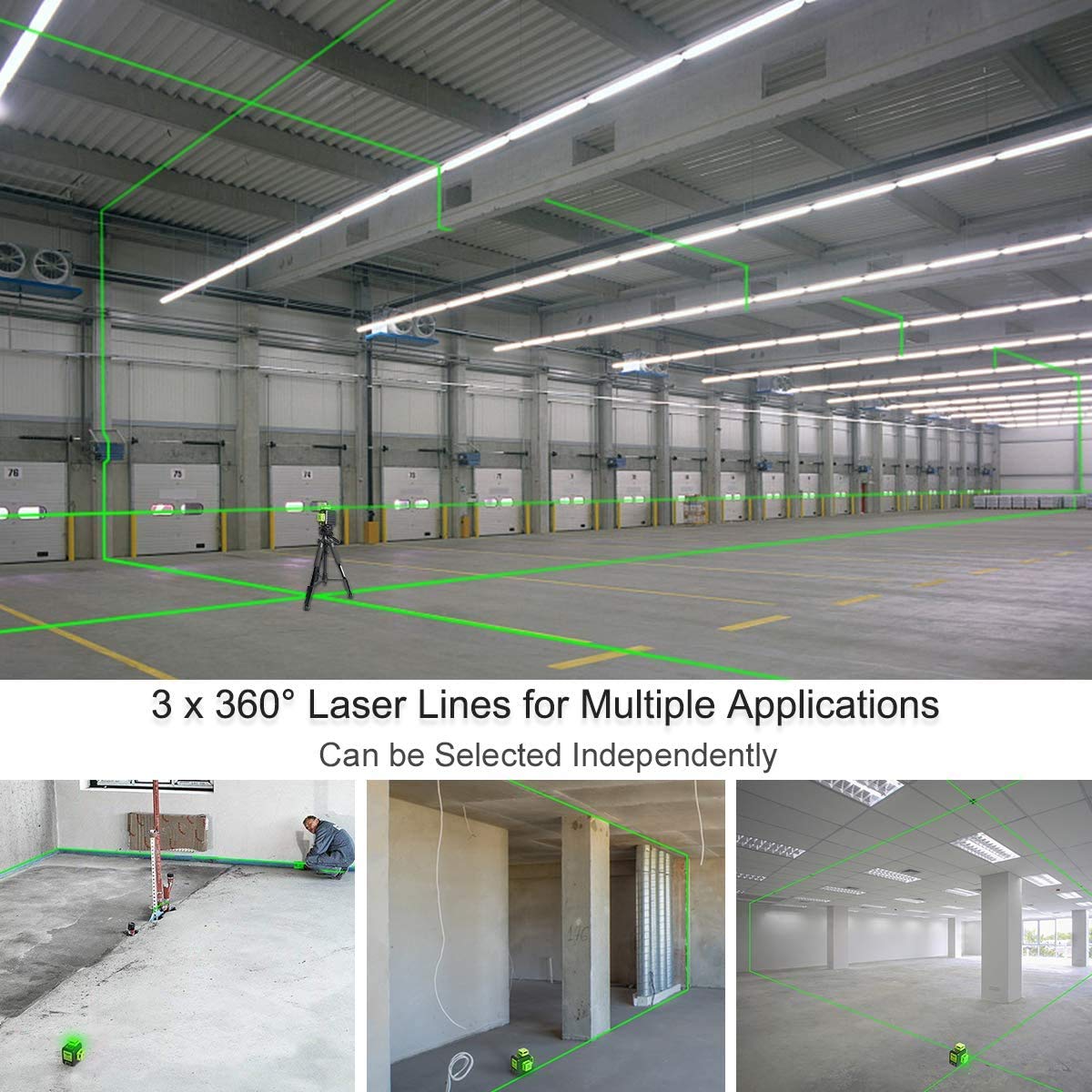

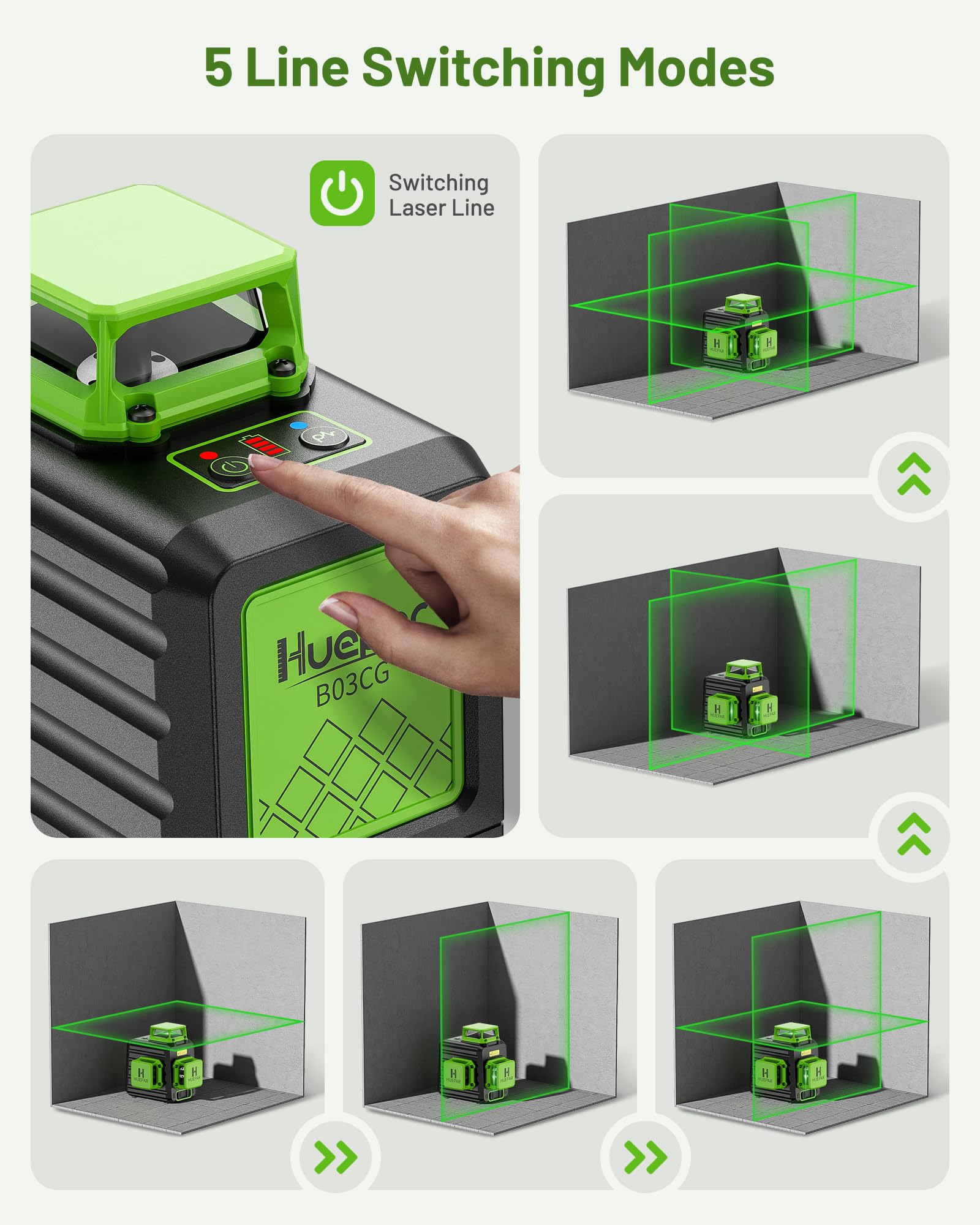

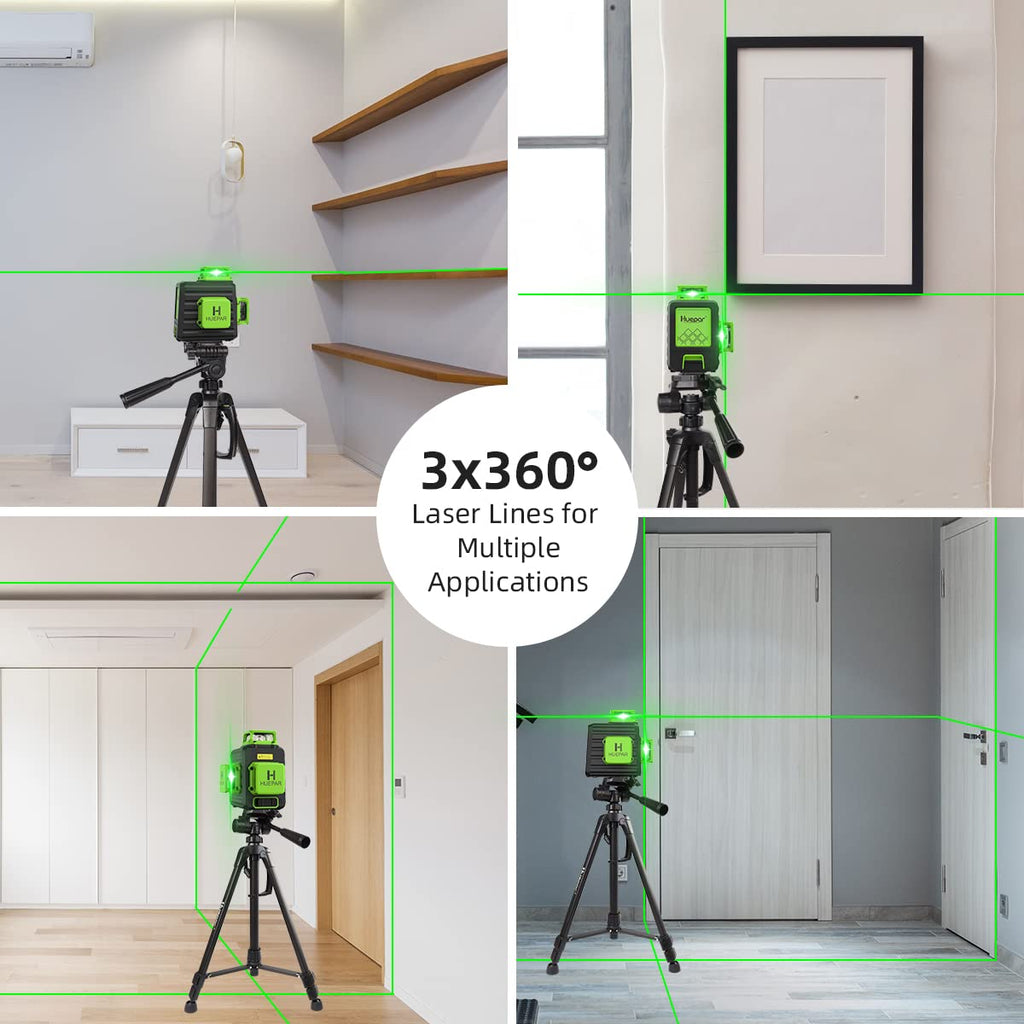

- Fully Layout with 3 x 360° Line Lasers: One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, ceiling all around the room. The three laser lines can be selected individually depends on job site applications. With our smart pendulum system, this laser level tool self-levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle
- Fully Layout with 3 x 360° Line Lasers: One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, ceiling all around the room. The three laser lines can be selected individually depends on job site applications. With our smart pendulum system, this laser level tool self-levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle
- Brighter Green Laser & Outdoor Pulse Mode: This cross line laser adopts the bright Osram's green laser unit, which is resistant to temperature changes and has higher stability. With a working range up to 85 feet (300LUX) of accuracy within ±1/9 Inch at 33 Feet. The outdoor pulse mode can be activated by pressing the Pulse Mode Button, allowing to extend the laser range up to 200 feet with Huepar line laser letector
- Compact and Portable: The B03CG laser level set has a separate carrying pouch that can be taken out at any time. The handle on the tripod allows you to carry it easily. A soft carrying bag with an adjustable shoulder strap enables you to carry the tripod and laser level comfortably over your shoulder or keep it clean
| Brand | Huepar |
| Material | Acrylonitrile Butadiene Styrene, Thermoplastic Elastomers |
| Colour | Green |
| Style | 3D Laser Level with Tripod |
| Operation mode | Self Leveling/ Manual Leveling/ Pulse Mode |
| Unit count | 1.00 Set |
| Level Measurement Units | inches, feet |
| Manufacturer | Huepar |
| Number of Items | 1 |
| Level Measurement Type | laser |
