INTENDED USE

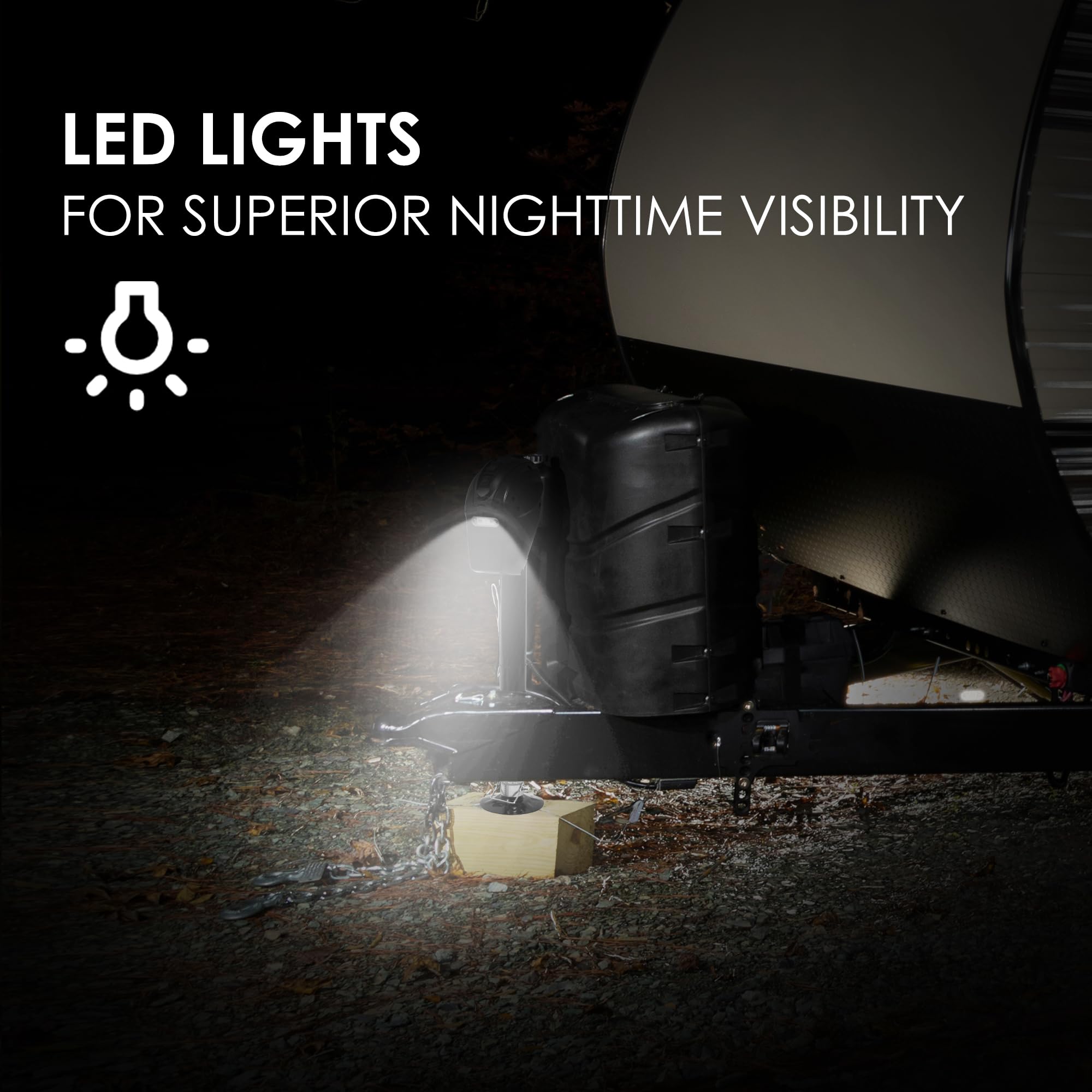

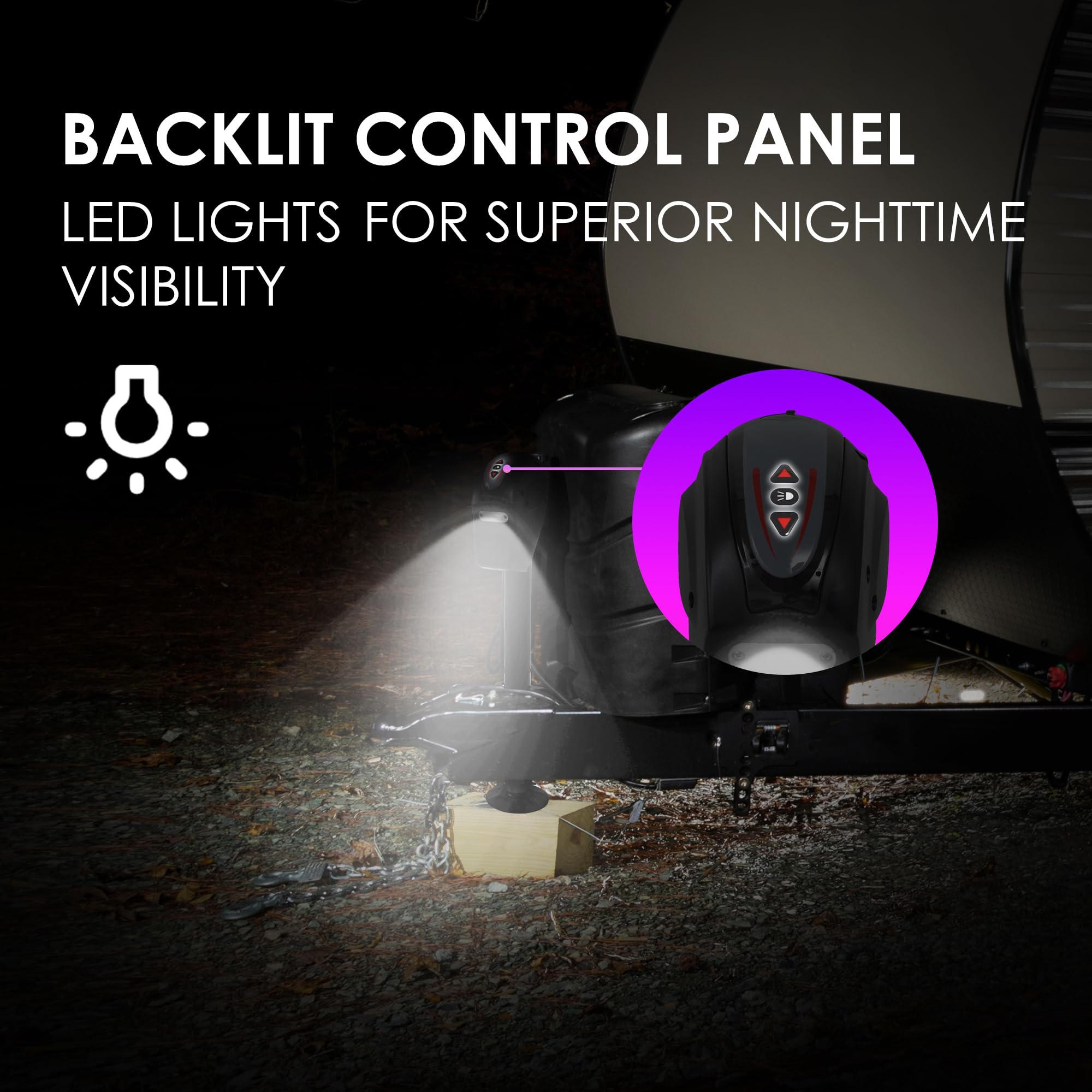

This electric trailer tongue jack is a 12V motor-driven jack that makes coupling and uncoupling from the hitch on travel trailers and boat trailers an easier operation. New industrial design cover is extremely waterproof. Improved LEDs shine down onto your ball and coupler where light is needed the most.

JACK USE AND CARE

Do not modify the jack in any way.
Always check for damaged or worn out parts before using the jack.
Do not force the trailer jack.
Never attempt to adjust the drop leg when there is any load on the jack.

12 VOLT POWER JACK BY POLESTAR

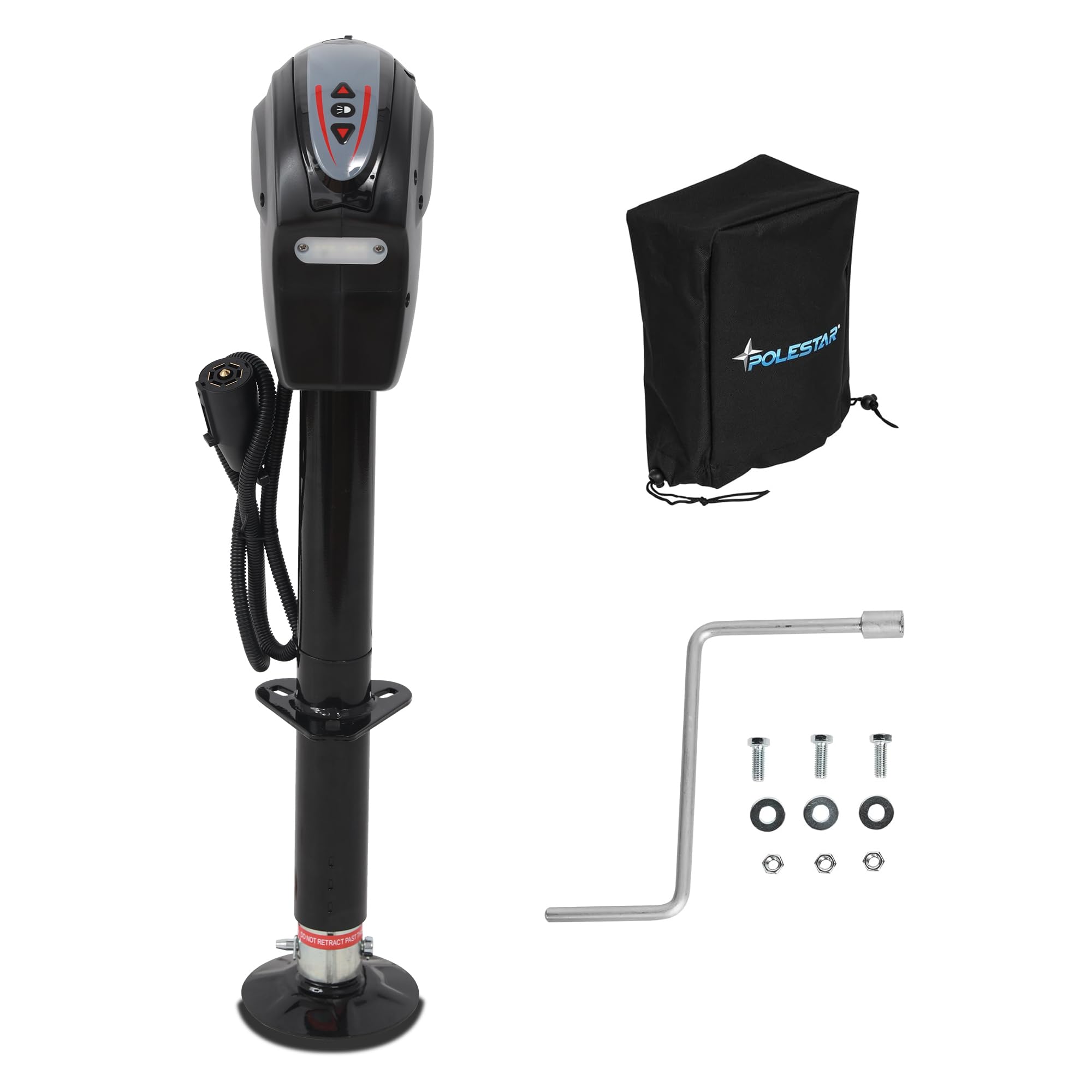

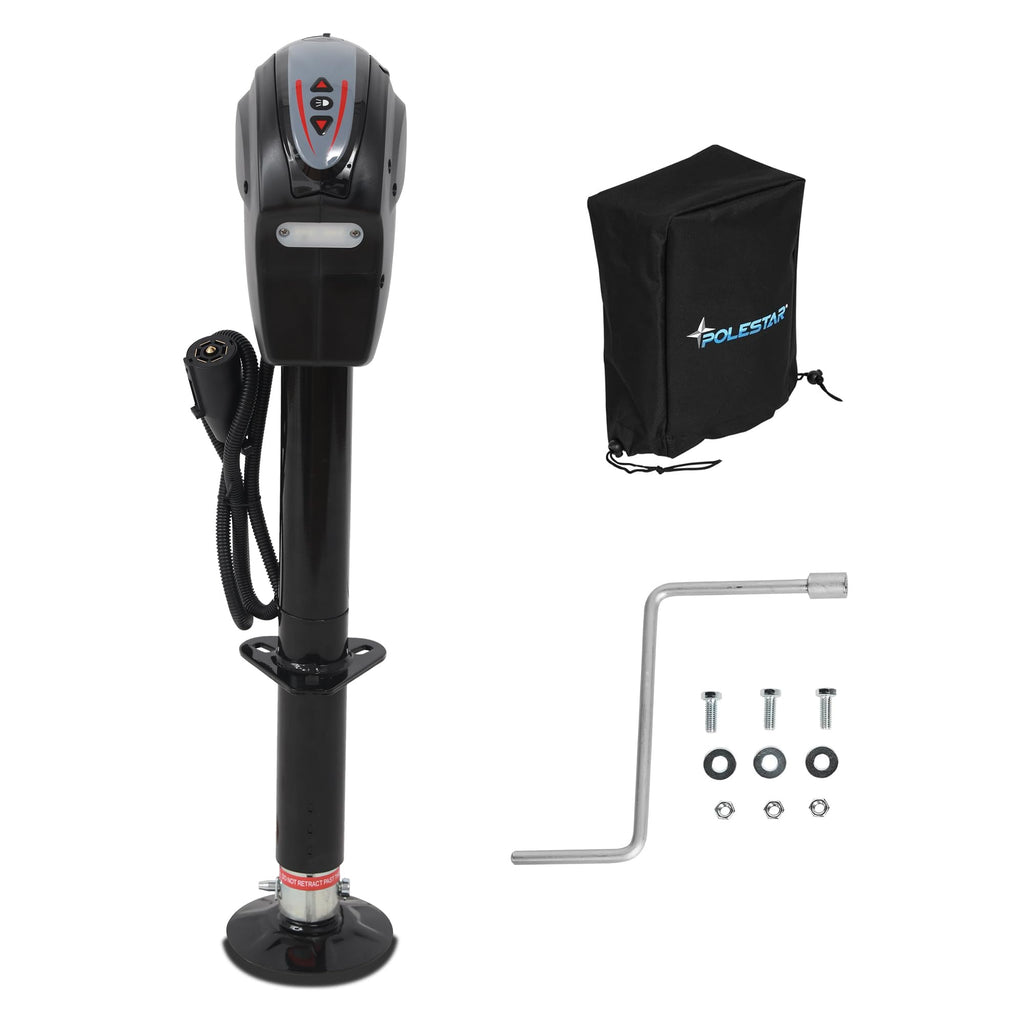

Components of Kit and Tools Required

Three Grade 5, 1in. Long, 3/8in.-16 UNC Bolts ( included)
Three 3/8in. Flat Washers (included)
7/16 in. Wrench (owner supplied, not included)
Torque Wrench (owner supplied, not included)
Wire Cutters (owner supplied, not included)
Wire Strippers (owner supplied, not included)
Crimpers or Soldering Iron (owner supplied, not included)

HARD-WIRE CONNECTION

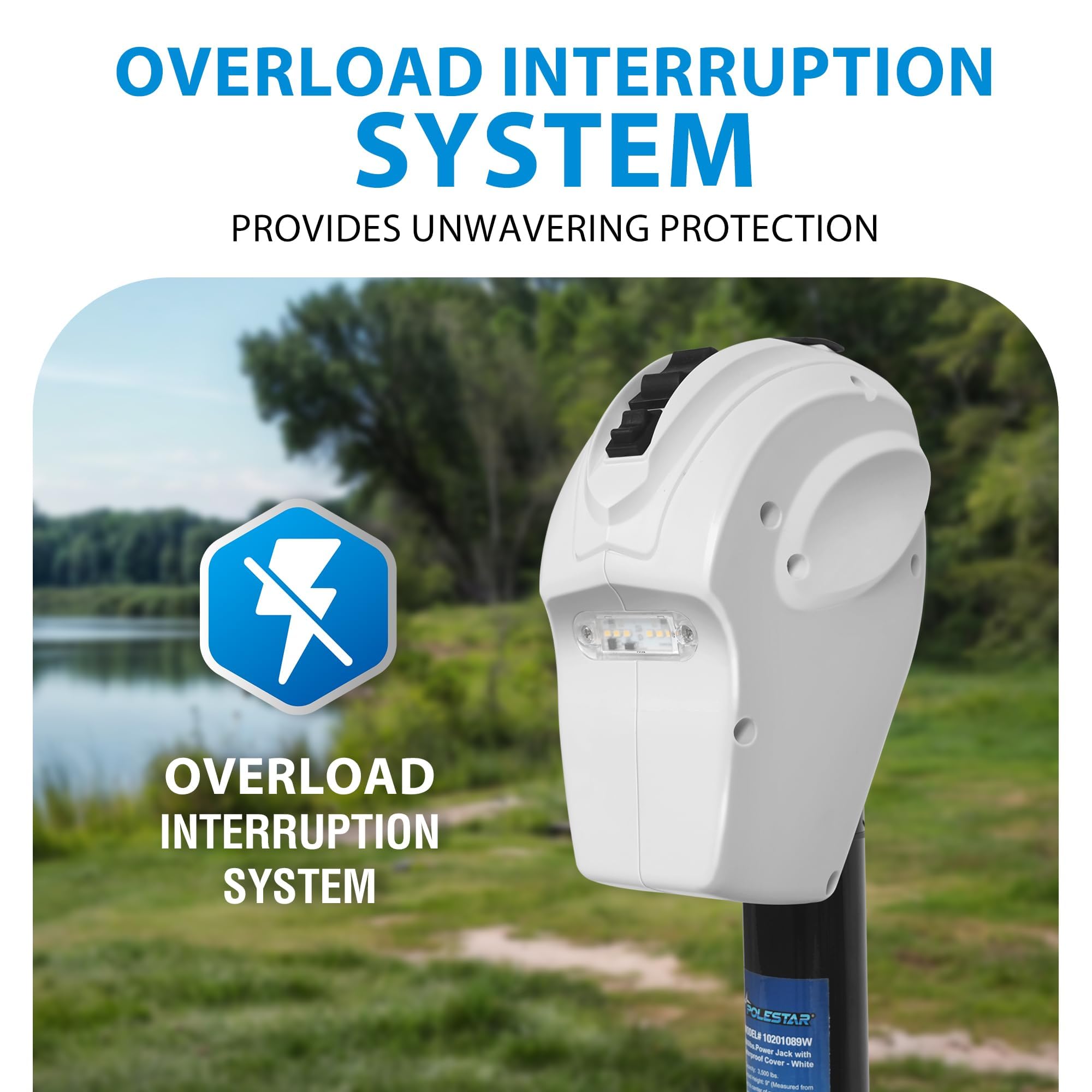

Connect the BLACK wire lead from the jack directly to the positive (+) terminal of the battery or junction box. This unit has a built-in circuit breaker which automatically trips and resets if the amperage is too high. Now connect the WHITE ground wire to the negative (-) battery terminal or to the trailer frame.

JACK

MAINTENANCE

The Electric A-frame jack motor is sealed and maintenance-free. It is important to maintain the electrical system including the battery and charger (not included).

Ensure all connections are tight and free of corrosion and that the jack is properly grounded.

Make sure the battery is fully charged prior to use.

OPERATION INSTRUCTIONS

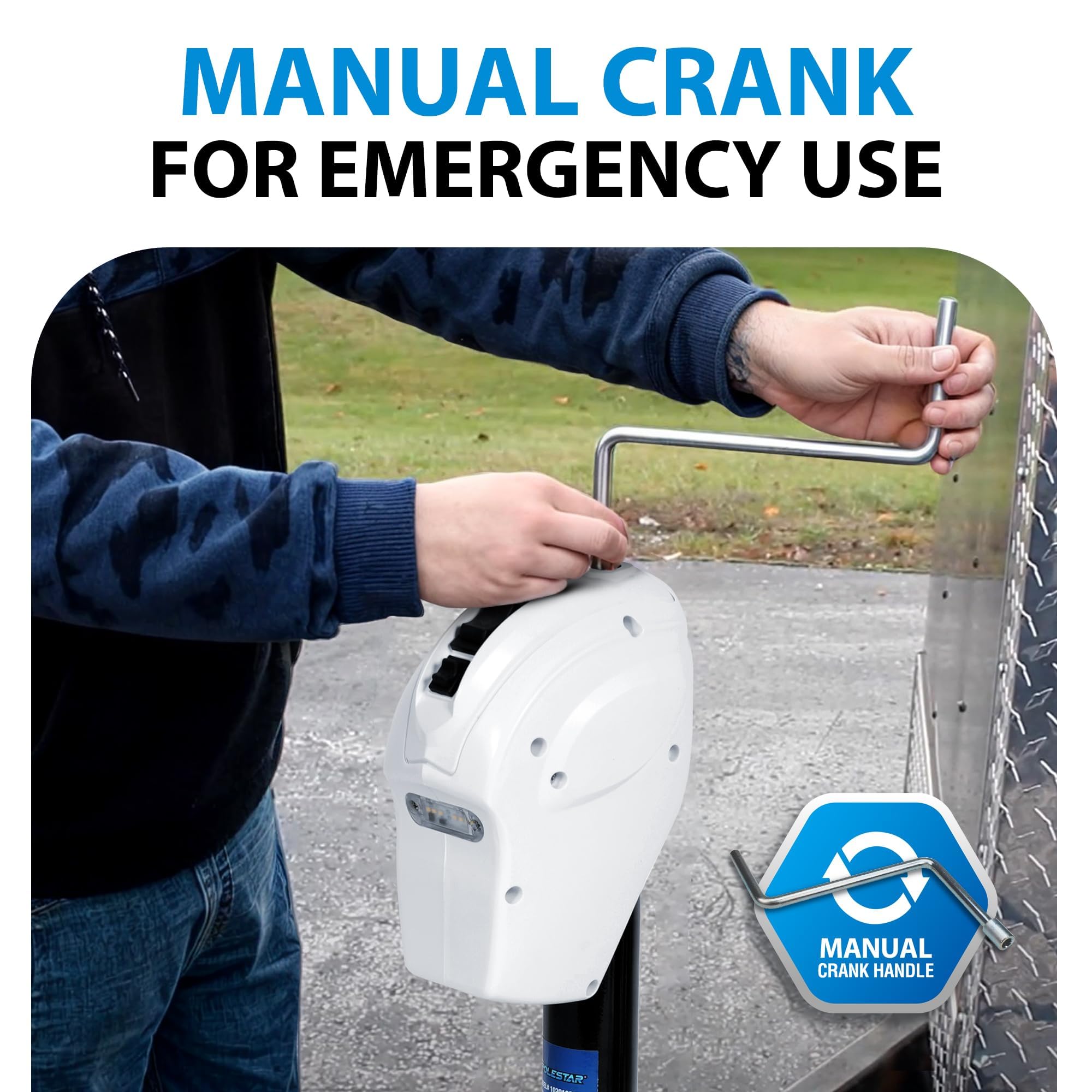

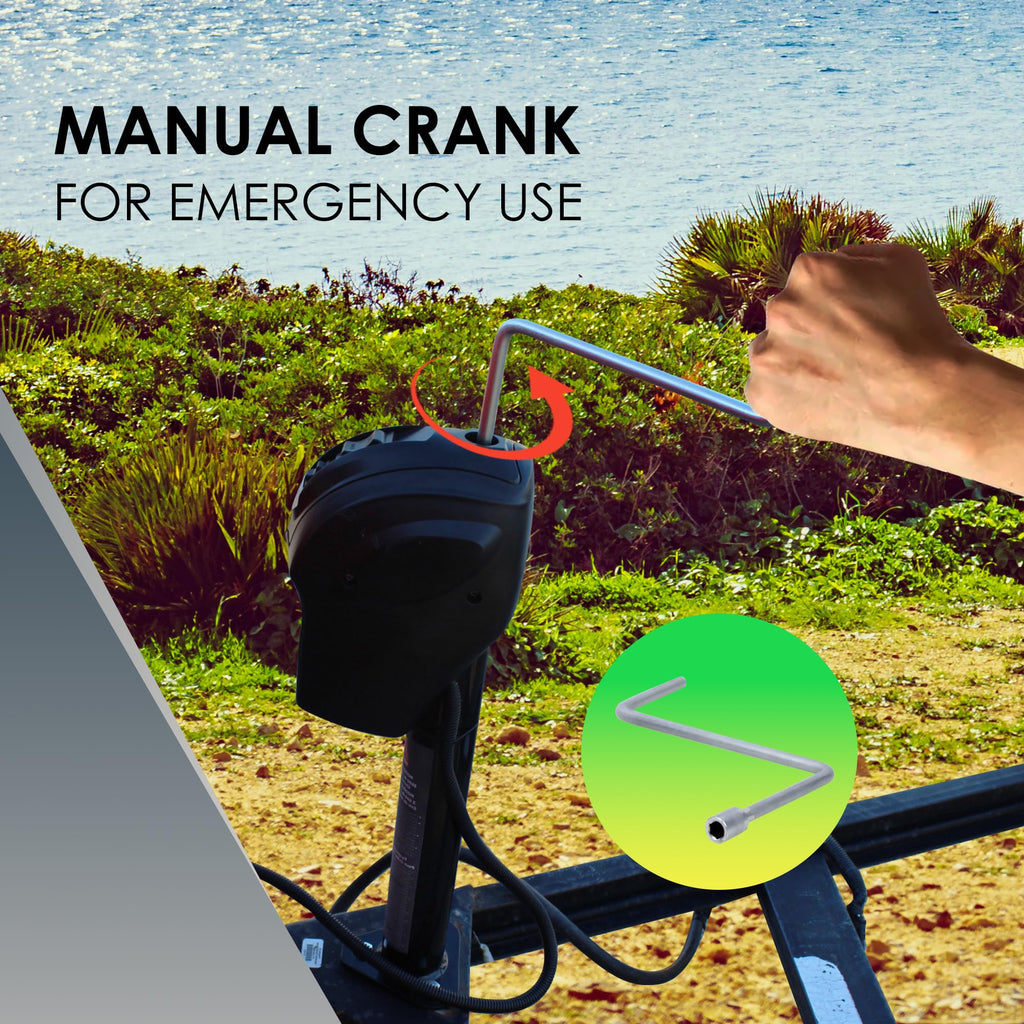

If for any reason electric power is lost, disconnect the jack from the power source.

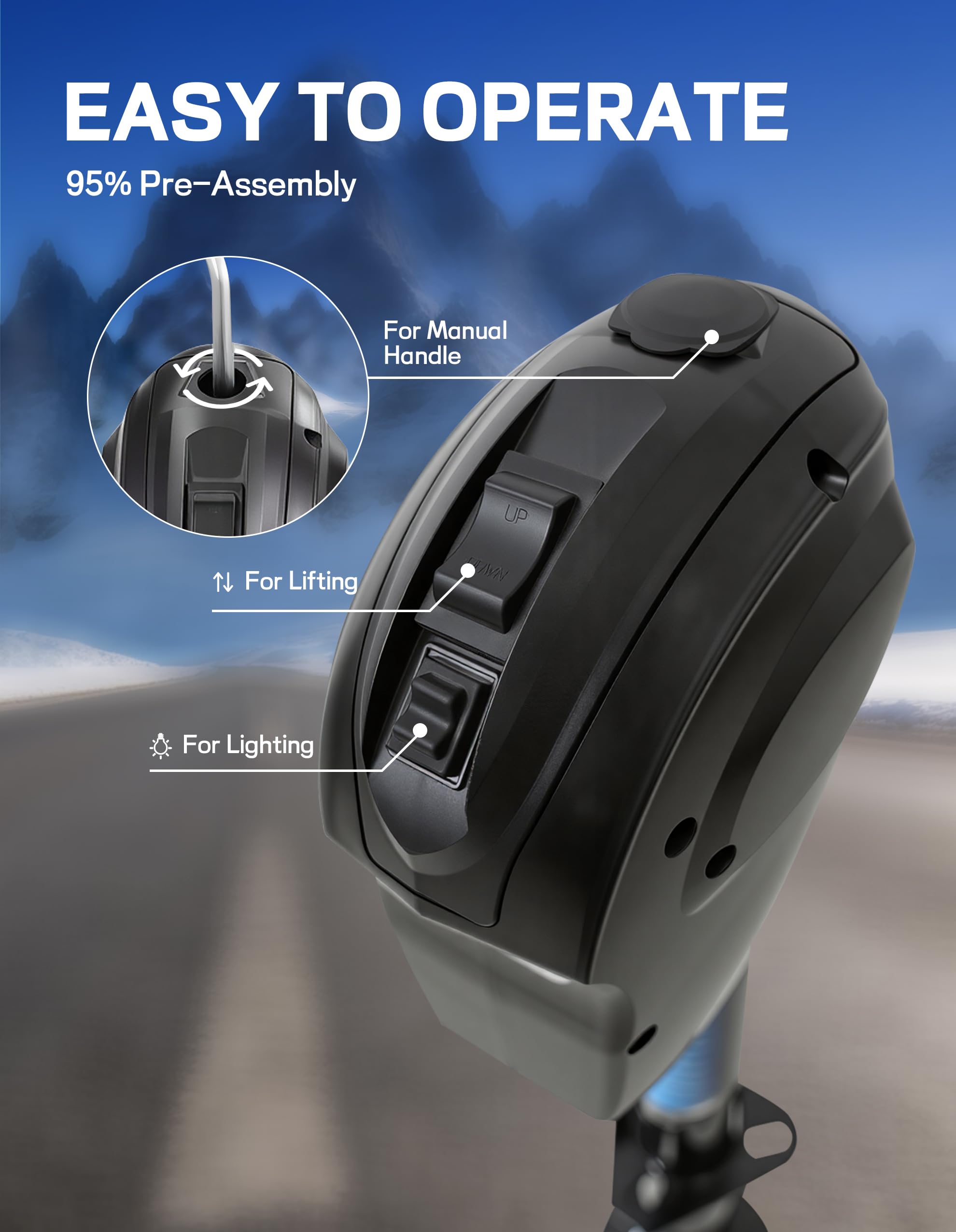

Remove the rubber access cover on the top of the jack.

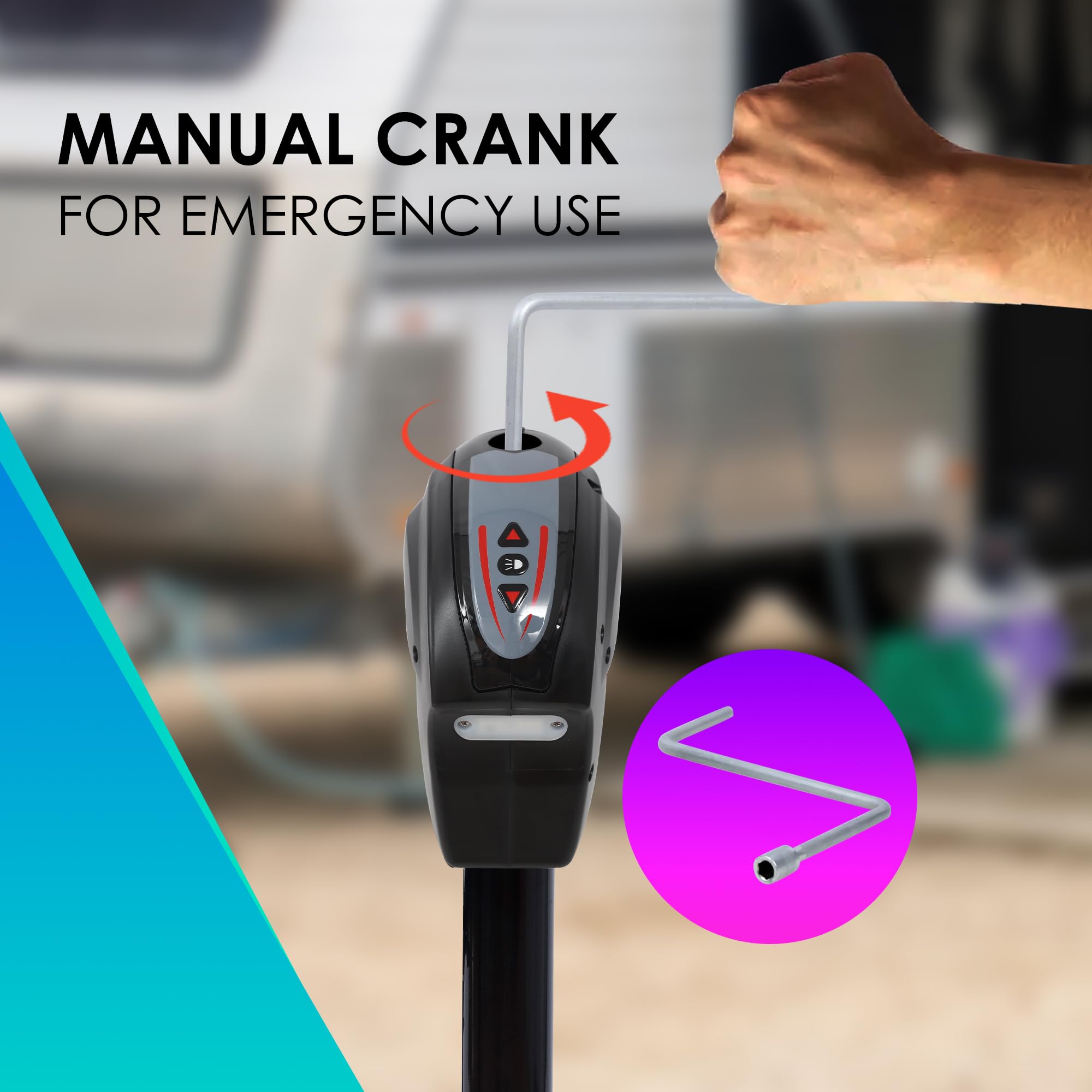

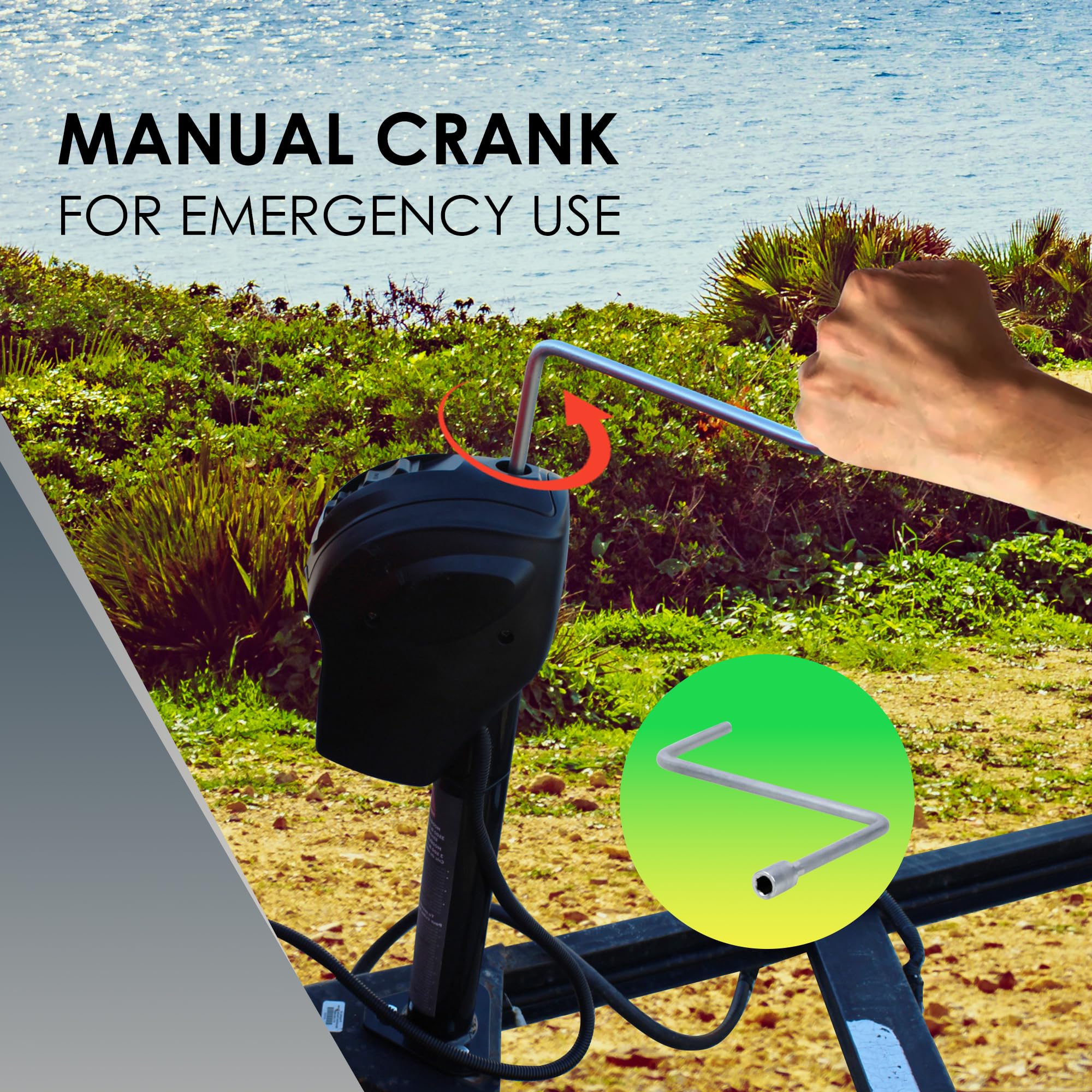

Insert the manual crank handle into the access hole on the top of the jack, engaging the drive screw.

Rotate the manual crank handle counter-clockwise to extend the jack, and clockwise to retract it.

A frame

The trailer jack fits A frame mounting holes. Great for RV, 5th wheels, any A-frame trailer and camper.

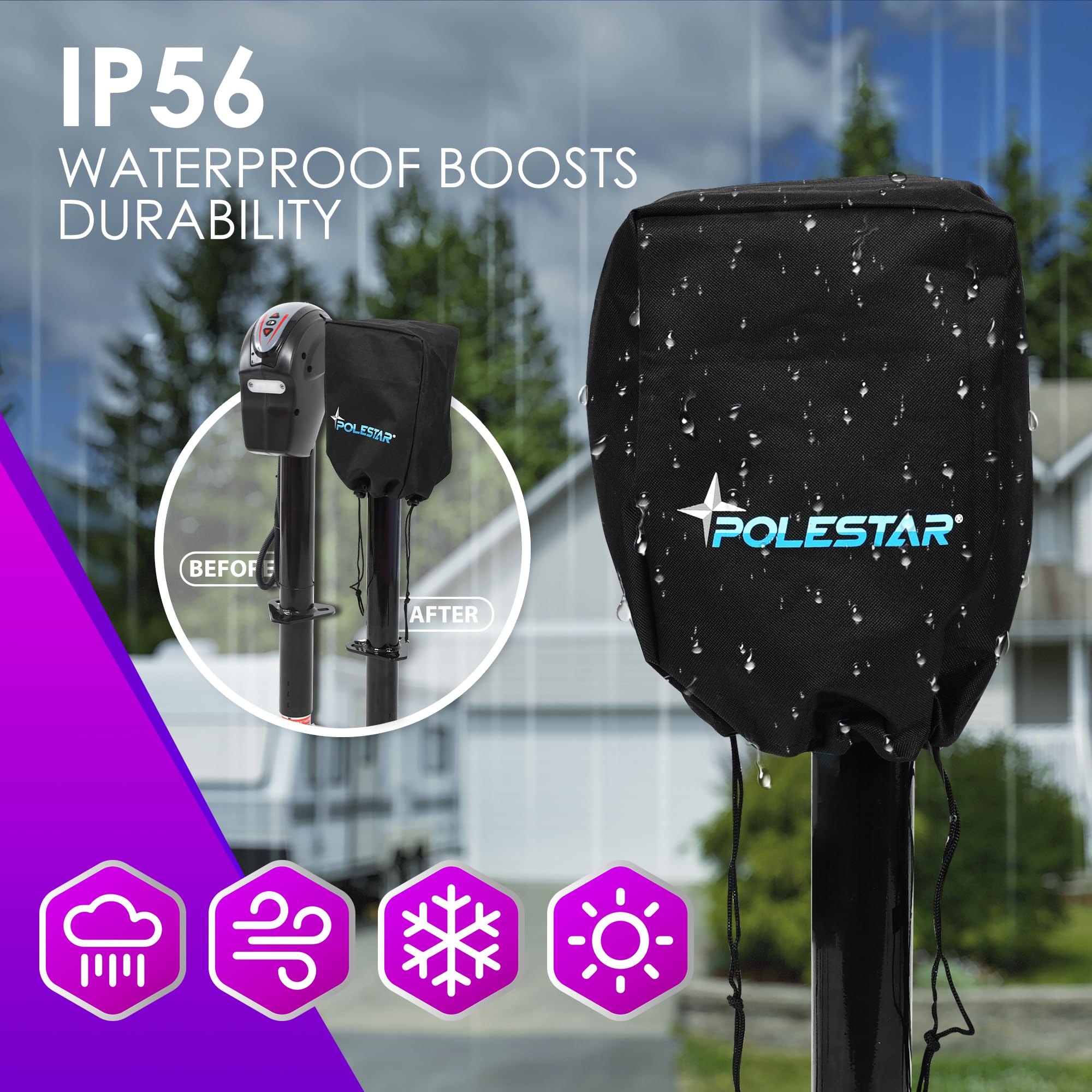

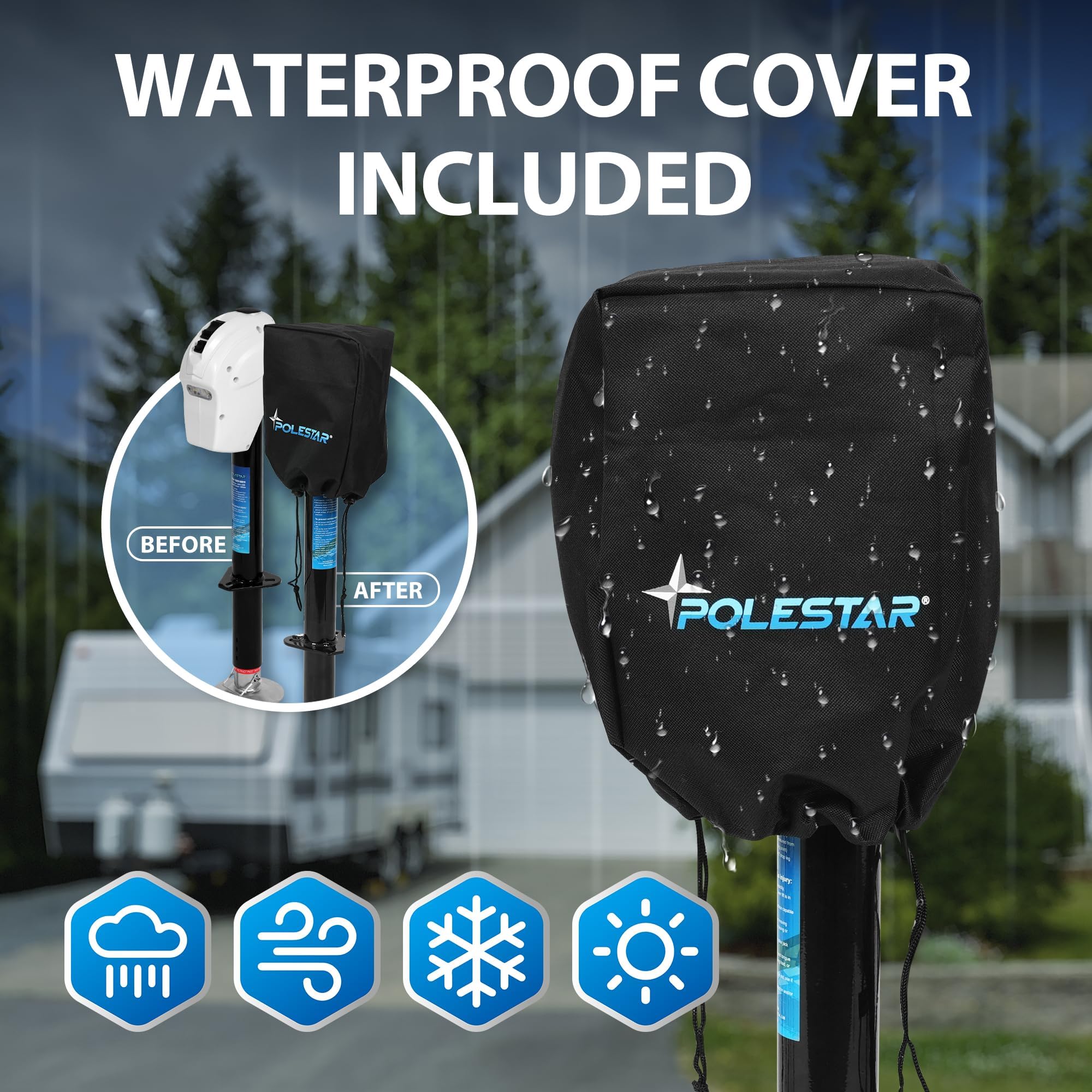

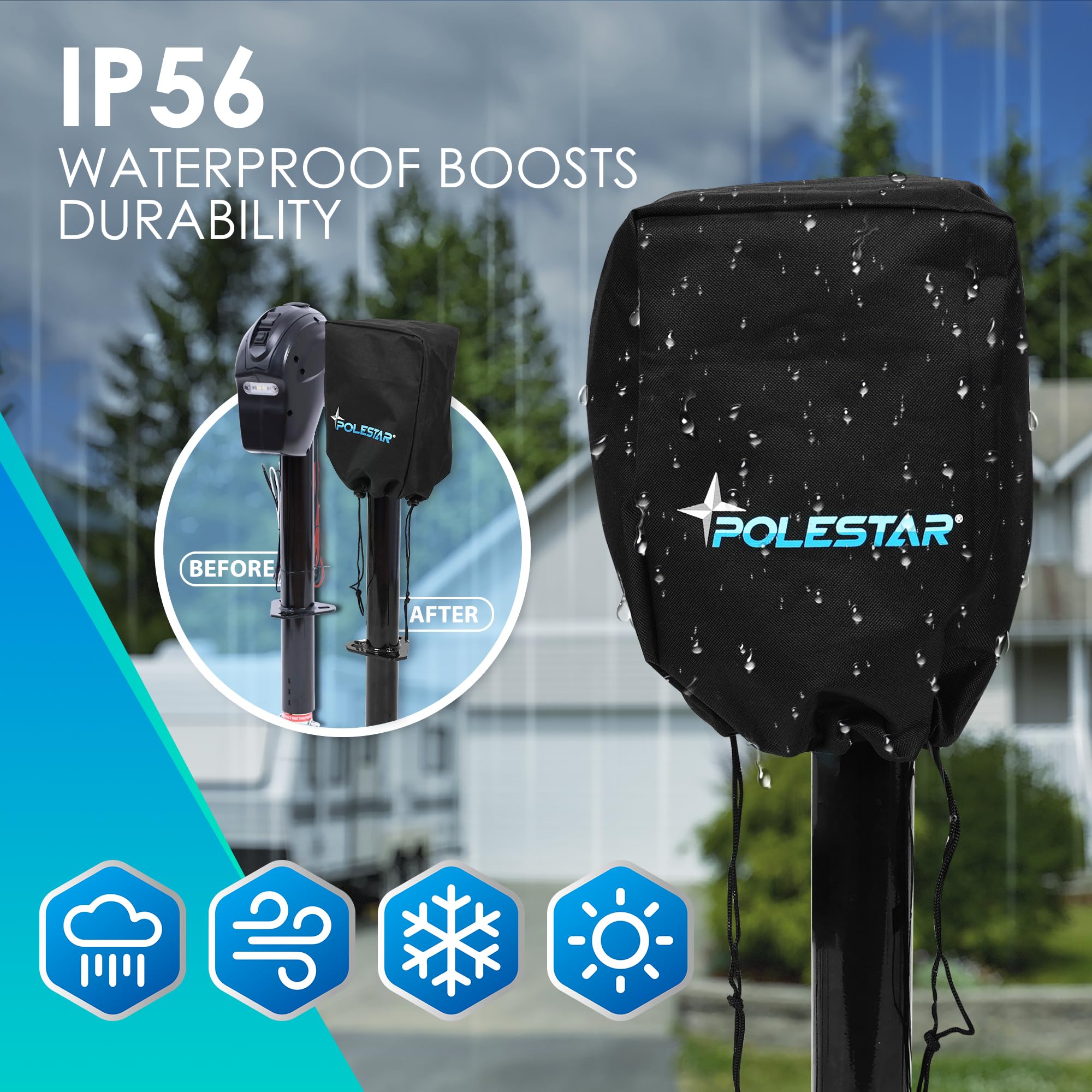

Waterproof cover

New redesigned one-piece industrial cover is extremely waterproof.For Ample Water Protection For Electrical Components.

Sturdy Base Plate

5.5" diameter foot plate gives you more stable support.

SPECIFICATIONS

Model no.	10201089
Maximum Lift Capacity	3,500 lb

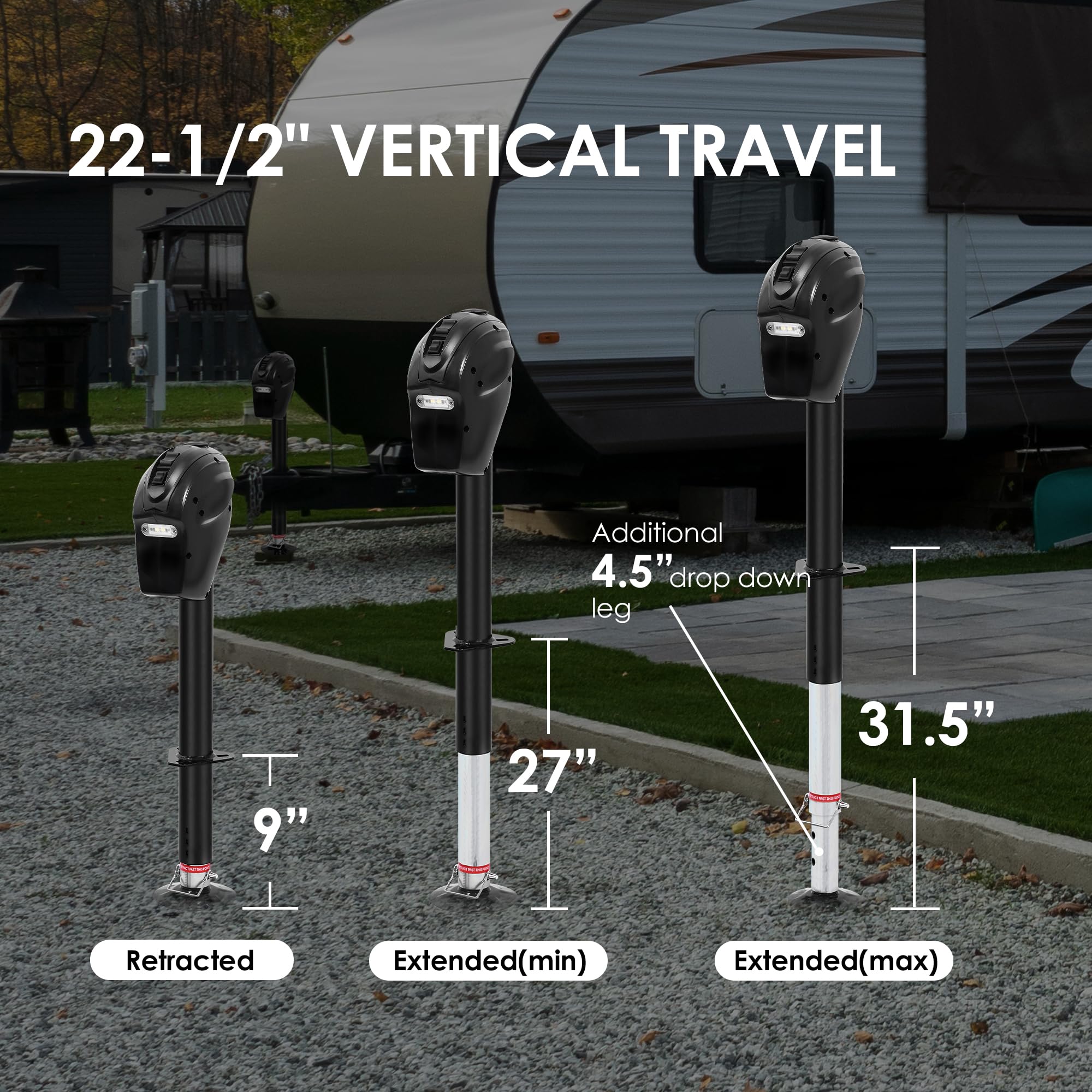

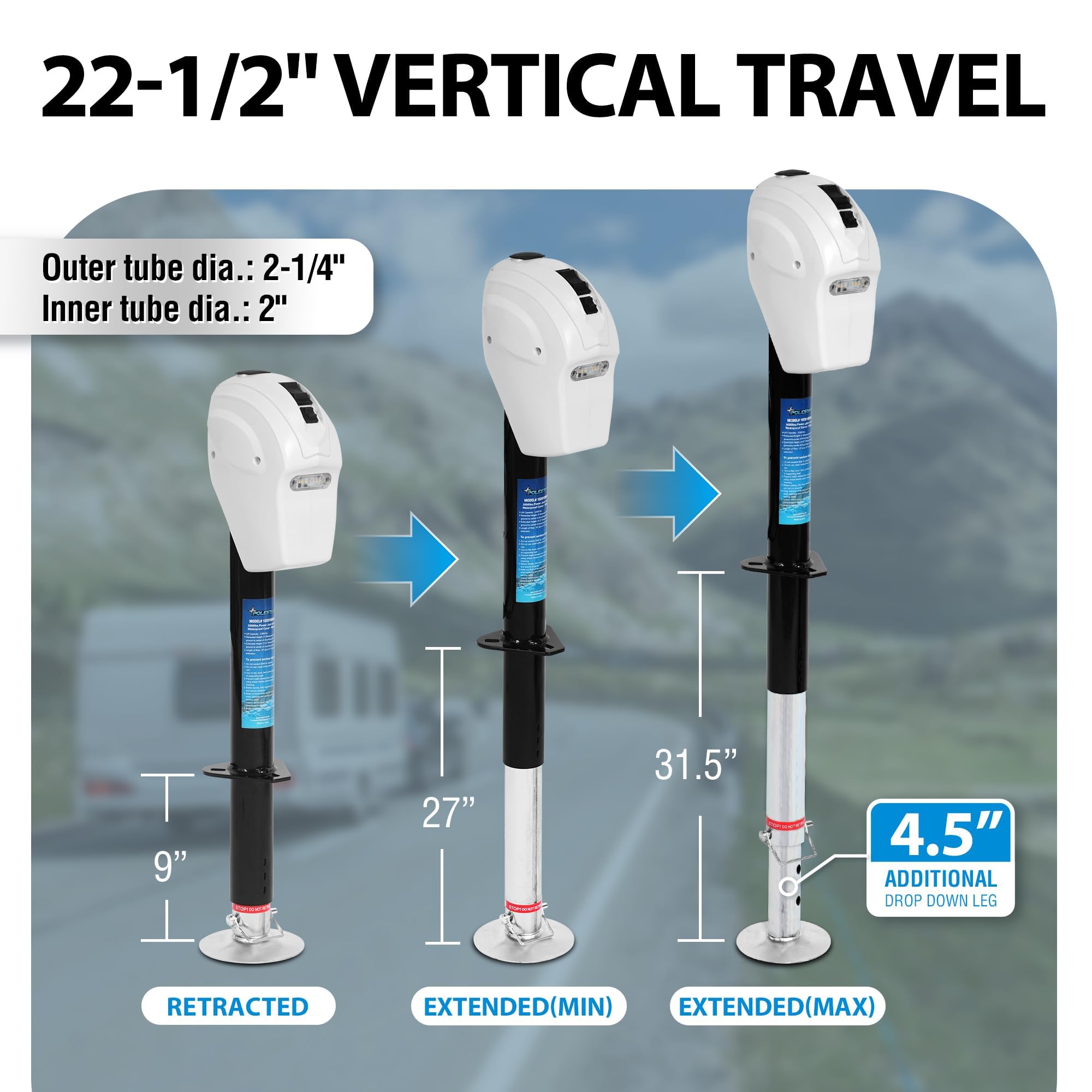

Travel	Full 22-1/2” stroke (18” power plus 4-1/2” manual drop leg extension)
Height Range	9" to 31-1/2"
Type	12V DC A-Frame
Outer Tube Diameter	2.25"
Foot Pad	Removable 4-1/2 in. Drop Leg

	POLESTAR 12V DC 3500 lbs. Power A-Frame Electric Tongue Jack for for RV	POLESTAR 5000LB Electric Power A- Frame Tongue Jack	POLESTAR 12V DC 3500 lbs. RV Electric Power A-Frame Tongue Jack

Customer Reviews	176	818	161
Price	$159.99	$181.47	$129.99
Load Capacity	3500lbs	5000lbs	3500lbs
Travel	22-1/2"(18"plus 4-1/2"drop leg)	22-1/2"(18"plus-4-1/2"drop leg)	Removable 4-1/2 in. Drop Leg
Power	12V DC	12V DC	12V DC
Trailer Battery Power Supply(Y/N)	Y	Y	Y
lifting Speed/S	30	30	27
Gross Weight	24 pounds	22.6 pounds	/
Manual Hand Crank(Y/N)	Y	Y	Y
Outer Tube Diameter	2.25"	2.25"	2.25"
Foot Pad	Removable 4-1/2 in. Drop Leg	Removable 4-1/2 in. Drop Leg	Removable 4-1/2 in. Drop Leg
Waterproof	IP58	IP58	IP58

Heavy Duty Electric Trailer Jack - The POLESTAR 3500 lbs Electric Trailer Jack is built for powerful lifting power, designed to effortlessly handle trailers, RVs, boats, and off-road vehicles up to 3500 lbs. Whether stabilizing a heavy-duty trailer or performing demanding tasks, this jack provides exceptional strength and reliability, making it perfect for a wide range of hauling needs.

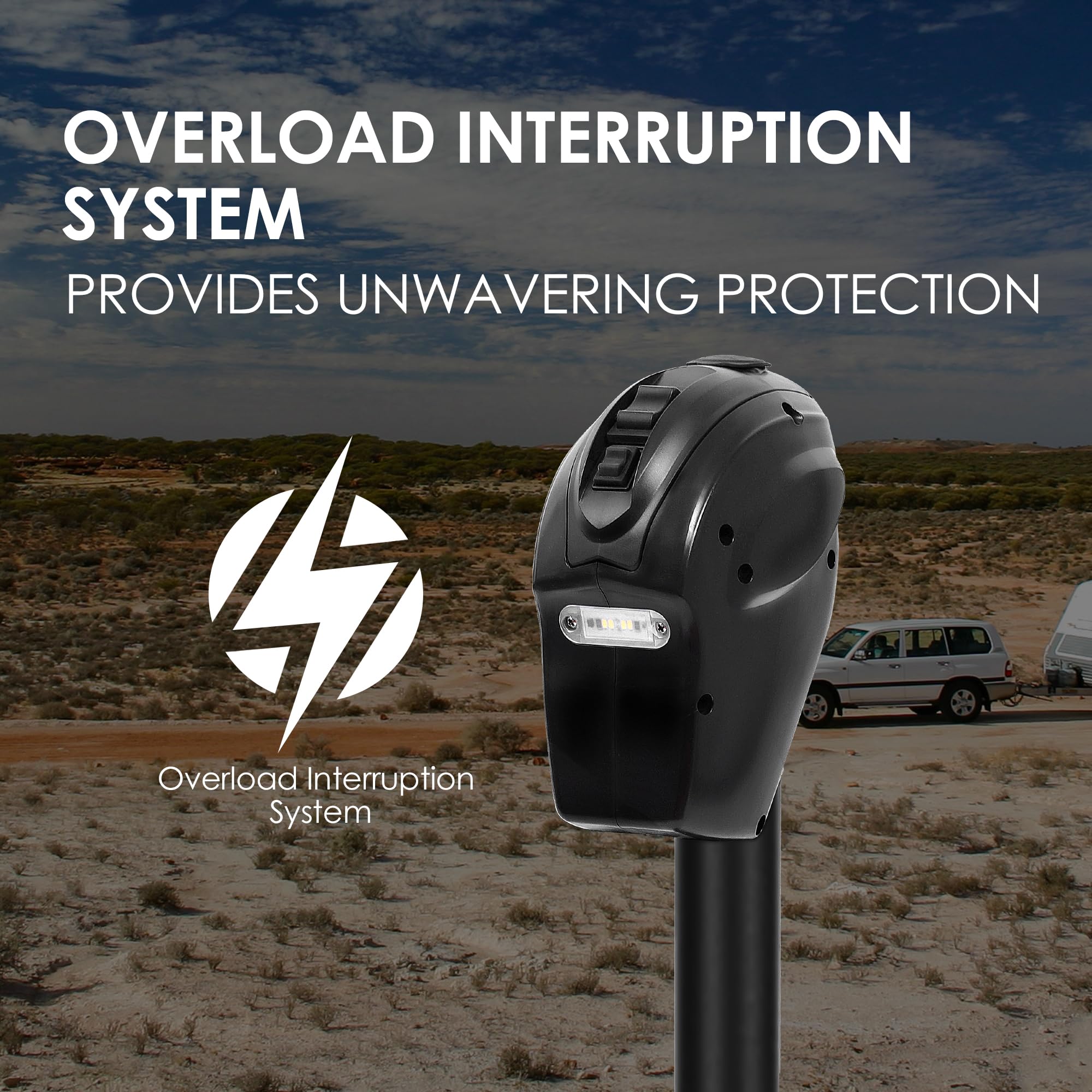

Durable and Reliable - Crafted from durable, weather-resistant materials, the POLESTAR jack is built to endure the toughest outdoor environments. Its robust design ensures long-lasting performance, withstanding rain, snow, and sun exposure, so it remains a reliable companion for all outdoor and heavy-duty tasks, it has a built-in circuit breaker that automatically trips and resets if the amperage is too high.

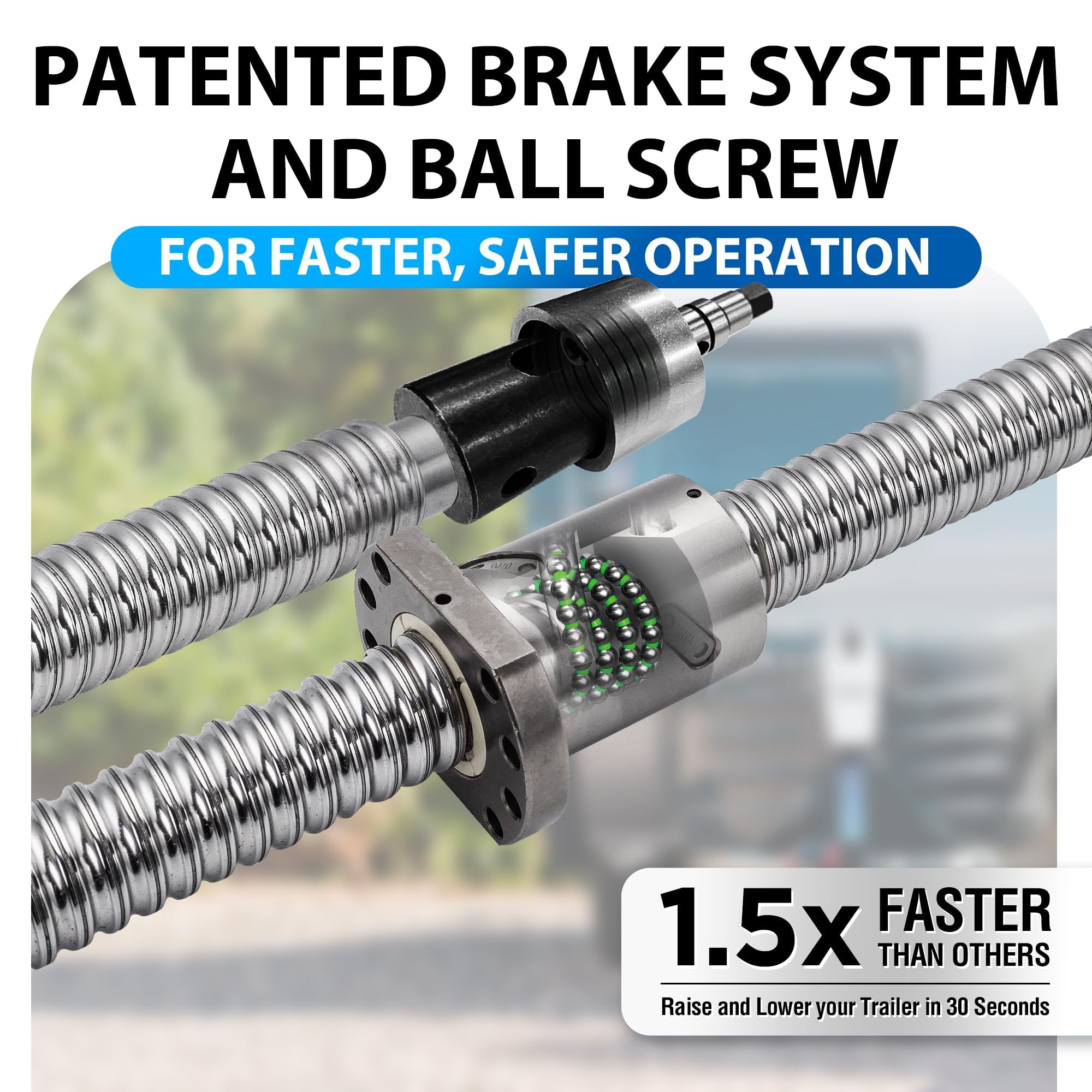

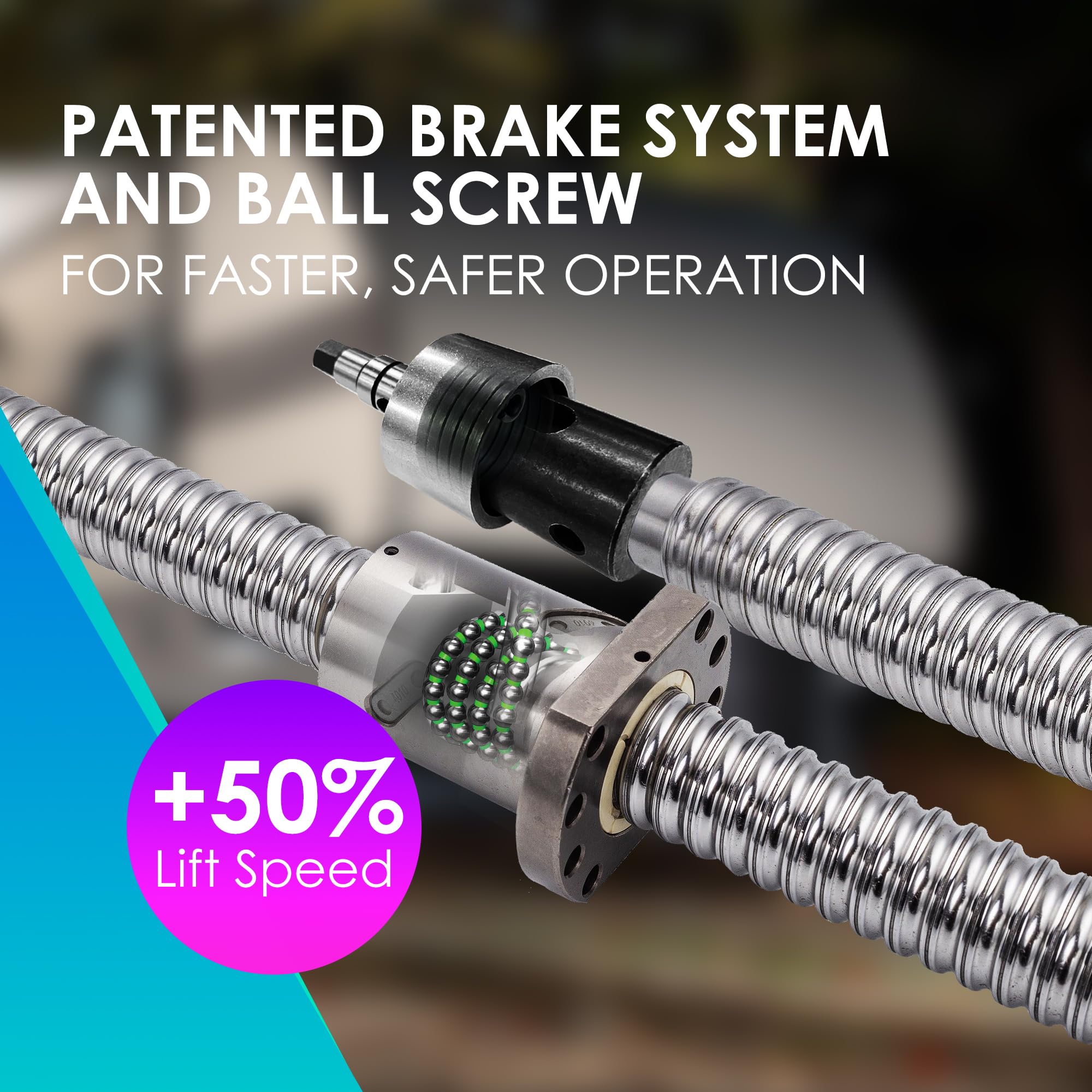

Convenient and Efficient - Featuring a 12V DC Motor powerful brake motor to provide consistent and stable lifting power. ensures smoother operation, reduces strain, and offers enhanced control, allowing you to effortlessly raise and lower your trailer with minimal effort and maximum stability. Whether you're on an uneven camping site, parking lot, or incline, this electric jack ensures smooth, stable lifting for secure vehicle positioning.

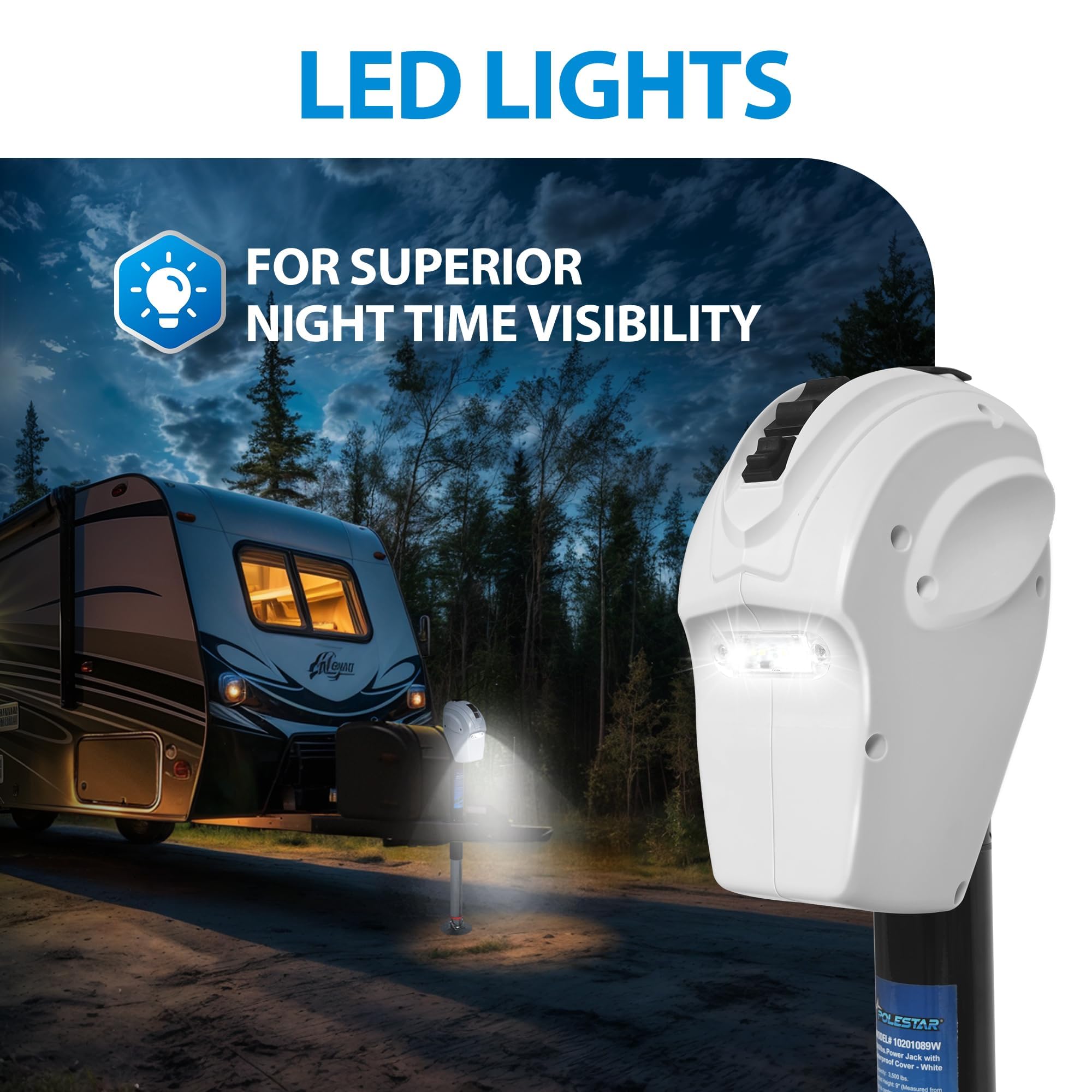

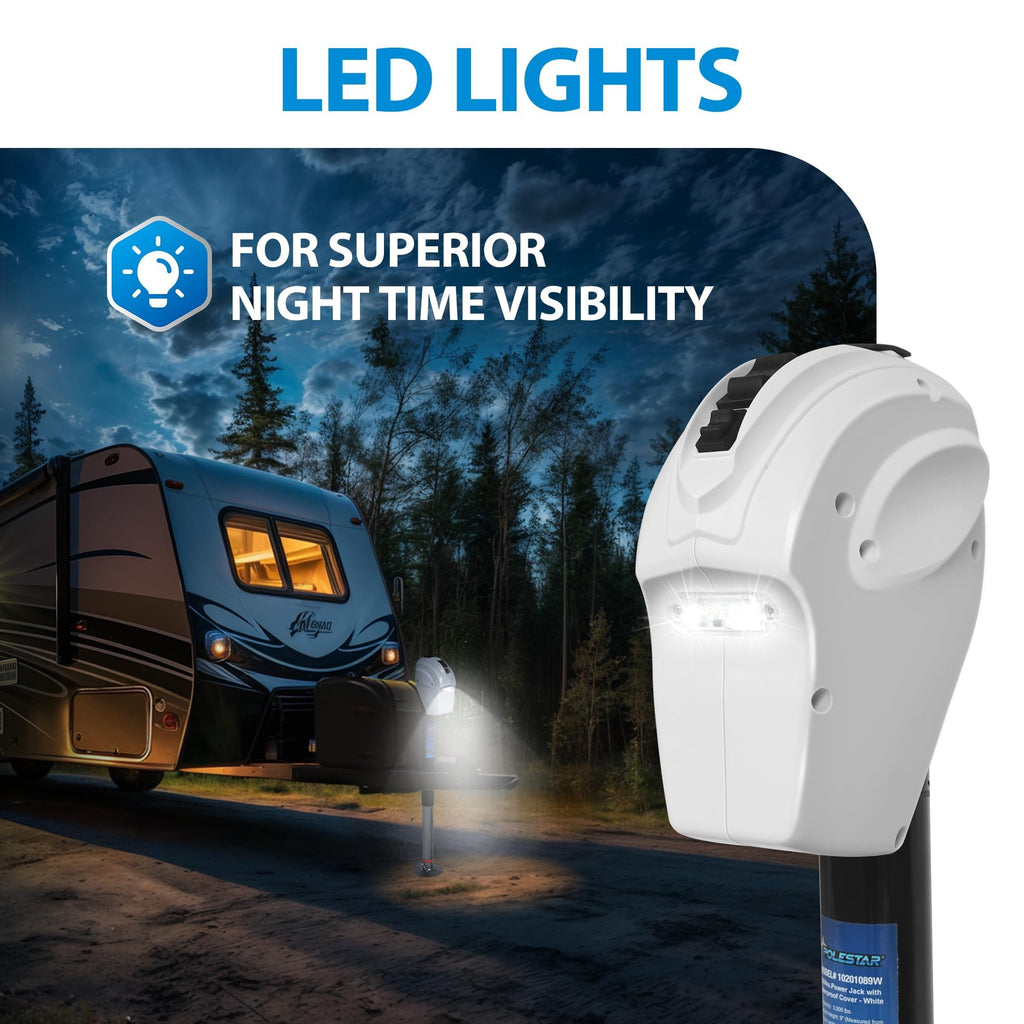

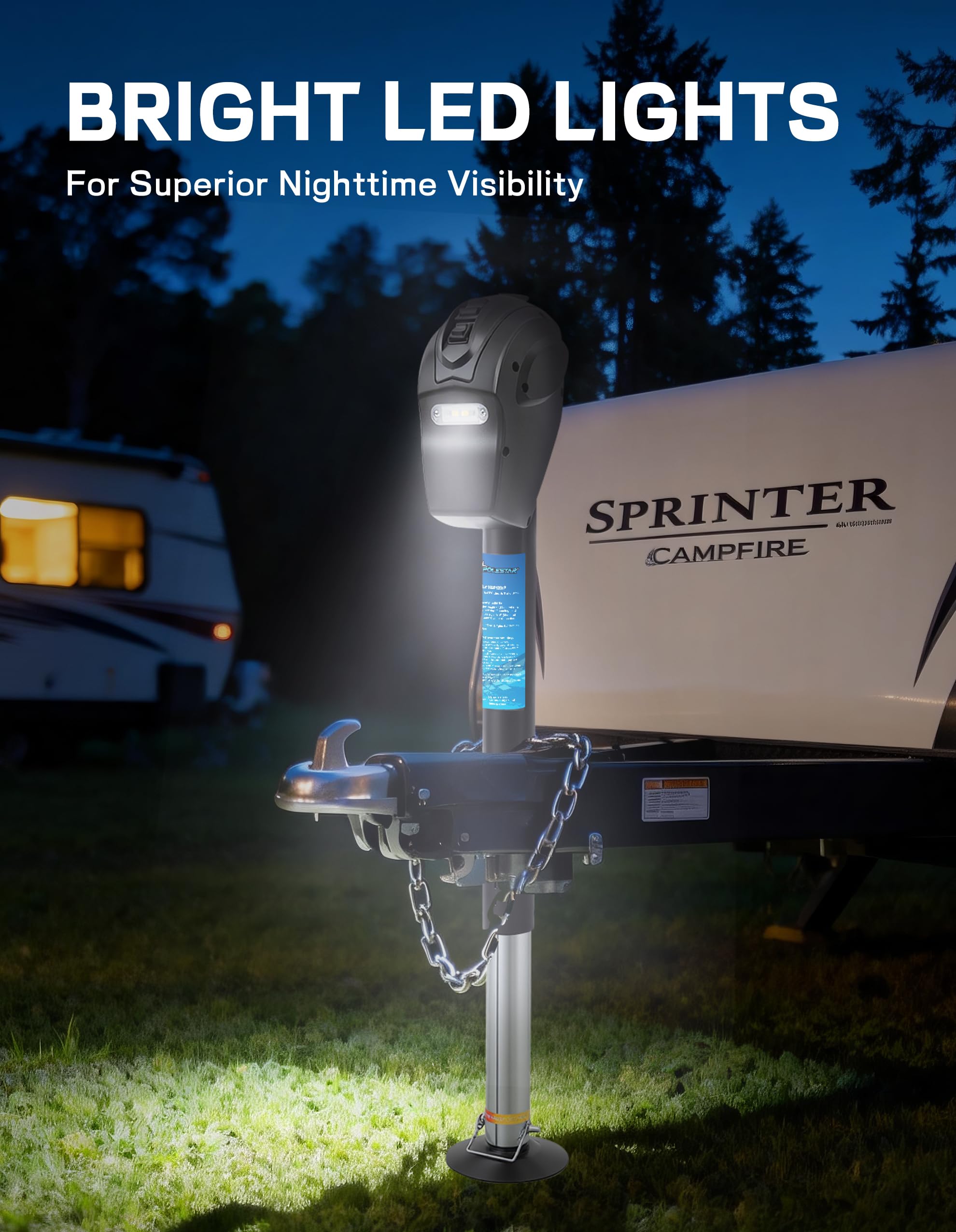

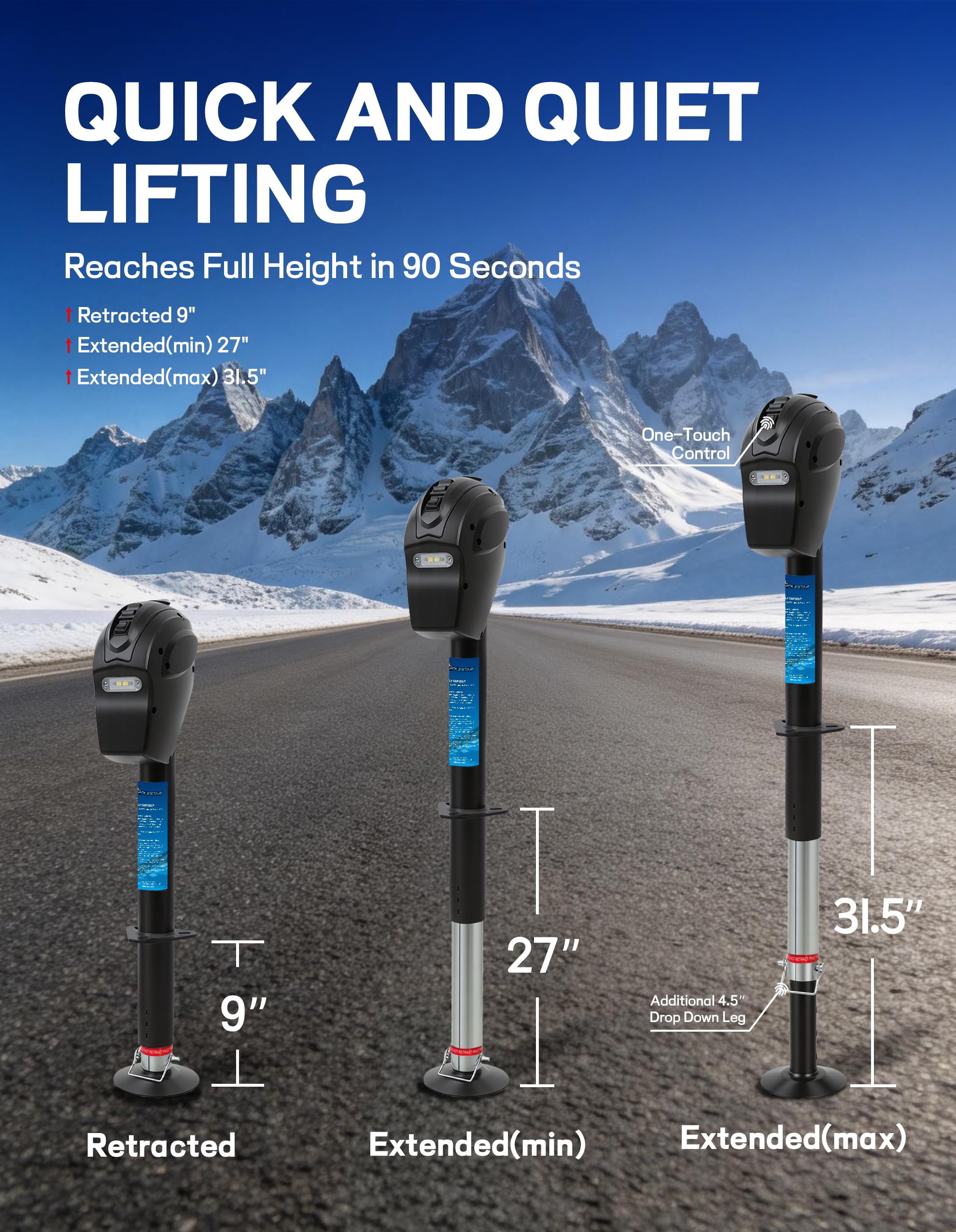

Versatile Lift Range - With a lift range from 9 inches (retracted) to 27 inches, Plus 4.5 inch Drop Leg, Up to 31.5 inches, the POLESTAR 3500 lbs electric trailer jack is versatile enough to handle a wide variety of trailer types and hauling tasks. Improved LEDs shine down onto your ball and coupler where light is needed the most.
Trusted POLESTAR Quality - POLESTAR is known for providing high-performance, innovative trailer accessories that stand the test of time. Designed for both professionals and DIYers, the POLESTAR electric trailer jack combines strength, durability, and precision, ensuring your lifting and stabilizing tasks are always done with ease and confidence.

› See more product details

Vehicle Service Type	RV, Trailer
Material	Alloy Steel
Load Capacity	3500 Pound
Maximum Lifting Height	31.5 Inches
Brand	POLESTAR

POLESTAR Electric Trailer Jack, 3500lbs Electric Power A- Frame Tongue Jack with Waterproof Protective Cover & LED Light for Travel Trailer Camper, RV, 12V DC with Hard Wiring, 9"-27" Lift
