Sipeed NanoKVM Cube IP-KVM Operations Maintenance Server

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

Sipeed NanoKVM IP-KVM Mini Remote Control Server

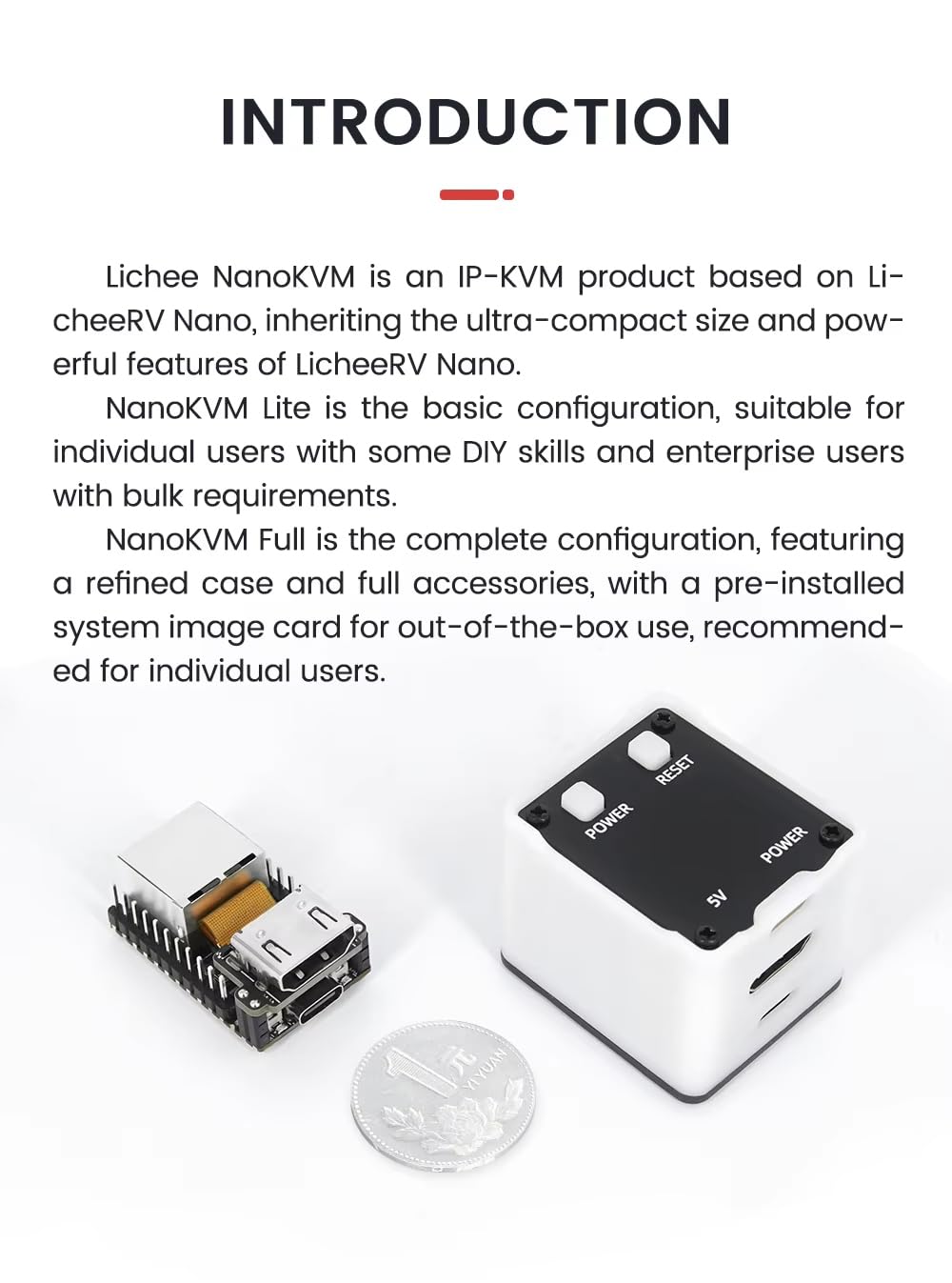

The NanoKVM is an IP-KVM product based on the LicheeRV Nano, inheriting its compact size and powerful features.

  1. NanoKVM includes an HDMI input interface that can be recognized as a monitor by a computer, capturing the computer's screen. It has a USB 2.0 interface to connect to the computer host, recognized as HID devices like keyboard, mouse, and touchpad, and uses extra storage space on the Micro SD card, mounted as a USB flash drive. It comes with a 100 Mbps Ethernet port for video and control signal transmission. Additionally, the Full version features an ATX power control interface (USB-C form) for remote control and monitoring of the host's power status. Under the Full version's shell, there is an OLED display for showing the device's IP and KVM-related status.

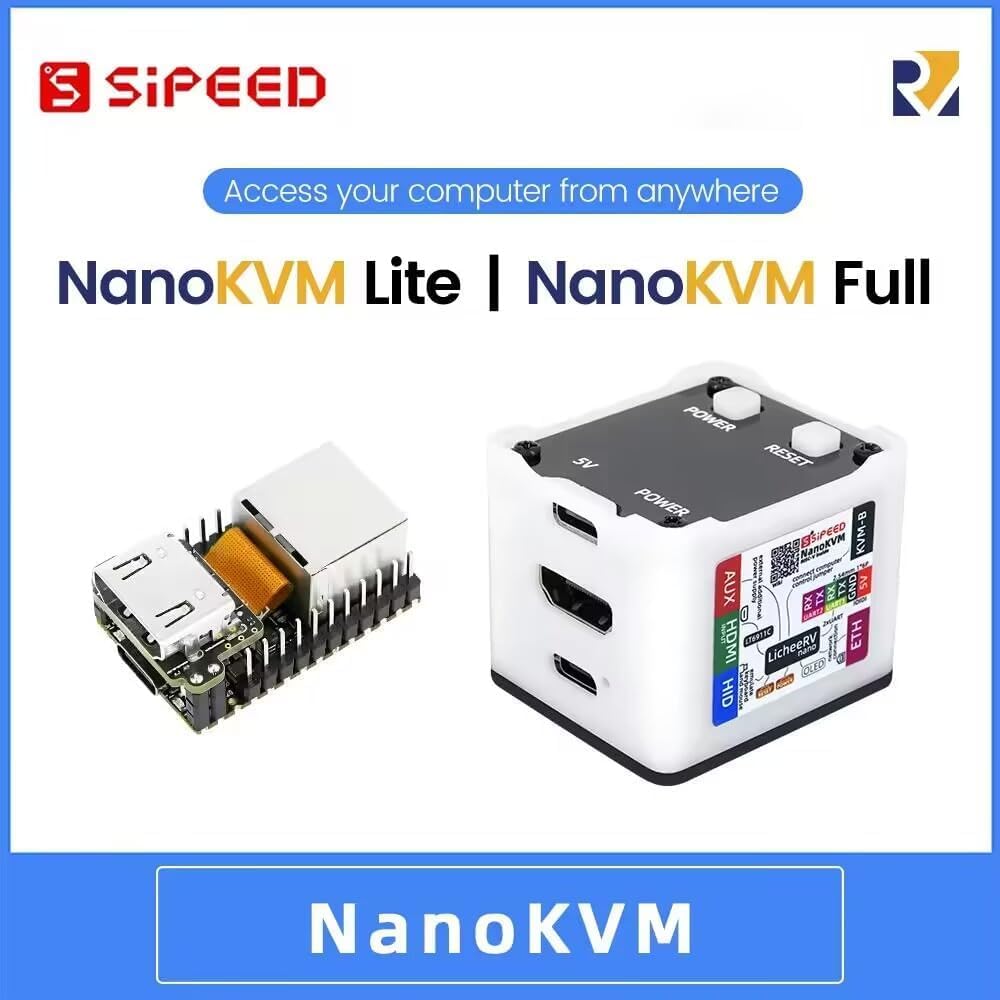

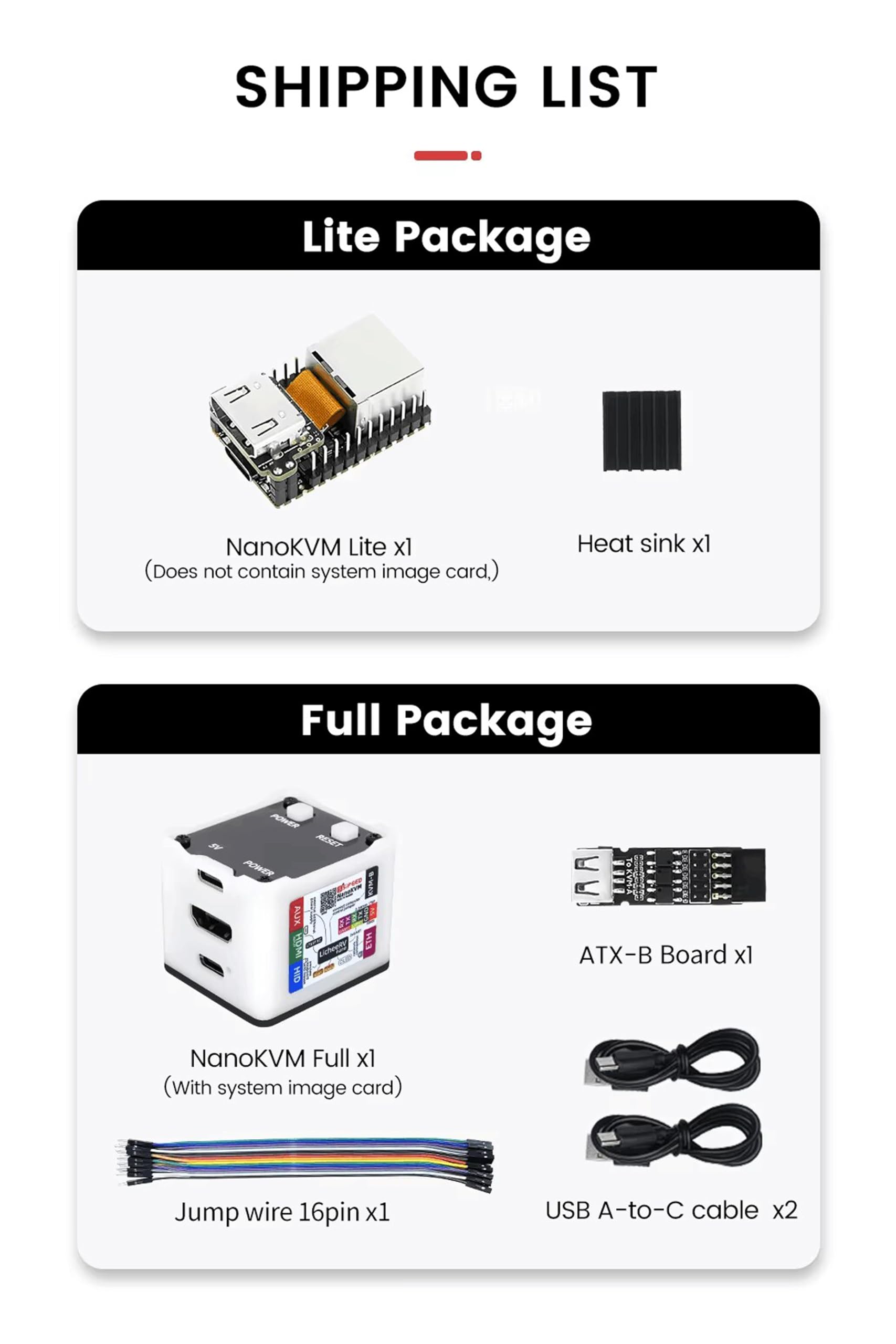

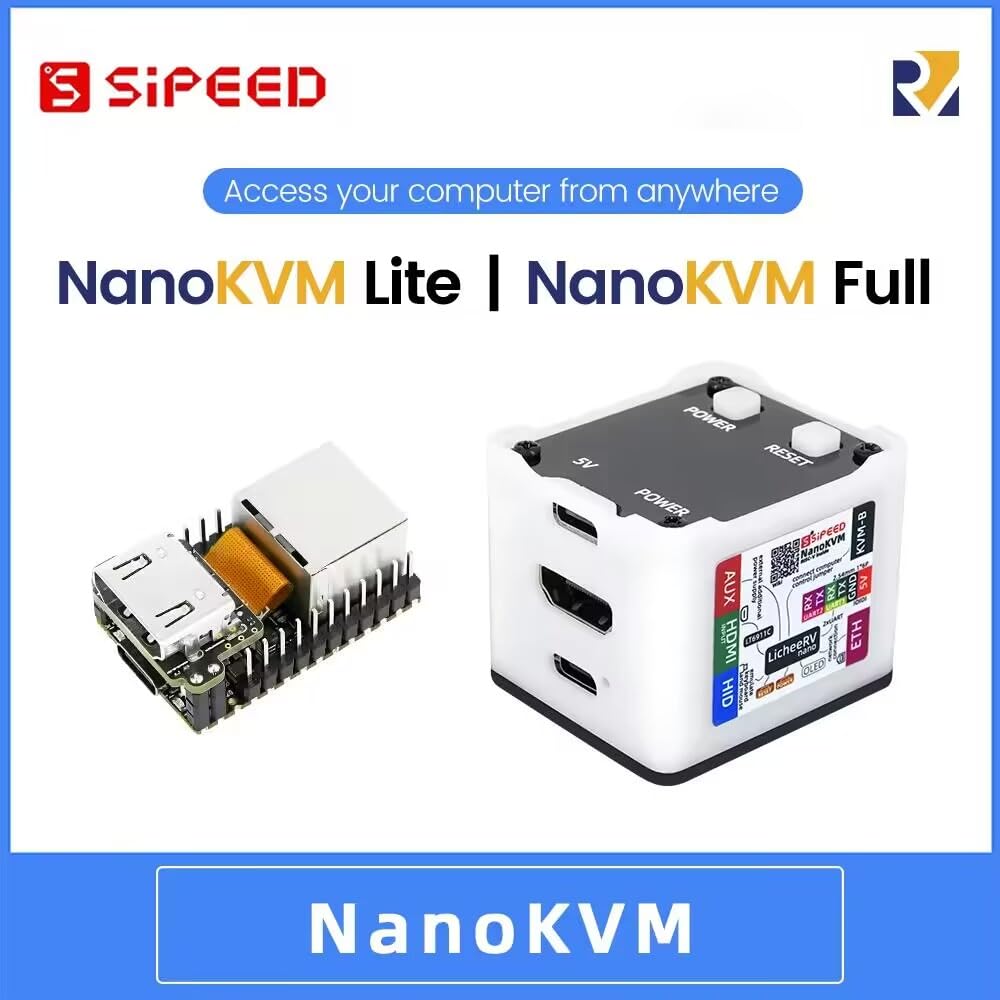

  2. To meet different user needs, NanoKVM is available in two versions:

  • NanoKVM Lite: Basic version suitable for DIY enthusiasts and enterprises with bulk requirements.

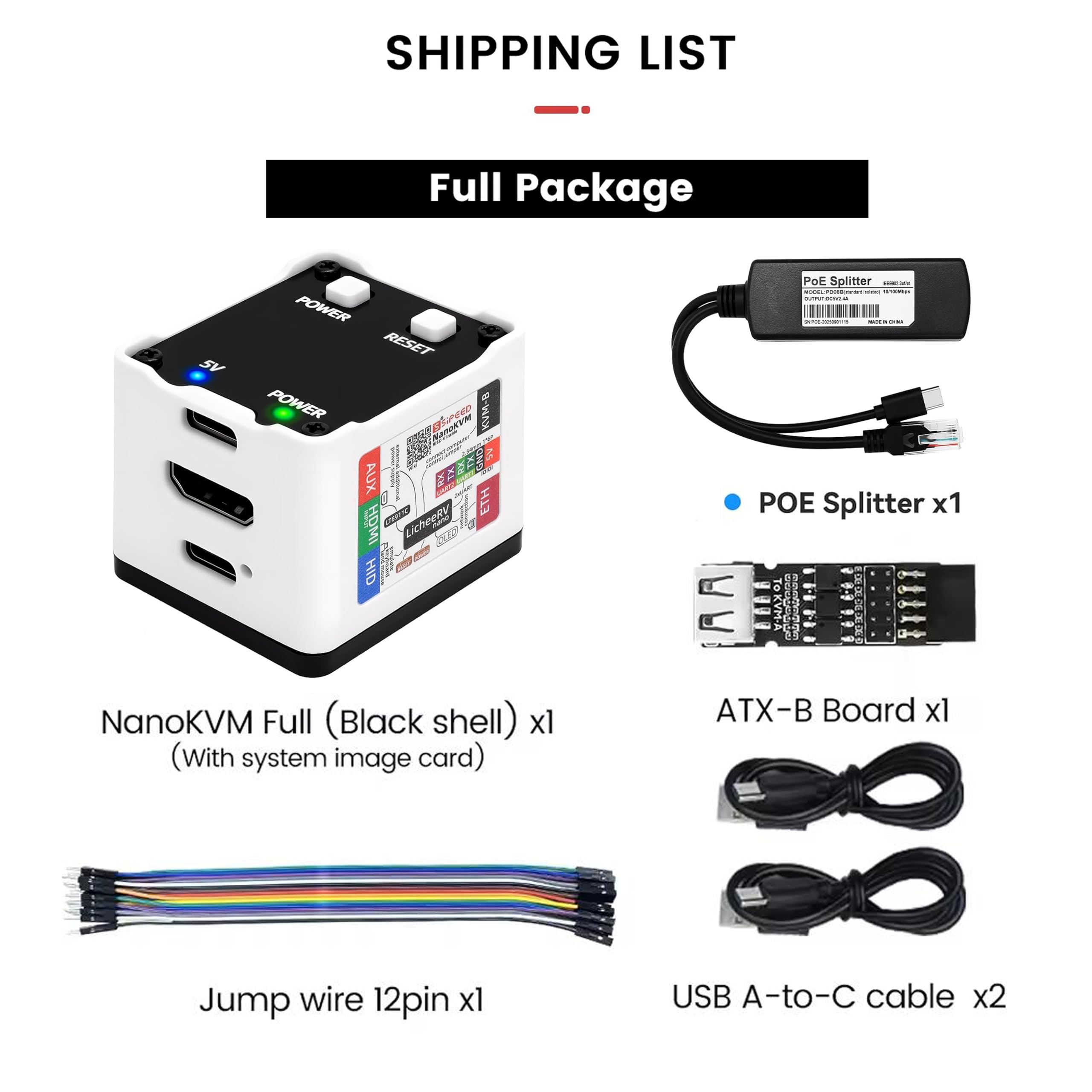

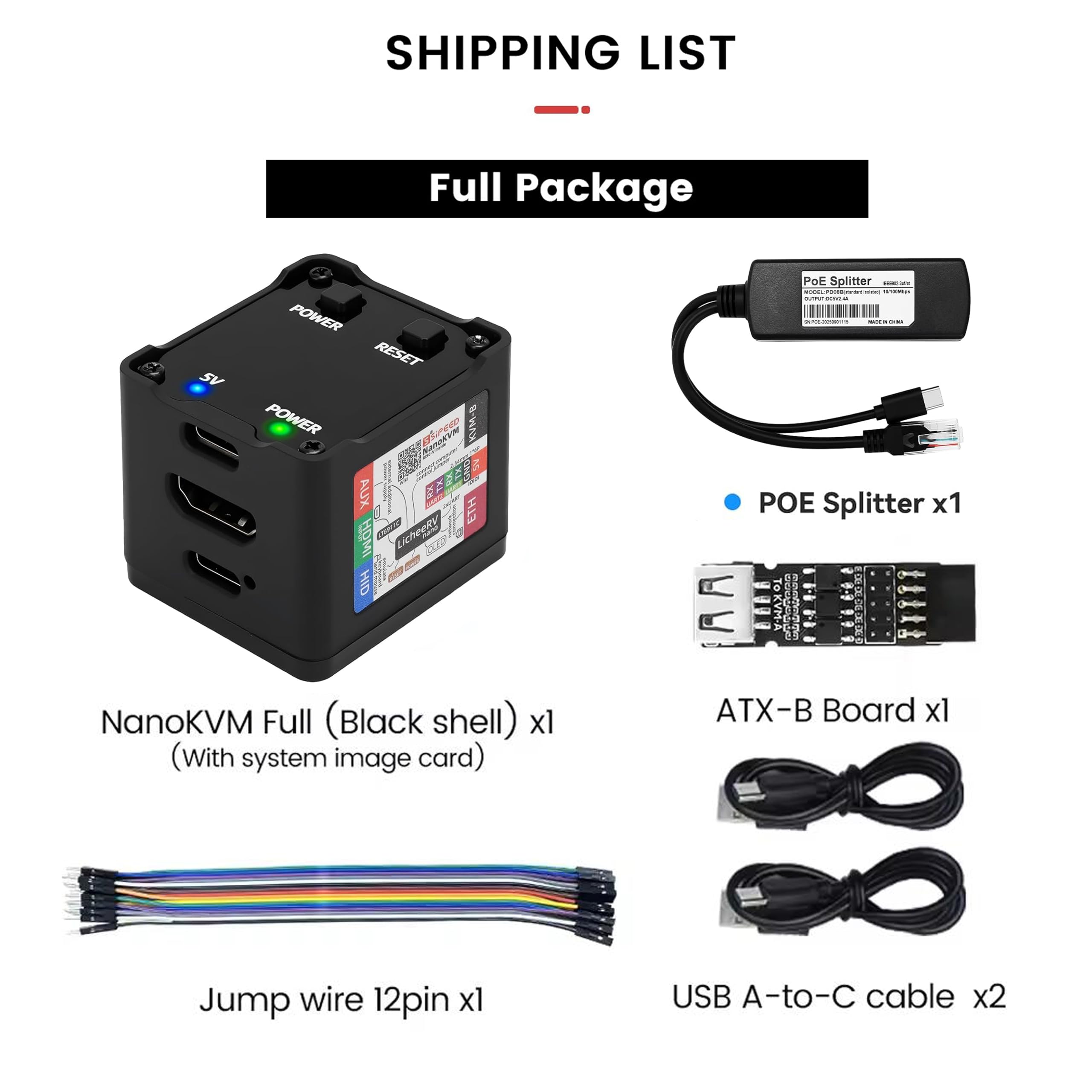

  • NanoKVM Full: Complete version with a sleek shell and full accessories, including a pre-installed system image card, recommended for individual users.

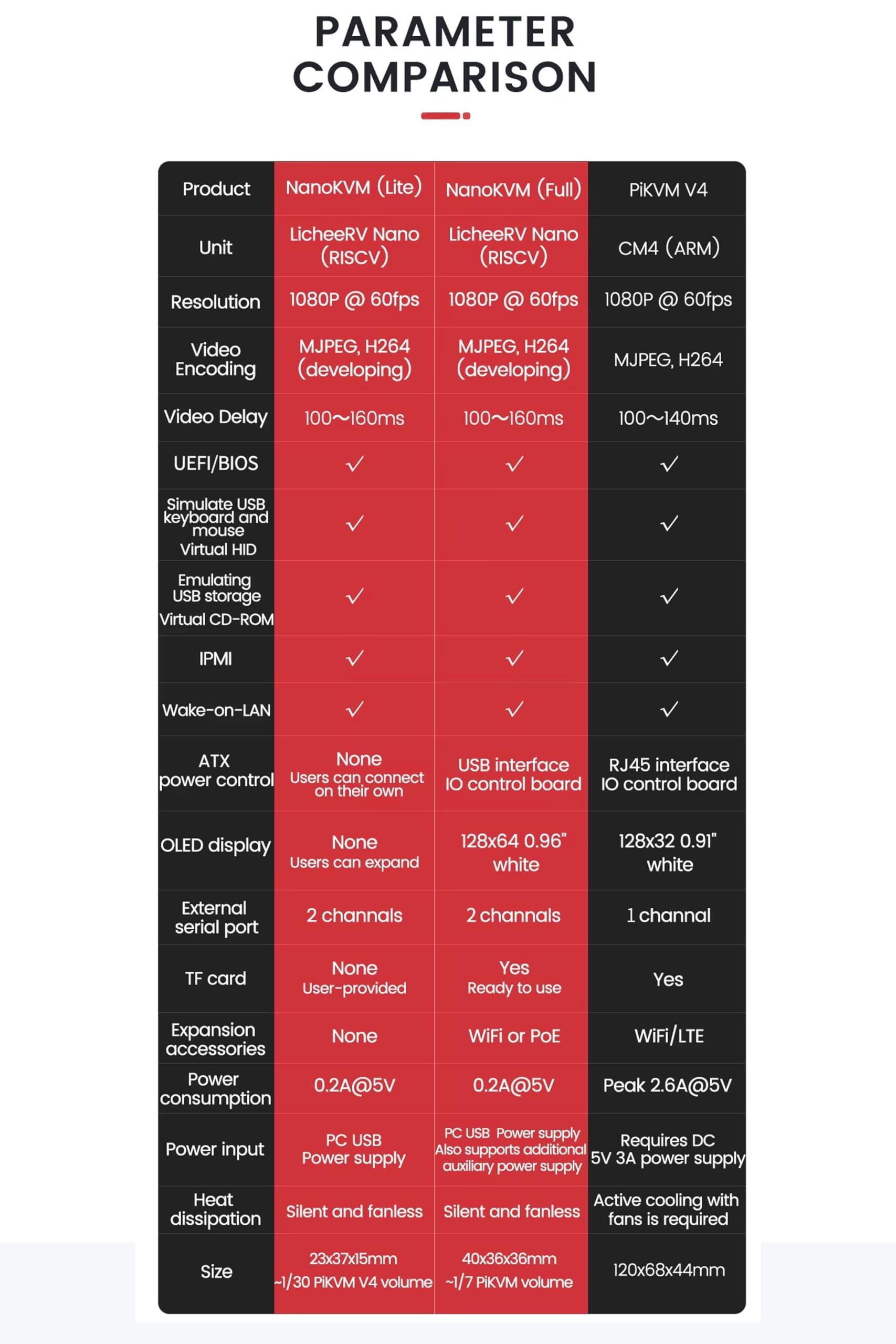

Specifications

Computing Unit LicheeRV Nano (RISCV)
Resolution 1080P @ 60fps
Video Encoding MJPEG, H264 (WIP)
Video Latency 90-230ms
UEFI/BIOS ✓
Emulated USB Keyboard/Mouse ✓
Emulated USB Storage ✓
IPMI ✓
Wake-on-LAN ✓
Tailscale ✓
WebSSH ✓
Custom Scripts ✓
ETH 100M/10M
Micro SD Card Included, ready to use （NanoKVM Lite None onboard, User-Provided）
Dimensions 40x36x36mm
Wiki "wiki.sipeed.com/hardware/en/kvm/NanoKVM/introduction.html"

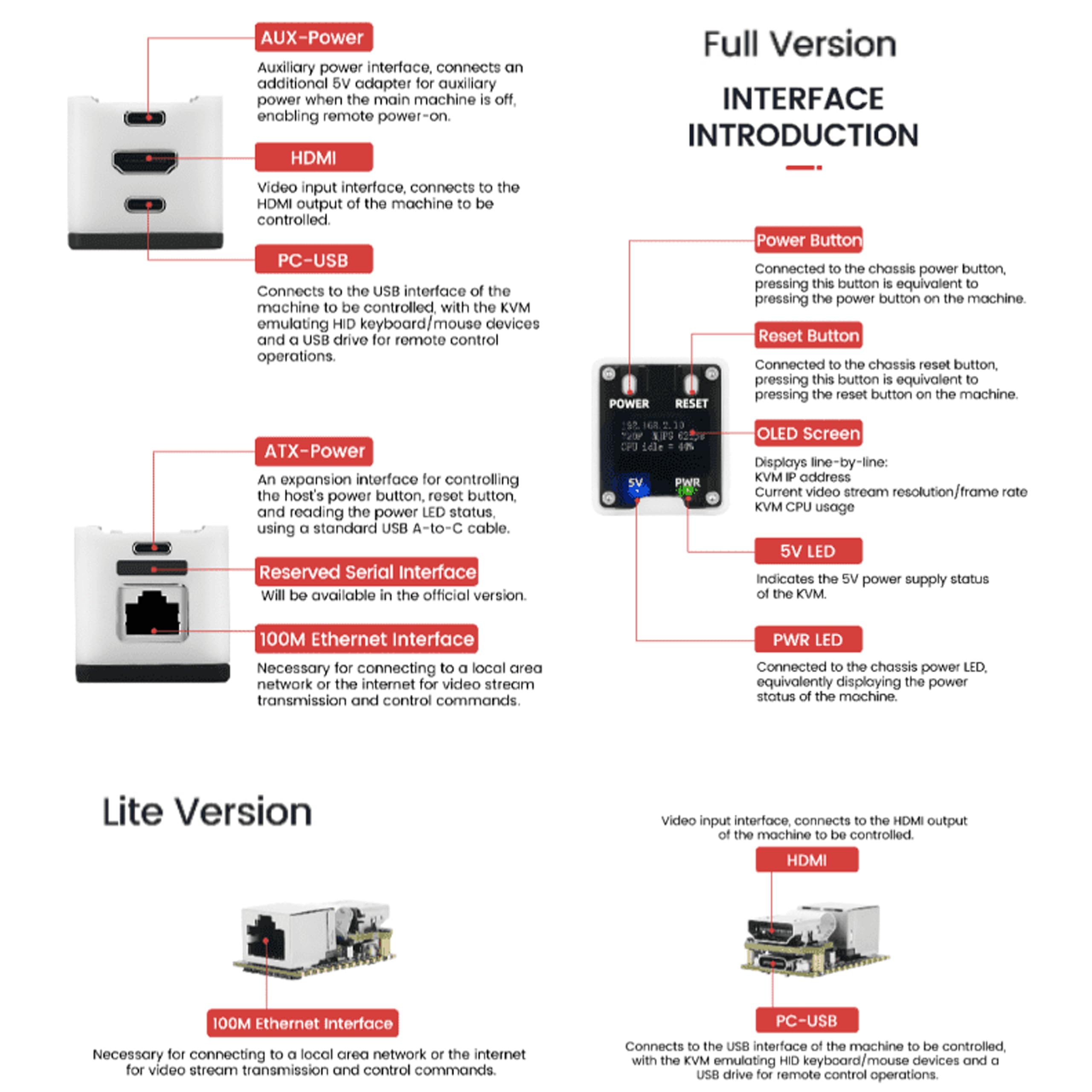

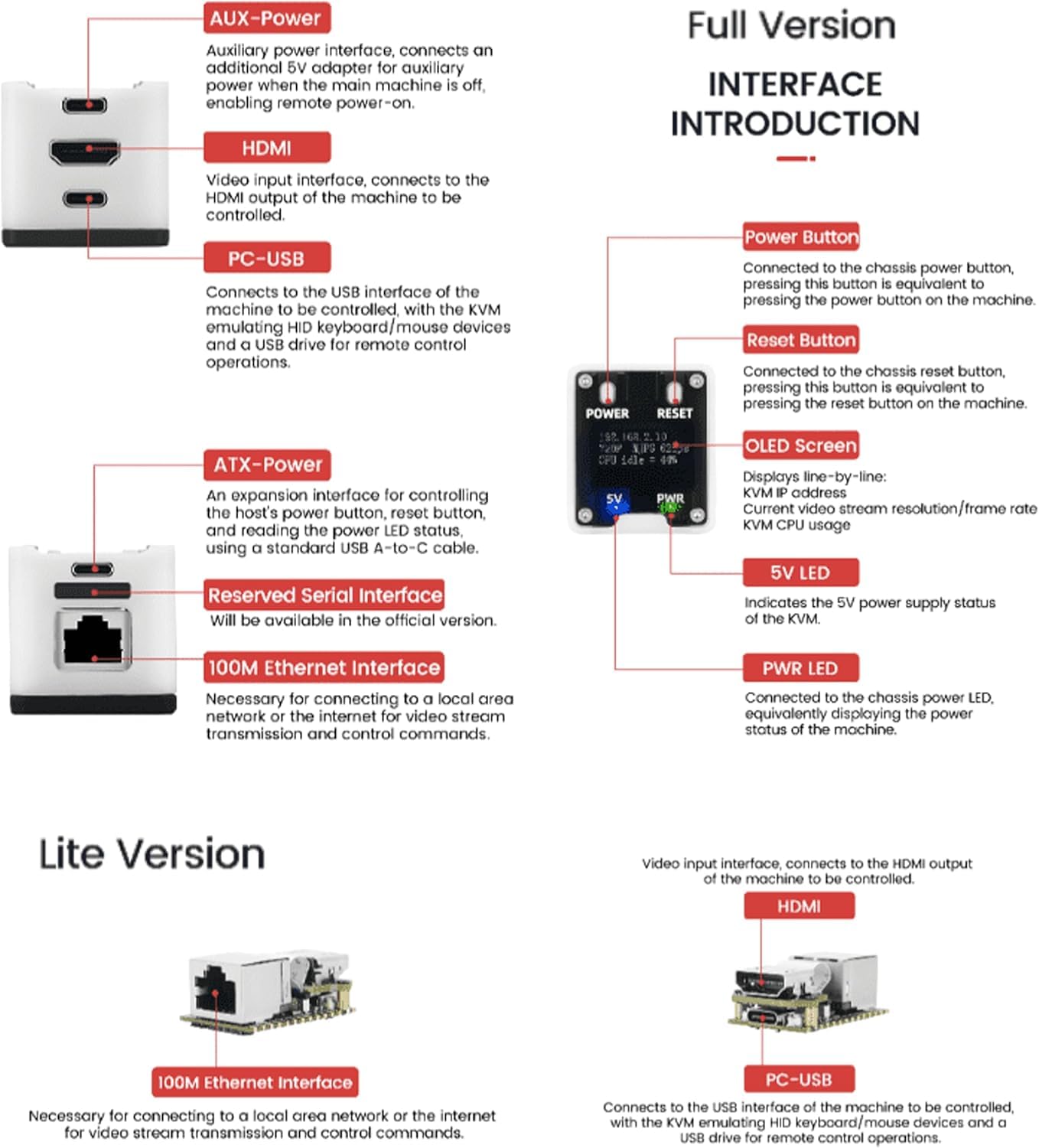

Interface Introduction

Sipeed NanoKVM IP-KVM Mini Remote Control Operations Maintenance Server

  • The Full version features three USB Type-C interfaces with the following names and functions

Sipeed NanoKVM IP-KVM

  • HID Interface (also called PC-USB), located below the HDMI interface, is used to connect the host, simulate keyboard and mouse, USB drive, and RNDIS devices.

Sipeed NanoKVM IP-KVM Mini Remote Control Operations Maintenance Server

  • KVM-B Interface (also called ATX-Power), located above the Ethernet port, connects to KVM-B for power control functions.

Sipeed NanoKVM IP-KVM Mini Remote Control Operations Maintenance Server

  • AUX Interface, located above the HDMI interface, provides auxiliary power supply.

Differences Between Beta and Official Versions

Sipeed NanoKVM IP-KVM Mini Remote Control Operations Maintenance Server

  • The official firmware for NanoKVM Full version is universal and compatible with all versions. The ATX control interface supports configurations for power light, hard disk light, reset, and power buttons. Refer to the wiring diagram for assembly.

Sipeed NanoKVM IP-KVM Mini Remote Control Operations Maintenance Server

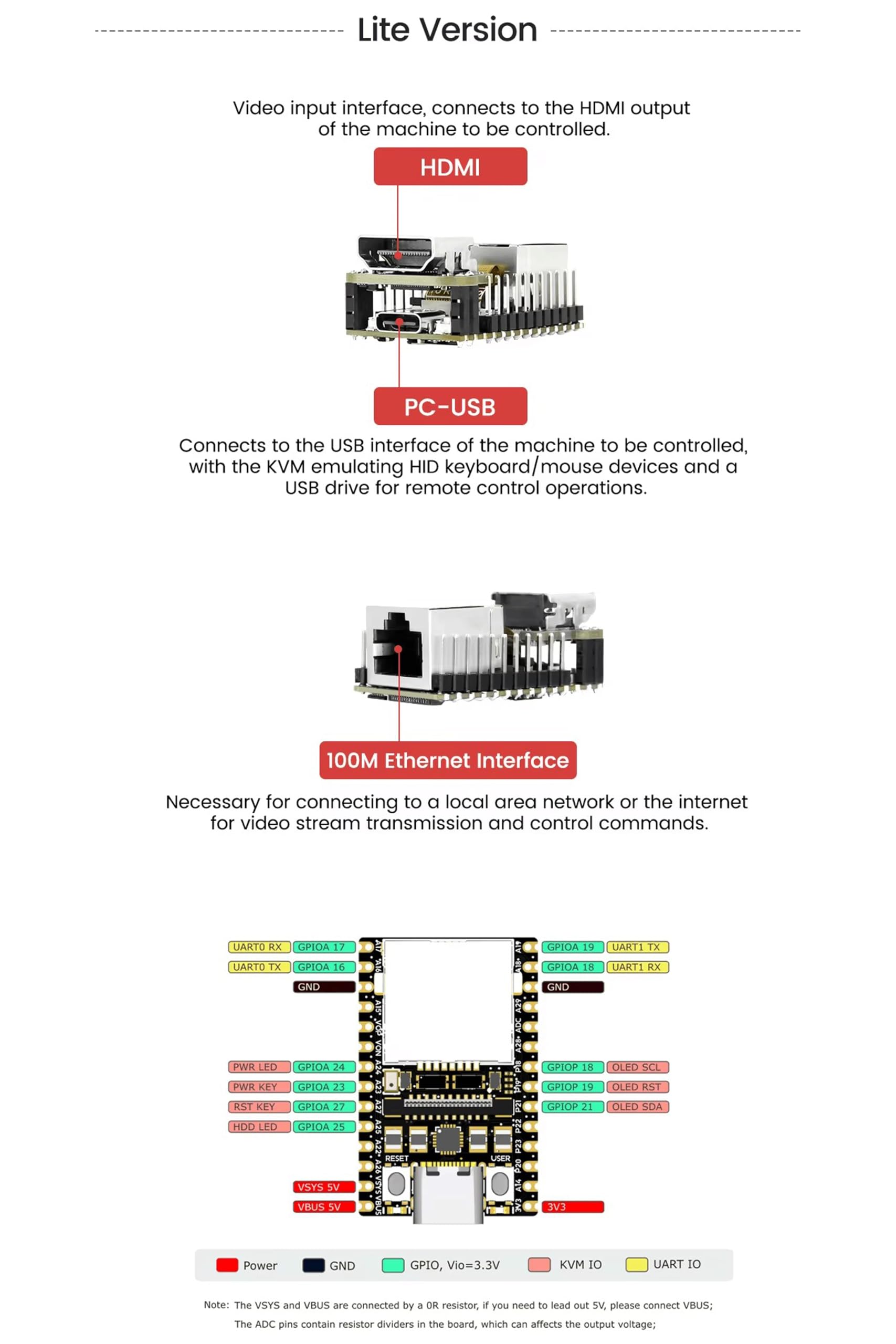

  • For Lite version users, the software adapts to their board, and there's no hardware auto-detection feature. If users need ATX support, they can manually update the firmware to the Full version and add the necessary hardware extensions.

  • [Remote Control O&M Server] Sipeed Lichee NanoKVM Cube IP-KVM Mini Remote Control Operations and Maintenance Server is an IP-KVM product based on LicheeRV Nano RISC-V Linux Single Board Computer, which inherits the extreme size and powerful functions of LicheeRV Nano. It supports MJPEG, H264(WIP) video encoding, 1080P 60fps resolution, 90~230ms video latency, 100M/10M Ethernet on board, Size: 40x36x36mm.
  • [Multi-function Interface] Sipeed Lichee NanoKVM Cube IP-KVM RISC-V Linux Remote Control Operations Server includes an HDMI input port, which can be recognized by the computer as a monitor to capture the computer's screen; and a USB2.0 port to connect to the host computer, which can be recognized as a HID device such as a keyboard, a mouse and a touchpad. At the same time, using the extra storage space of TF card, it can be mounted as a USB flash drive device.
  • [Support 100M/10M Hundred Gigabit Ethernet] Sipeed Lichee NanoKVM Cube IP-KVM RISC-V Linux Development Board comes standard with a 100M Ethernet port for network transmission of video, control signals, etc. The NanoKVM IP-KVM RISC-V Linux Development Board comes with a 100M Ethernet port as standard. In addition, the Full version also comes with an ATX power control port (USB-C form factor) for remote control and host switching status, and an OLED display underneath the Full version's casing for displaying local IP and KVM-related status.

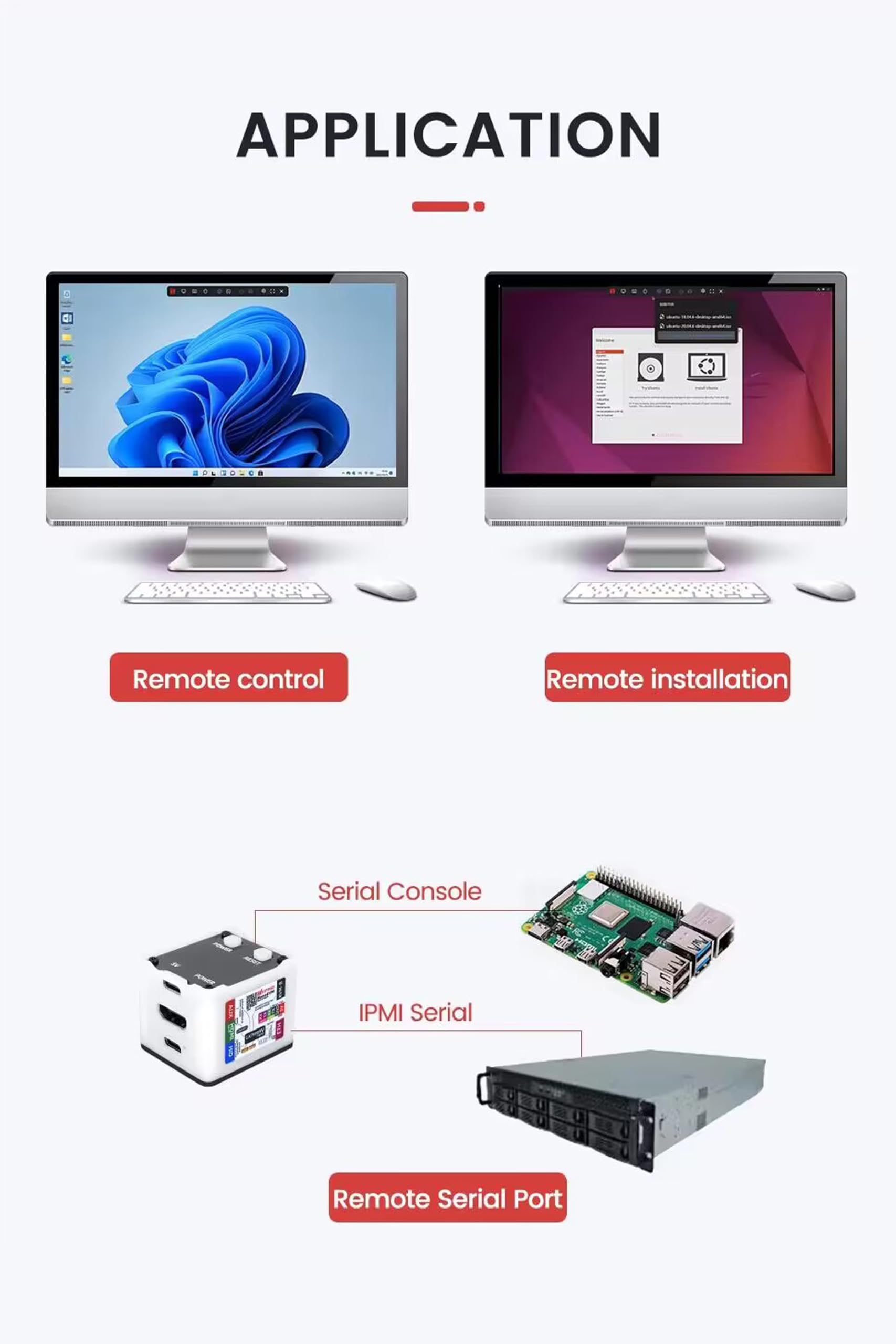

  • [Server Management Support] Sipeed NanoKVM Cube IP-KVM Maintenance Server can be used to monitor servers in real time, get the running status of servers and control them. Support remote desktop, switching machine: NanoKVM gets rid of the limitations that the host computer must be connected to the Internet and the system software, and can be used as the external hardware of the host computer to provide the function of remote control directly.
  • [Support Remote Mounting] Sipeed NanoKVM Cube IP-KVM Kit supports analog USB flash drive device, can be mounted on the installation image to install the system, you can also enter the BIOS on the computer setup; support for remote serial port (Full beta version does not lead to the interface): NanoKVM leads to two sets of serial ports, which can be used with the IPMI, or connected to other boards to use the web page serial terminal interaction, in addition to the user can expand their own! In addition, users can expand their own accessories.
  • [Meet the different needs of users] Sipeed NanoKVM Cube IP-KVM remote control server currently provides two versions: NanoKVM Lite is the basic version of the configuration, suitable for individual users with a certain degree of DIY ability and batch demand for enterprise users; NanoKVM Full is the full version of the configuration, with exquisite shell and complete accessories, built-in bootable system image card, recommended for individual users.
  • [Wiki] Getting Start: "wiki.sipeed.com/hardware/en/kvm/NanoKVM/quick_start.html". Datesheet SDK Document download please click "WayPonDEV" store and ask the question. All after-sales questions, please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".
