TESmart 8×1 HDMI Switch 8 in 1 Out 4K @ 60Hz HDCP with 19-inch Rack-Ears | RS-232 / LAN Control | IR Remote Control and Auto Switch | Auto Scan Time Interval - Black
HDMI Switch 16 ports 4K@60Hz
$335.12
Sale price
$335.12
Regular price
$335.12
Skip to product information
TESmart 8×1 HDMI Switch 8 in 1 Out 4K @ 60Hz HDCP with 19-inch Rack-Ears | RS-232 / LAN Control | IR Remote Control and Auto Switch | Auto Scan Time Interval - Black
$335.12
Sale price
$335.12
Regular price
$335.12
TESmart 8x1 HDMI Switch 4K@60hz 4:4:4 with RS232 & LAN Ports
Features:
- Support resolution up to 3840*2160@60Hz, HDCP compliant

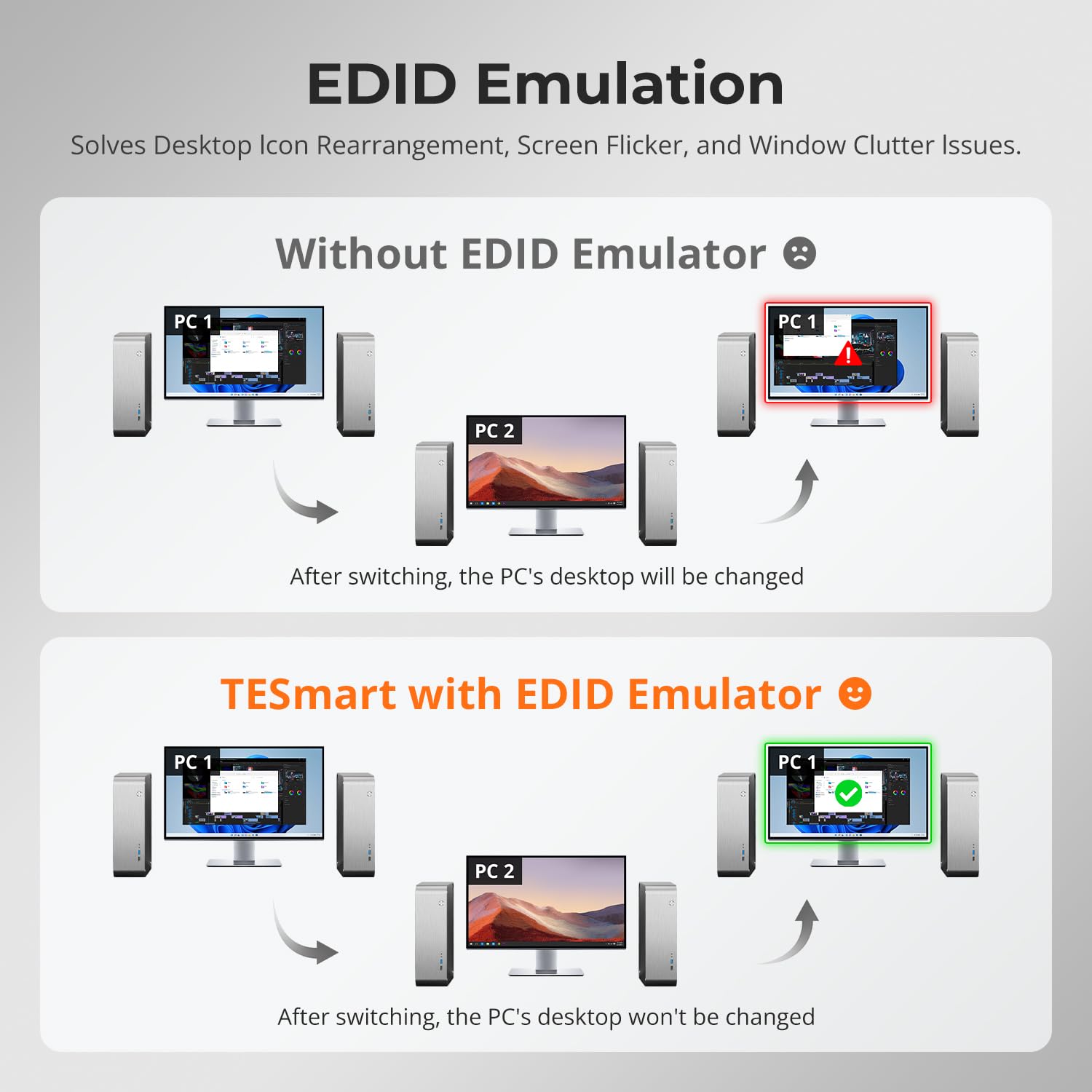

- With EDID emulators in each input port, keep PCs always having correct display information
- Support hot plug, connect or disconnect devices to the HDMI switch in any time and without turn off devices
- Support auto-switching to monitor computers in a specified time interval

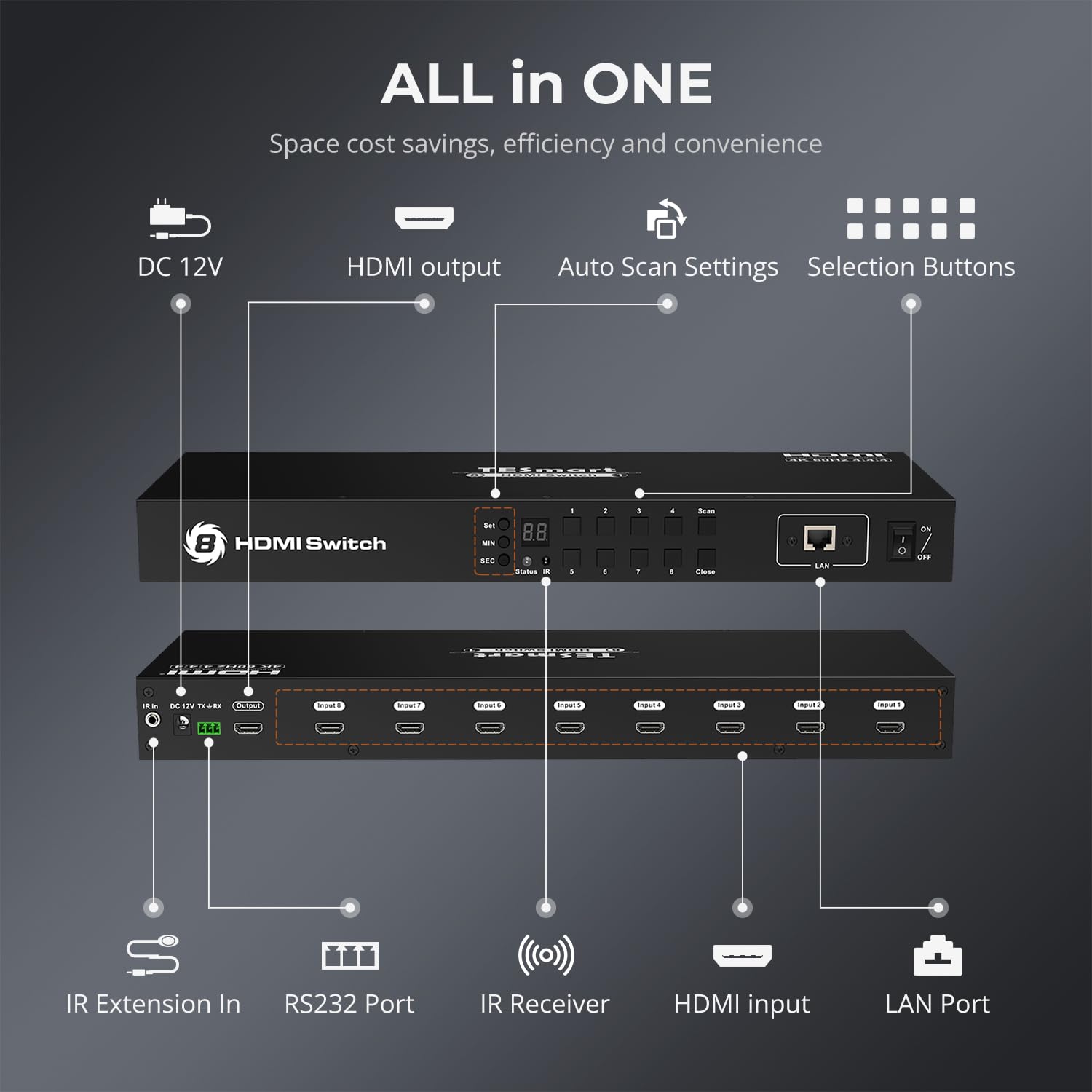

- Support front panel buttons, IR signals, RS232 serial commands or IP commands to control HDMI switch
- Auto input detect and switch
- Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

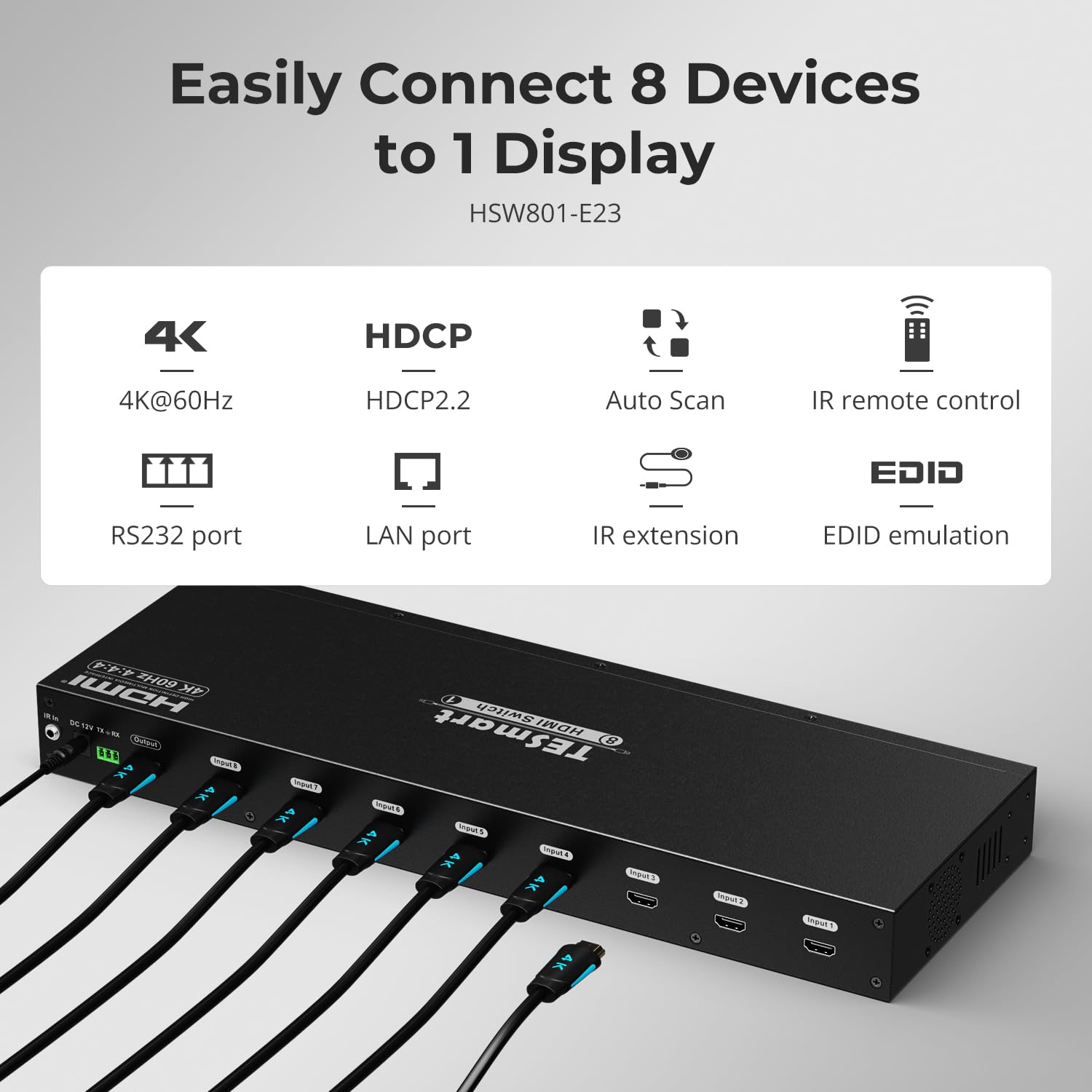

TESmart HDMI Switch 8 in 1 out
Easy to set up, just plug HDMI cables among this HDMI Switch with your devices, and you will get audio and video.

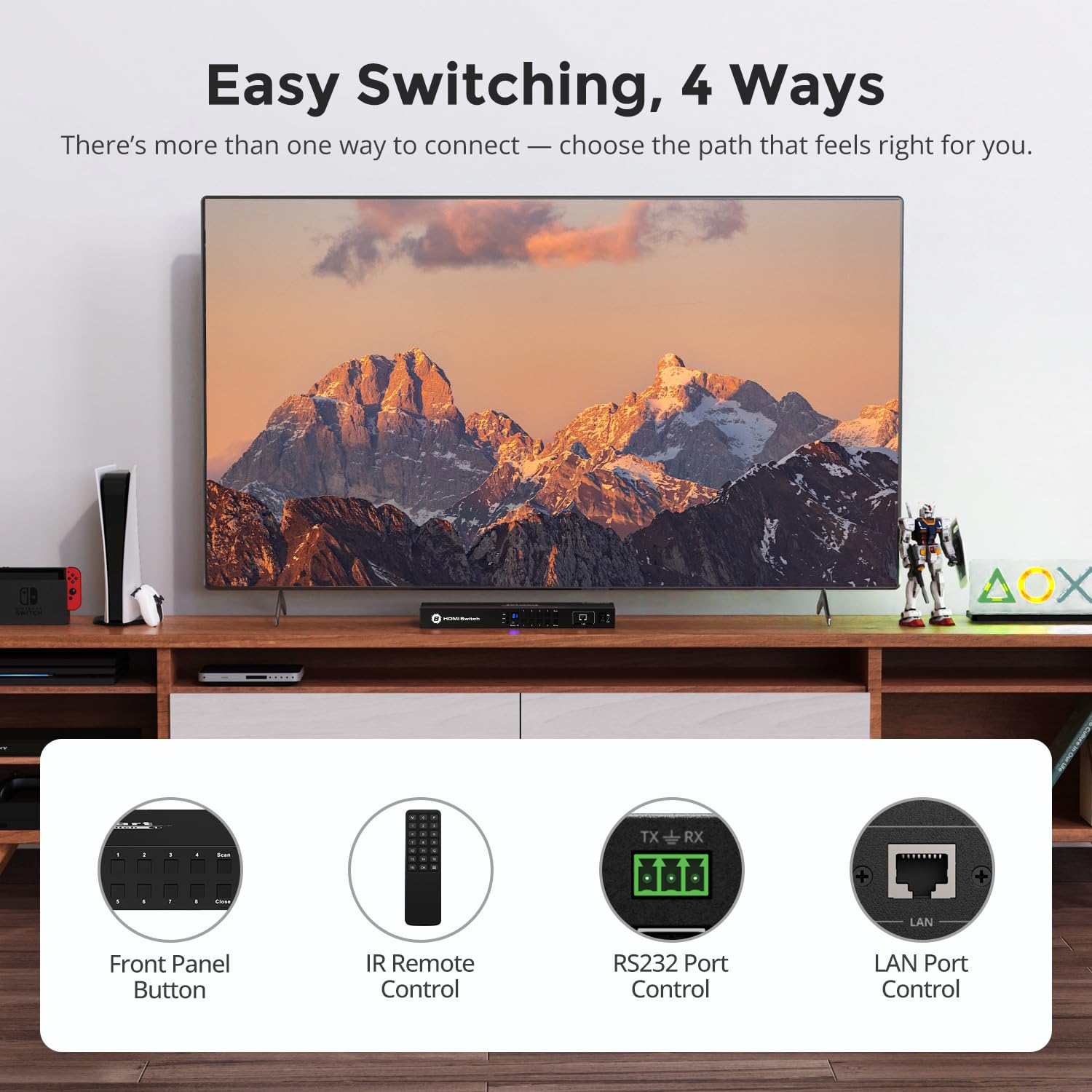

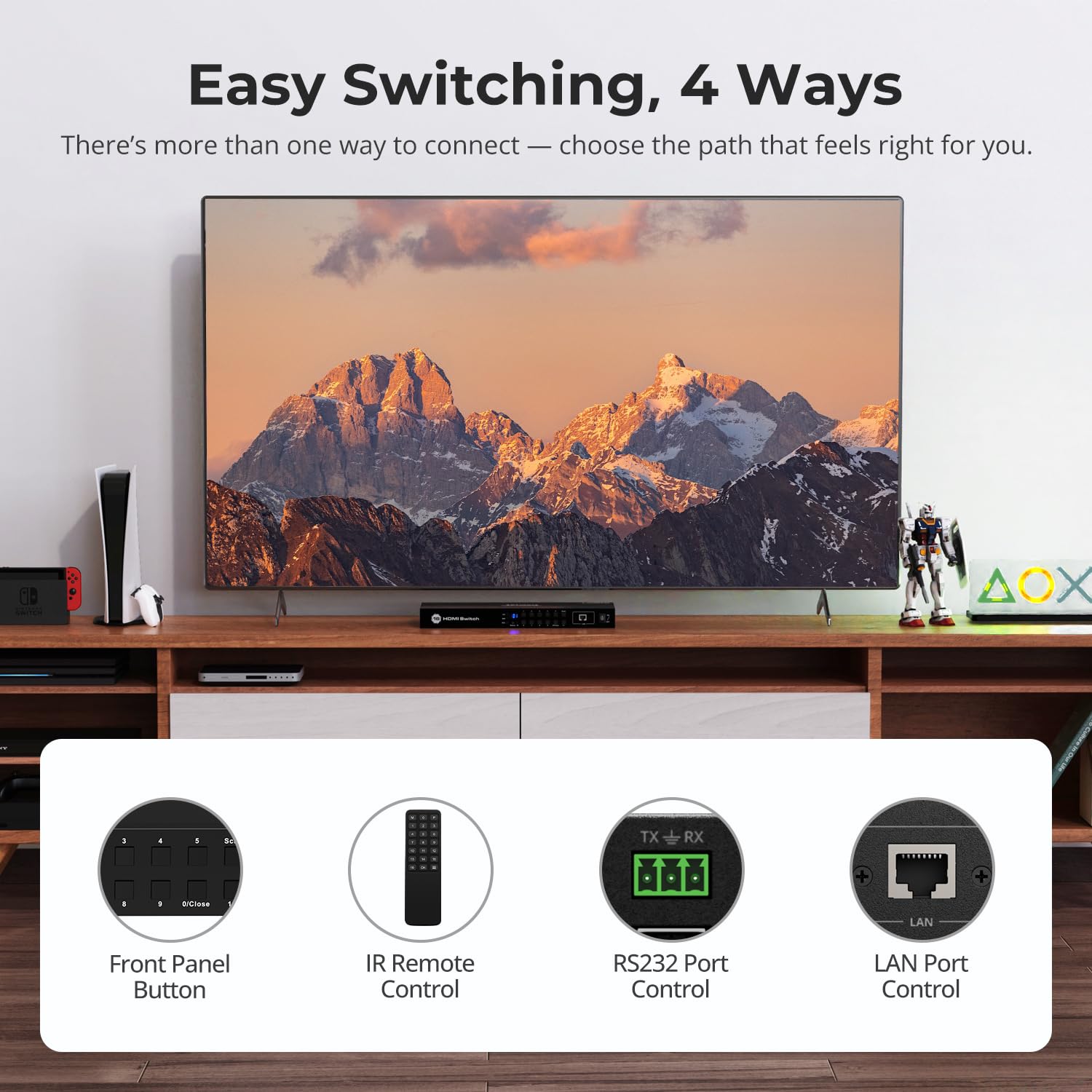

Support multiple switching methods：
Manual switch:
1. Panel button switch
2. Remote control switch
3. RS232/LAN control switch
Non-manual switch:

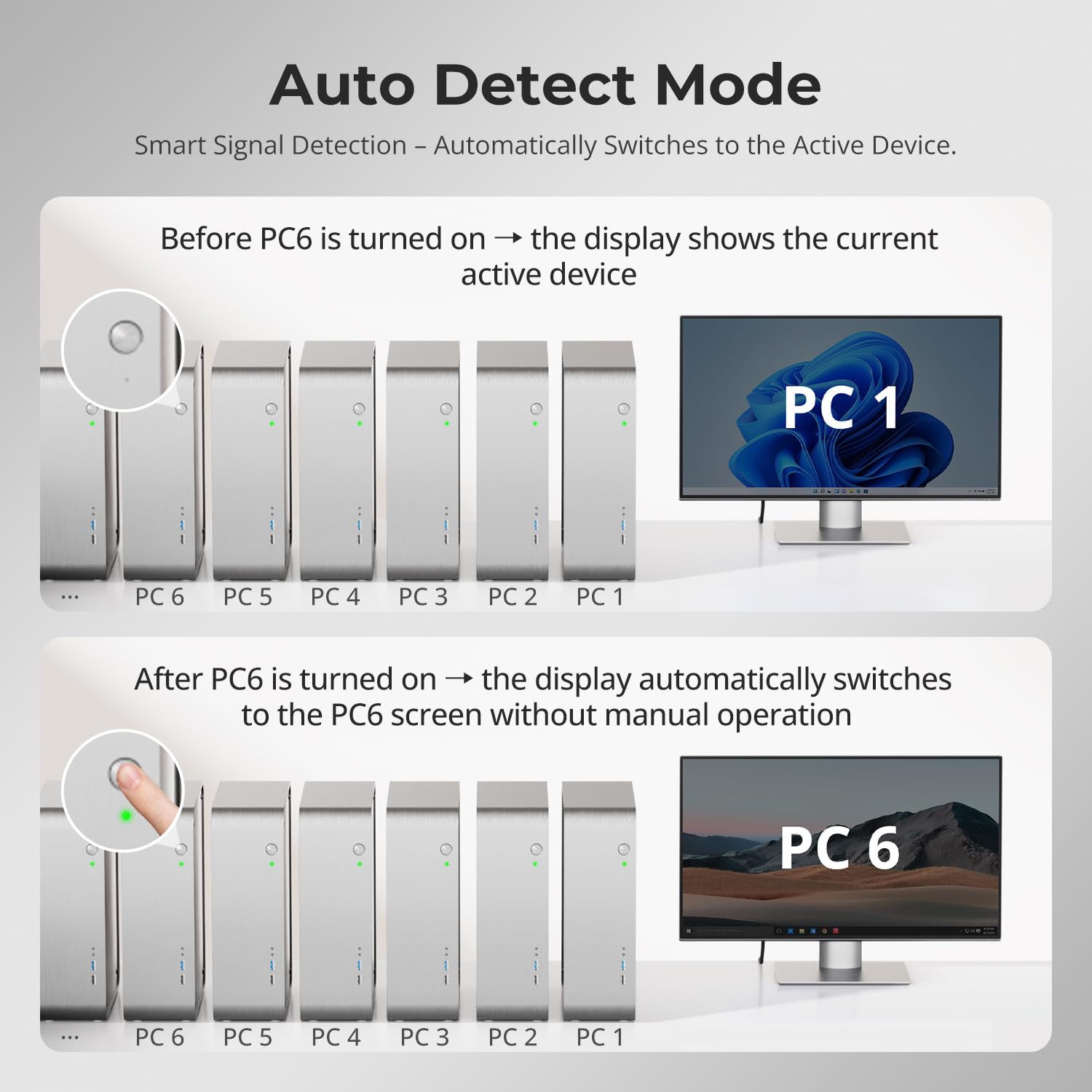

4. Automatic Detection (Support automatic input source detection when attaching new input device to the switcher, the switcher will switch to this just plugged in source automatically.)
5. Auto-Scanning Time Interval Setting (Set the switching interval time and automatically switch the input source signal in turn.)
RS232/LAN controller
- Connect the RS232/LAN port to any control appointment, then it is able to select the input sources by sending RS232/LAN commands.
- You can download the commands on our Website: te-smart.com.
Settings for auto switching time intervals
- [MIN]: Press [MIN] to scan a loop between 0~59 minutes.
- [SEC]: Press [SEC] to turn a loop between 0~59 seconds.
- [Set]: After setting the minutes and seconds, press the [Set] button to enter the setting of the final scan time interval.
- [Scan]: Press this button to star or stop automatically scan between input 1 toinput 8, the interval time can be set by button [Set], [MIN], [SEC]as described above.
Support for HDCP
- HDCP stands for high bandwidth digital content protection, a copy protection procedure that excludes the possibility of capturing digital data in the middle of the data stream between the source and the display.
- It can be used for products that are compatible with the HDCP scheme, such as DVD players, satellite and cable HDTV set top boxes, etc.
System Multi-Compatibility
LAN & RS232 Control
EDID Emulation
HDMI 2.0 / 18Gbps
HSW0801A1U HDMI Switch
|
HSW1601A1U HDMI Switch
|
HMA0808A1U HDMI Matrix
|
HMA1616A20 HDMI Matrix
|
HMA808-ES23 HDMI Matrix
|
|
|---|---|---|---|---|---|
|
|
|||||
| Customer Reviews |
96
|
181
|
68
|
68
|
—
|
| Price | $189.99 | $212.39 | $1,199.99 | $1,499.99 | $689.99 |
| Max input connections | 8 | 16 | 8 | 16 | 8 |
| Supported display count | 1 | 1 | 8 | 16 | 8 |
| Input Port | HDMI*8 | HDMI*16 | HDMI*8 | HDMI *16 | HDMI *8 |
| Video Resolution | 4K@60Hz 4:4:4 | 4K@60Hz 4:4:4 | 4K@60Hz 4:4:4 | 4K@30Hz, 1080P@60Hz | 4K@30Hz, 1080P@60Hz |
| EDID Emulation | ✓ | ✓ | ✓ | ✓ | ✓ |
| Display Mode | no data | no data | 1 to 1 ,1 to all,mirror image | 1 to 1 ,1 to all,mirror image | Quad-view mode, 1 to 1 ,1 to all,mirror image |
| Switchable Control Modes | front panel buttons, IR signals, RS232 & IP command | front panel buttons, IR signals, RS232 & IP command | front panel buttons, IR signals, RS232 & IP command | front panel buttons, IR signals, RS232 & IP command | dial, front panel buttons, IR signals, RS232 & IP command |
| Switching options available | 4 | 4 | 4 | 4 | 5 |
| Auto Detect &Scan Mode | ✓ | ✓ | no data | no data | no data |
| Power Failure Memory | no data | no data | ✓ | ✓ | ✓ |
- HDMI Switch 4K 60Hz Resolution: Supports resolutions up to 3840 * 2160 @ 60Hz, HDCP2.2 compliant. IMPORTANT: This is not KVM, and does not support USB signals
- 8 Port Switch Timing Switching: Supports auto-scan function to switch video automatically among computers in preset Intervals sequentially by OSD menu driven(0-3600 seconds)
- 4 Switch Modes: Supports front buttons, wireless IR remote control）, RS232 serial commands or IP commands to control 8x1 HDMI switcher

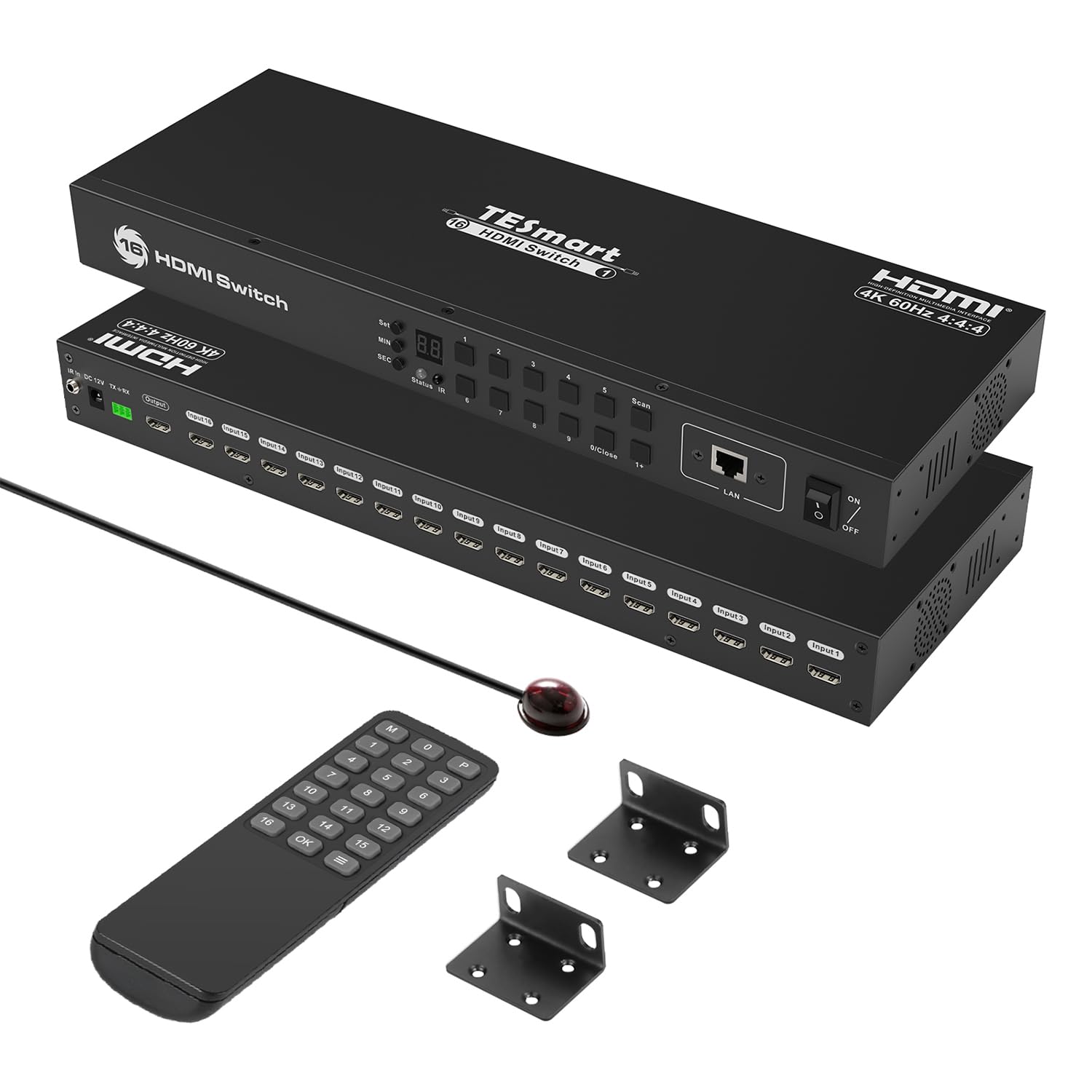

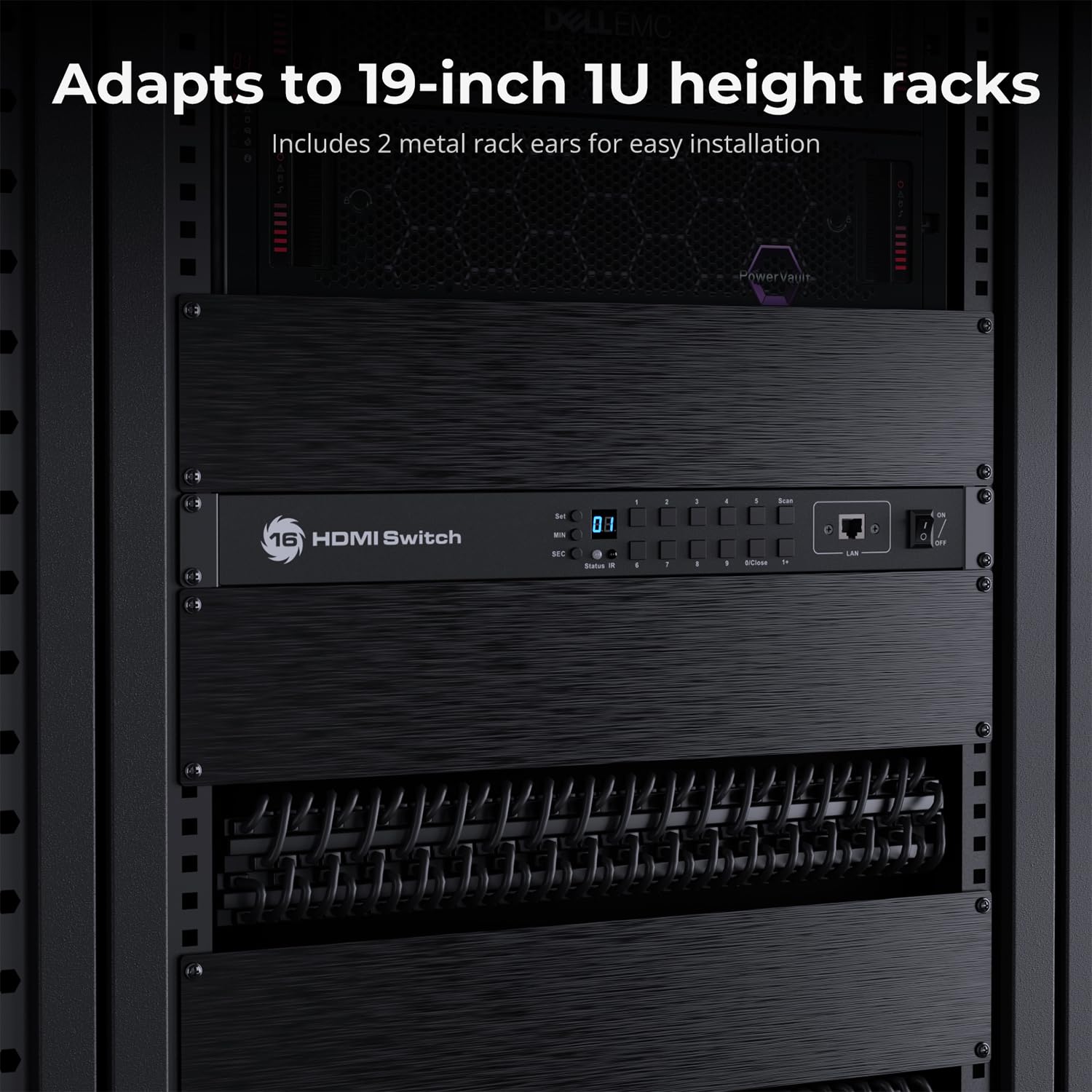

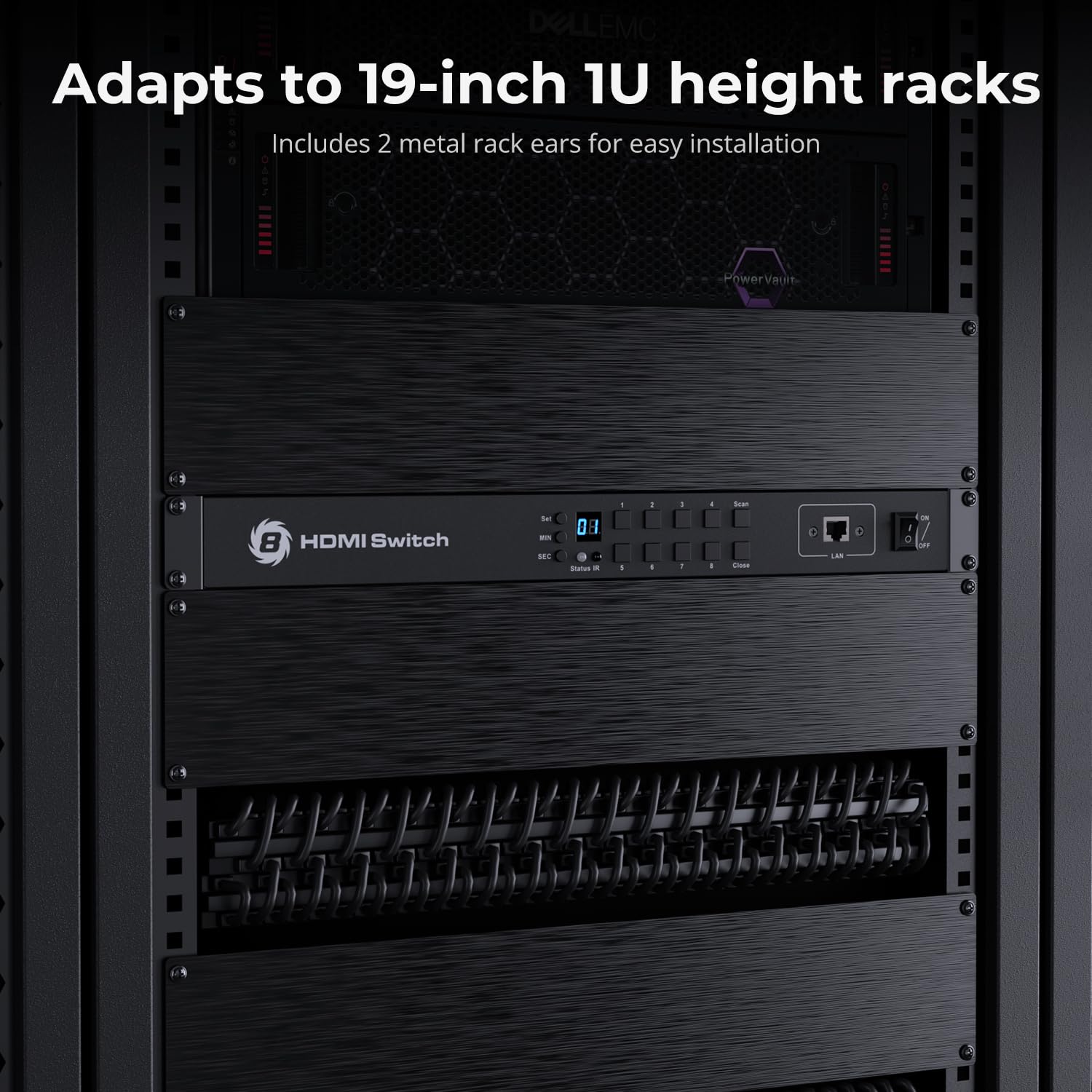

- Standard 1U 19-inch Rack Mount: It is perfect for standard 1U height and 19-inch Cabinet/Rack Design if you maybe use Cabinet/Rack. With 2 Pcs Rack Ears perfect use for Standard 1U 19-inch Cabinet/Rack
- Built-in Intelligent EDID Emulator: Keep display information accurate thanks to the intelligent EDID emulators in all the ports
- Plug and Play: Use the 8x1 HDMI switch to disconnect and reconnect devices as needed without interruption (i.e. hot swap)
- Auto detect and switch function: TESmart 8 port HDMI Switch can automatically detect a new connected device and switch to this input source
| Color | HDMI Switch 8 ports 4K@60Hz |
| Connector Type | HDMI |
| Brand | TESmart |
| Compatible Devices | Camera, Gaming Console, Laptop, Projector, VCR |
| Cable Type | HDMI |
