Upgrade your vehicle with the ZEROXCLUB 7" Wireless RV Backup Camera System.

The pre-wired trailers usually require the taillights to be on to power the camera

About the camera power supply

Many RV manufacturers hook the RV running light to the preinstalled mount.

So you need to turn on the lights in your car to get the running lights to come on to power the RV backup camera.

Show now

What do I do if the camera doesn't immediately activate after connection?

Your RV/trailer's "pre-wired" camera lines aren’t getting power. Some pre-wired systems only send power to the camera when headlights are fully on.
What is the the maximum memory card size the unit can take?

The system supports up to128GB SD card. (*It does not come with a SD card.)
What should I do if I find missing parts in my package?

Consult us using the information provided in the user manual (usually on the cover). We will verify the issue and send you the missing parts soon.
Can the camera angle be adjusted?

Yes, the camera lens can be adjusted up or down 45° for optimal viewing angle.
Why does wireless camera even need wiring?

It is a wireless solution that transmits images from the camera to the monitor via a wireless signal. But it does not mean there’s zero wiring, you still need to power up the wireless unit from your 12V power source.

ZEROXCLUB RV Backup Camera System

	BW7M Wireless System	BW3 Wireless System	BW4 Wireless System	BS701 Wireless System	BC701 Wireless System	BW101SL-M Wireless System	W01 Wireless System
Customer Reviews	462	35	35	35	11	182	1,624
Price	$119.99	$259.99	$299.98	$129.99	$179.99	$189.99	$139.99
Monitor Size	7''	7''	7''	7''	7''	10''	7''
Camera Number	1	3	4	1	1	1	1
Camera Power Supply	Hardwired to 12V power source	Hardwired to 12V power source	Hardwired to 12V power source	The camera’ s built-in battery	The camera’ s built-in battery	Hardwired to 12V power source	Hardwired to 12V power source
IR Night Vision	✔	✔	✔	✔	✔	✔	✔
Loop Recoring	✔	✔	✔	✔	✔	✔	✘
Waterproof	✔	✔	✔	✔	✔	✔	✔
Spilt Screen	✔	✔	✔	✔	✔	✔	✔
Guide Lines	✔	✔	✔	✔	✔	✔	✔

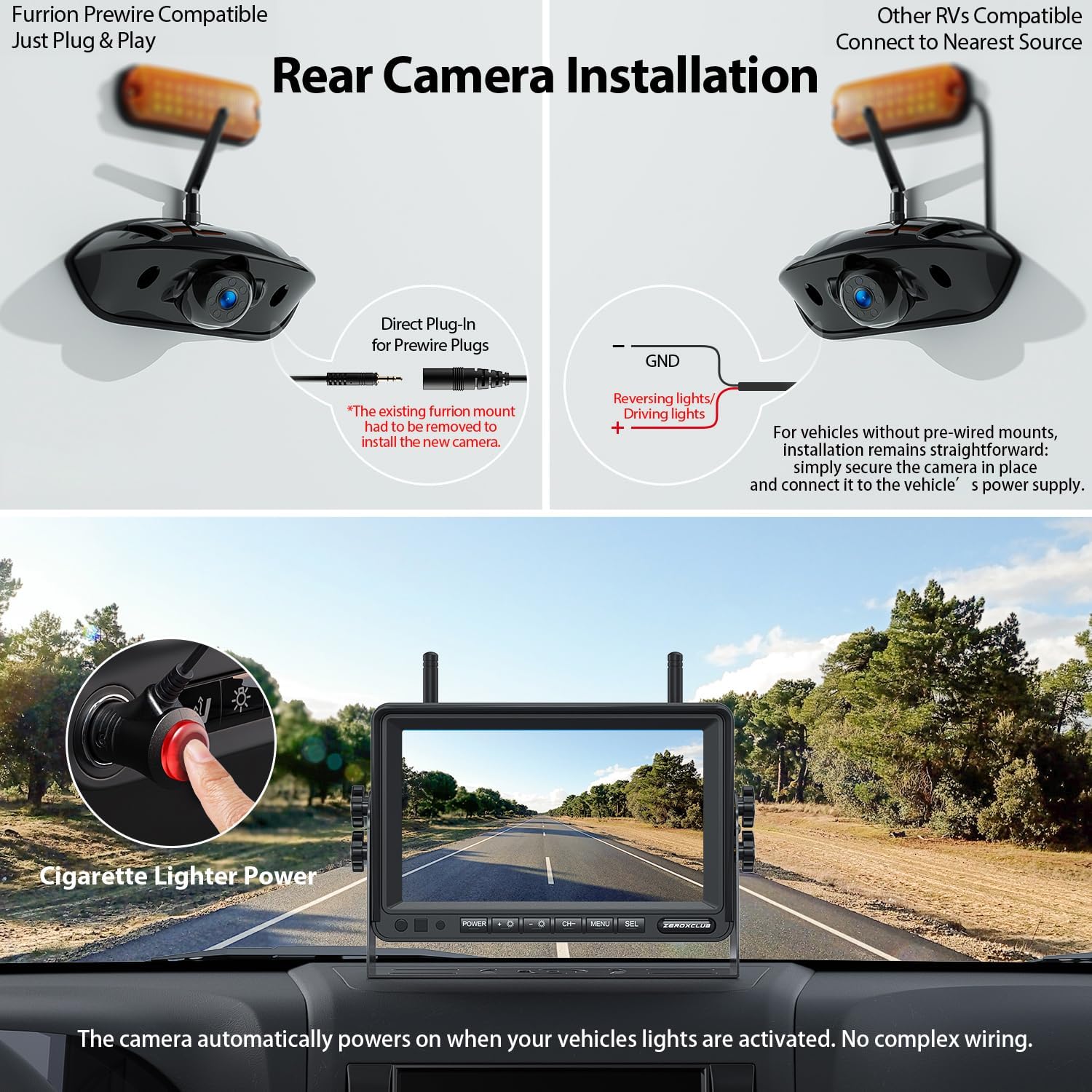

Simple Installation: Most RVs are already equipped with Furrion pre-wired and mounting locations, this wireless RV backup camera system connects directly to Furrion pre-wired jacks. The camera automatically powers on when your headlights(vehicle’s lights) are activated. No complex wiring. For vehicles without pre-wired mounts, installation remains straightforward: simply secure the camera in place and connect it to the vehicle’s power supply.

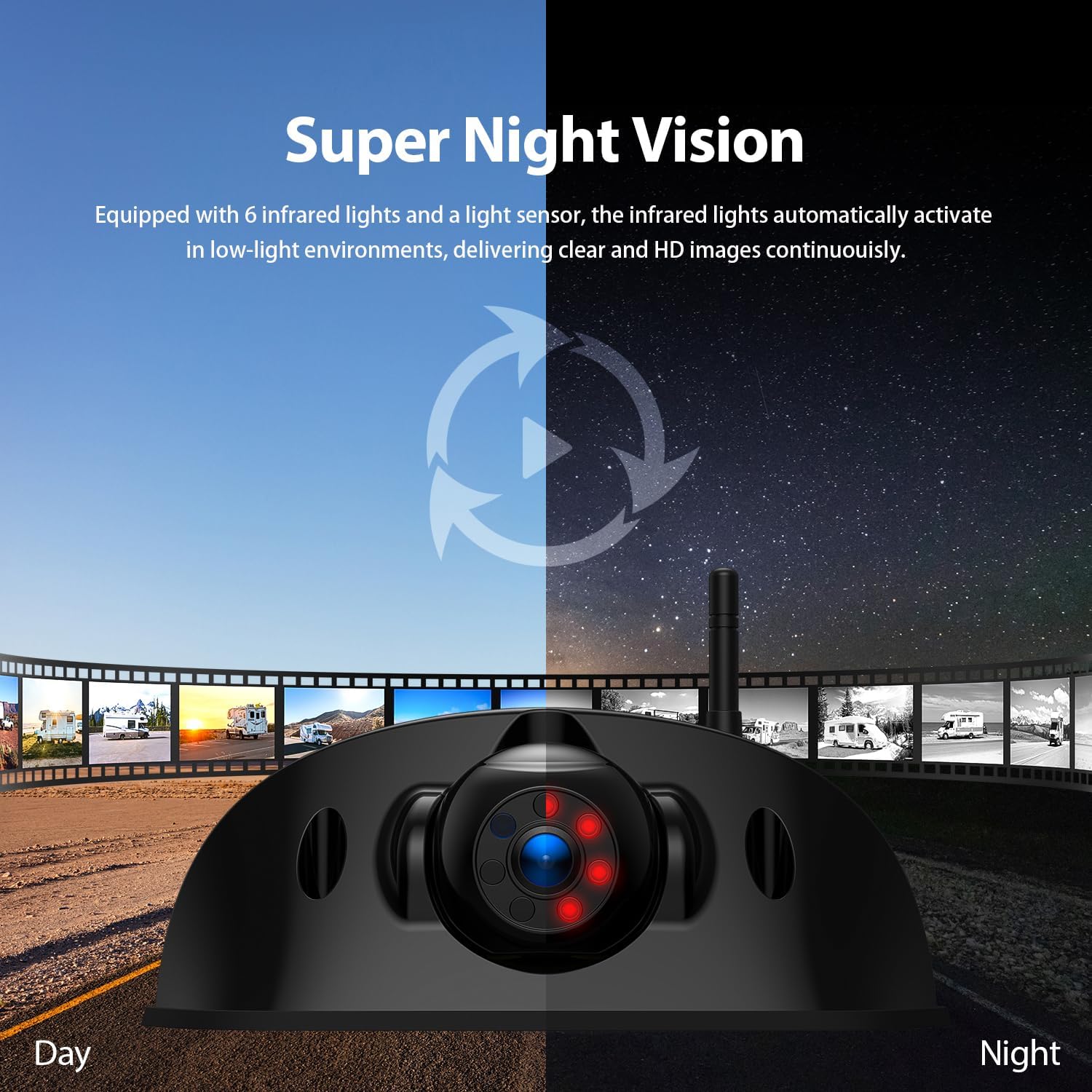

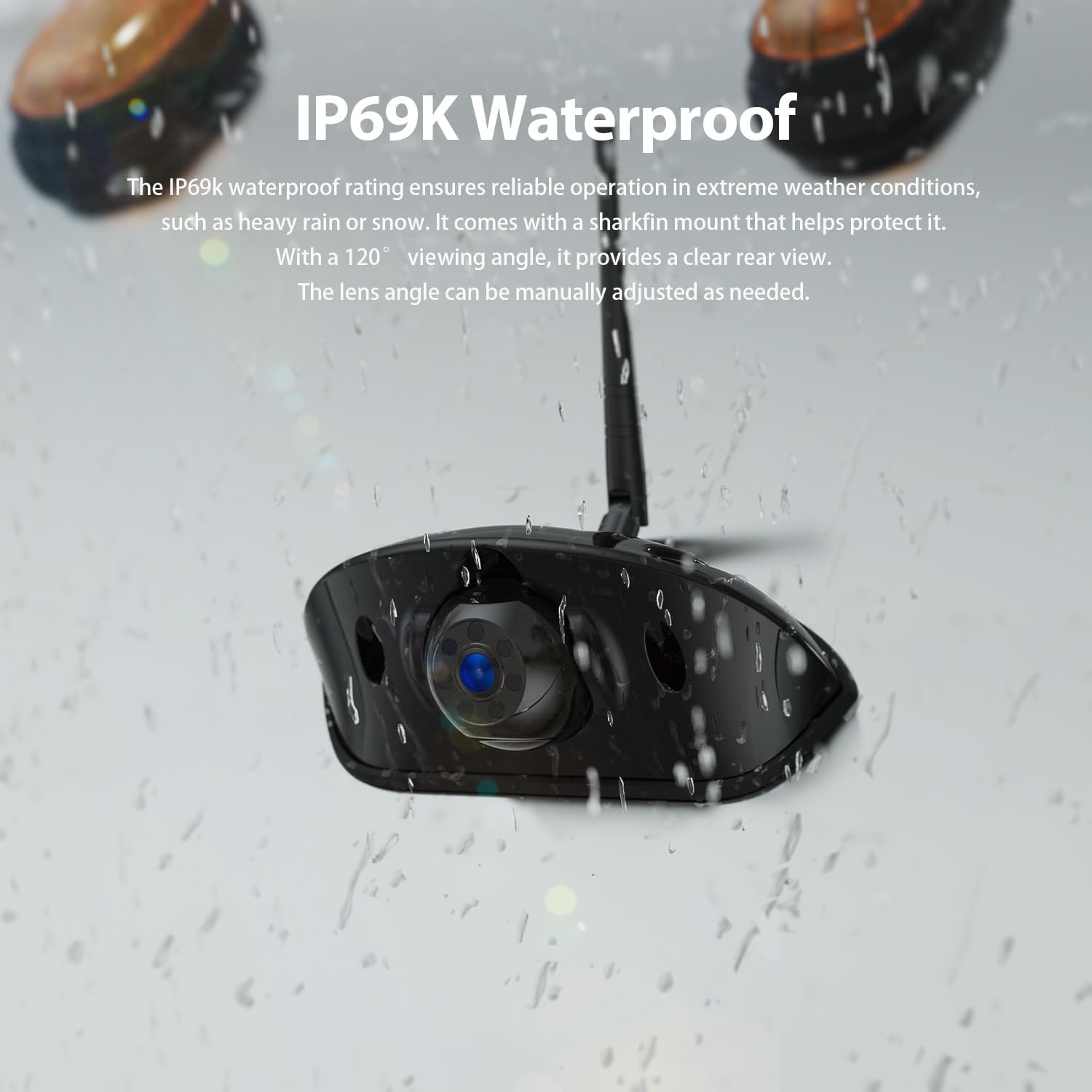

IP69k Waterproof Camera with Night Vision: The IP69k waterproof rating ensures reliable operation in extreme weather conditions, such as heavy rain or snow. With a 120° viewing angle, it provides a clear rear view. Equipped with 6 infrared lights and a light sensor, the infrared lights automatically activate in low-light environments, delivering clear and HD images continuouisly.

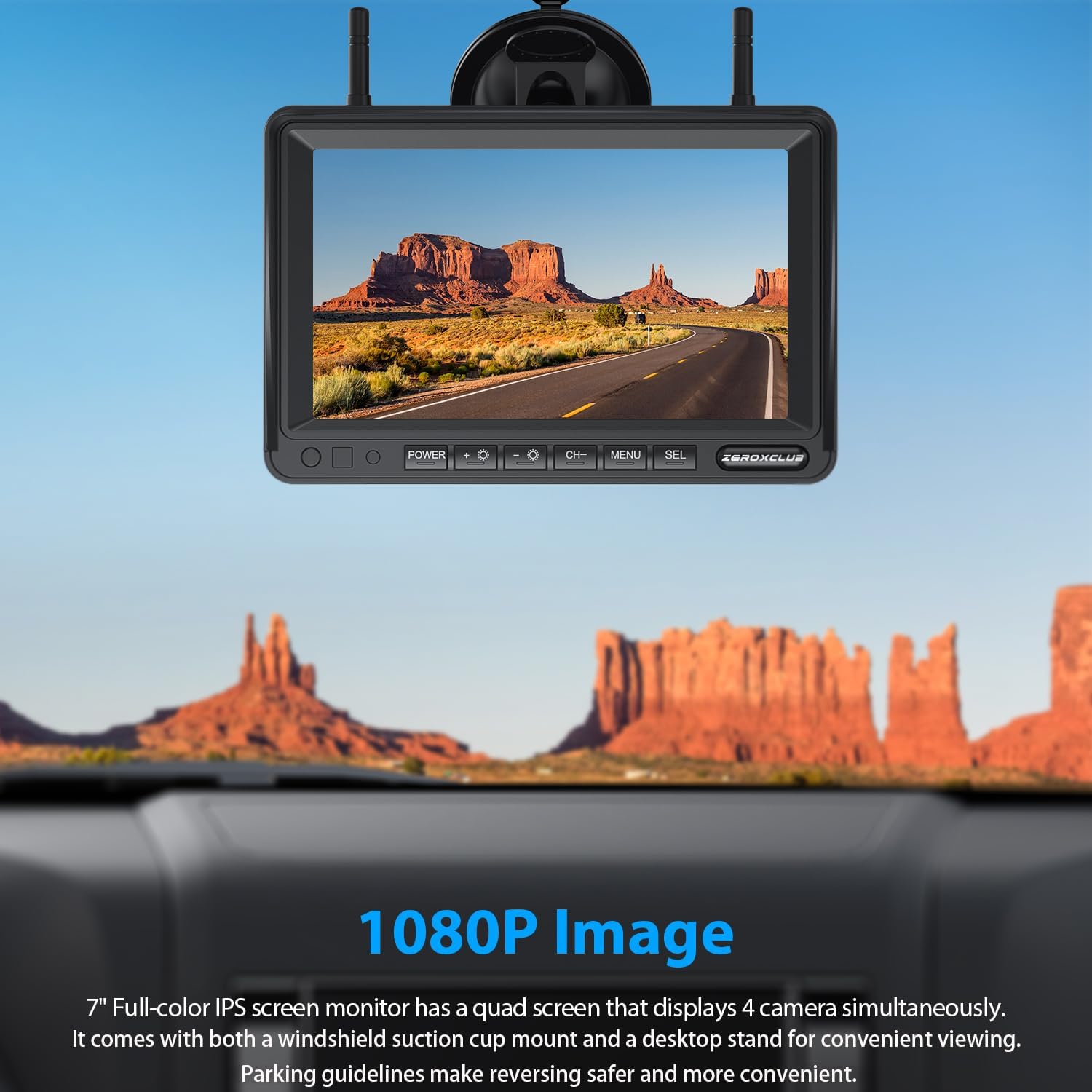

Clear 7-inch IPS Screen: The 7-inch full-color IPS screen can display clear images from up to 4 cameras, providing comprehensive coverage. It comes with both a windshield suction cup mount and a desktop stand for convenient viewing. Parking guidelines make reversing safer and more convenient.

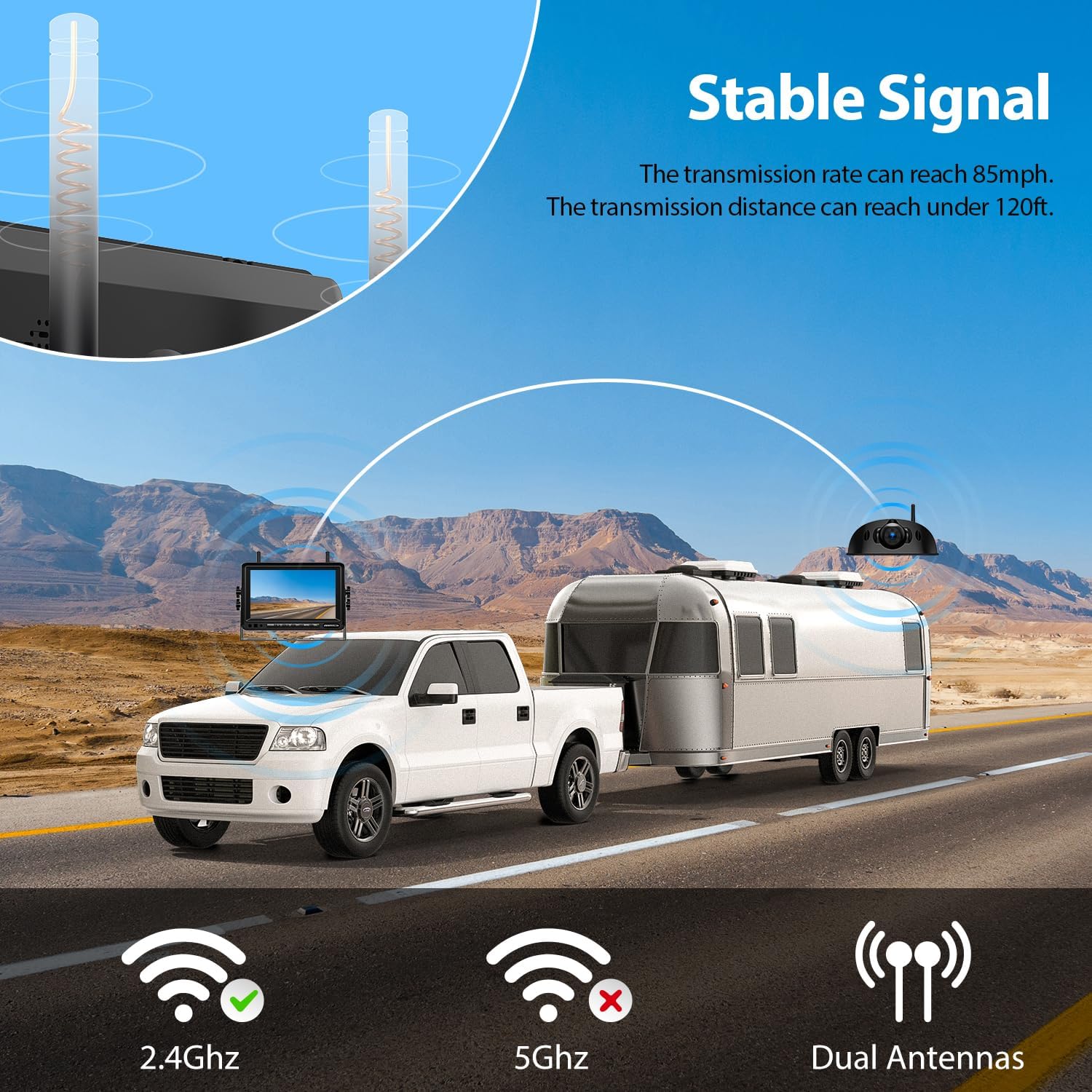

Dual Antenna for Strong Signal: The 2.4GHz proprietary wireless communication ensures a reliable digital connection between the camera and the monitor. With a high-speed reception range of up to 100 feet, it delivers real-time images without interference.
For GMC/Chevy/Ford Owners: Newer GM vehicles utilize PWM power, which may interfere with video transmission—resulting in flickering / signal loss / screen freeze. To ensure stable performance, we recommend adding a Furrion 7-way adapter (not included) or a 12V PWM filter (not included). These accessories help clean the power supply, restoring reliable camera operation. Tip: To confirm if your vehicle uses PWM power, you can use portable 12V Power Supply or Household Power Supply Testing.

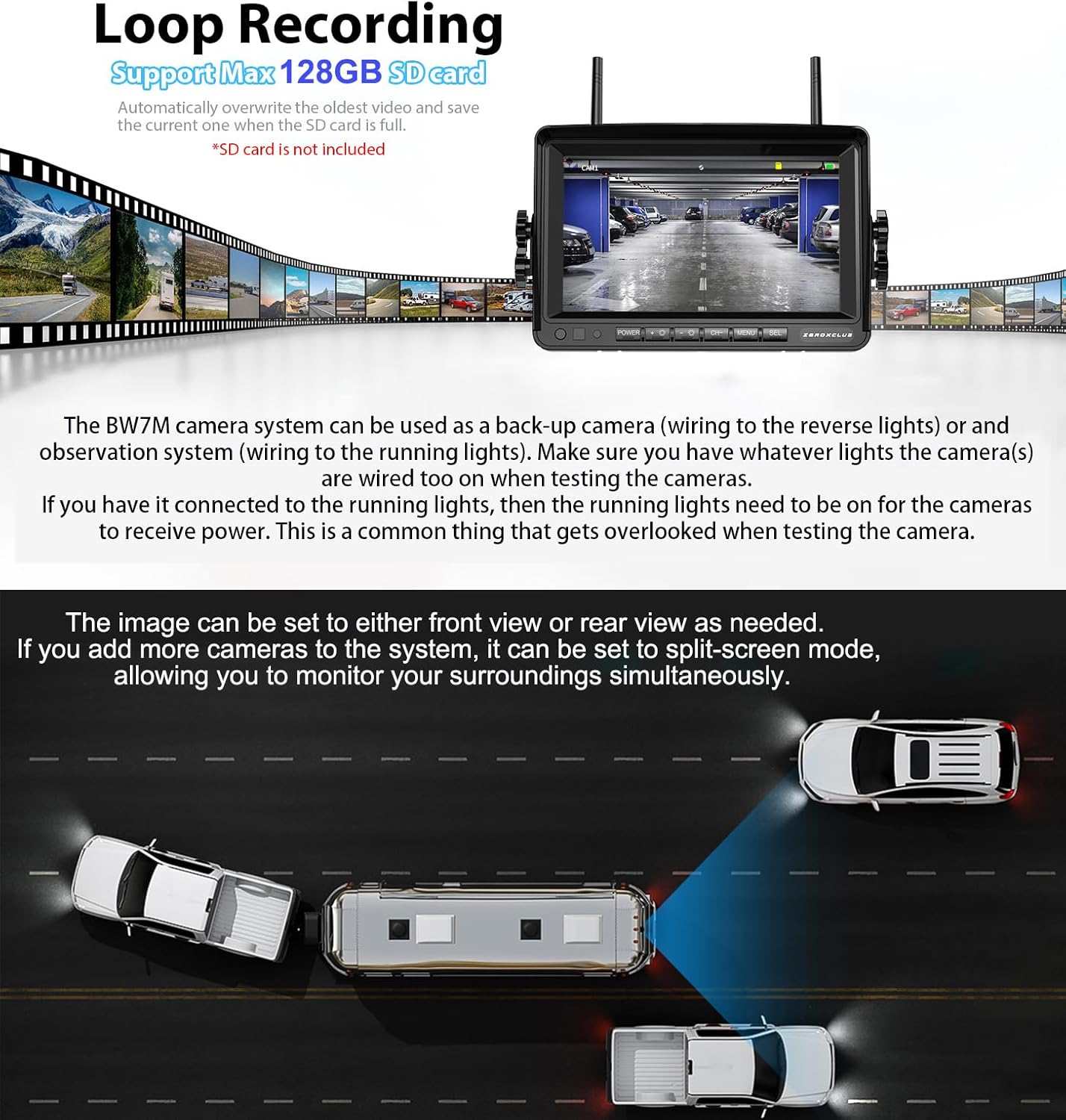

More Upgraded Features: With loop recording, simply insert an SD card (not included) to record moments or evidence of your vehicle. The image can be set to either front view or rear view as needed. If you add more cameras to the system, it can be set to split-screen mode, allowing you to monitor your surroundings simultaneously.
Wireless Transmission: The BW7M system wirelessly transmits video between the camera and monitor (no video cables required). However, both units require wired power connections to ensure stable power supply and consistent performance, which is crucial for the camera to function properly. ( Note: "Wireless" refers only to video transmission )

The BW7M camera system can be used as a back-up camera ( wiring to the reverse lights ) or and observation system (wiring to the running lights). Make sure you have whatever lights the camera(s) are wired too on when testing the cameras. If you have it connected to the running lights, then the running lights need to be on for the cameras to receive power. This is a common thing that gets overlooked when testing the camera.
Please note that this system is not compatible with the furrion cameras.

› See more product details

Brand	ZEROXCLUB
Screen Size	7 Inches
Product Dimensions	7"L x 1"W x 5"H
Compatible Devices	ZEROXCLUB BW7M Camera
Installation Type	Surface Mount
Optical Sensor Technology	infrared
Lens Type	Wide Angle
Real Angle of View	120 Degrees
Connector Type	3.5mm male jack, DC
Optical Sensor Size	1/3 inch
