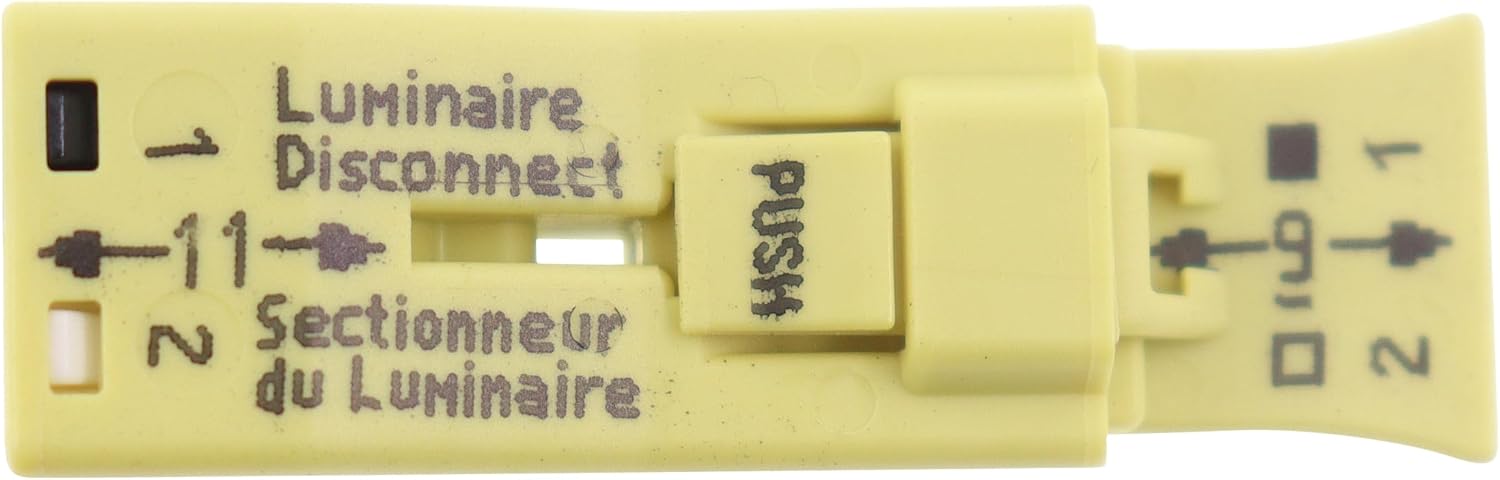

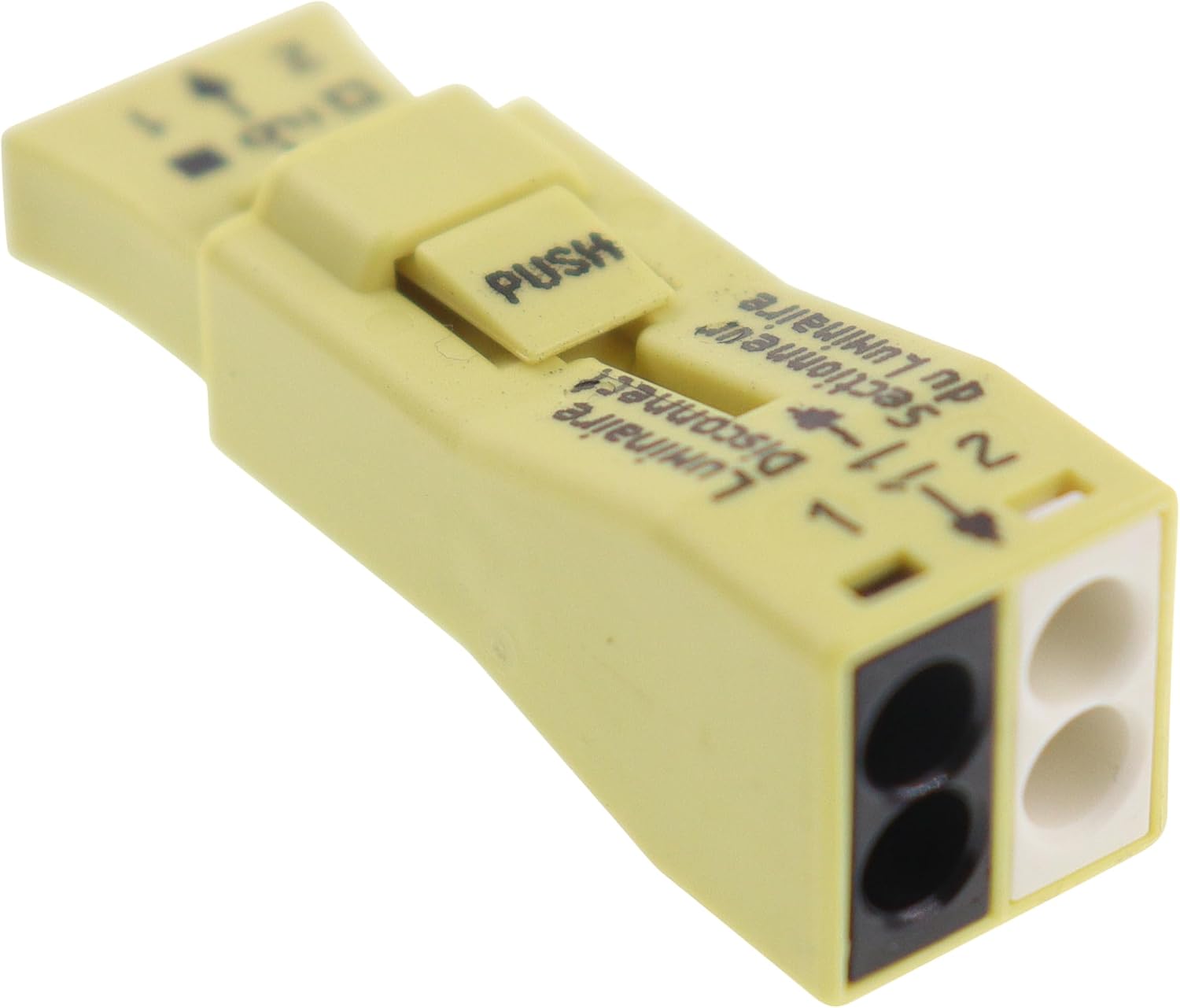

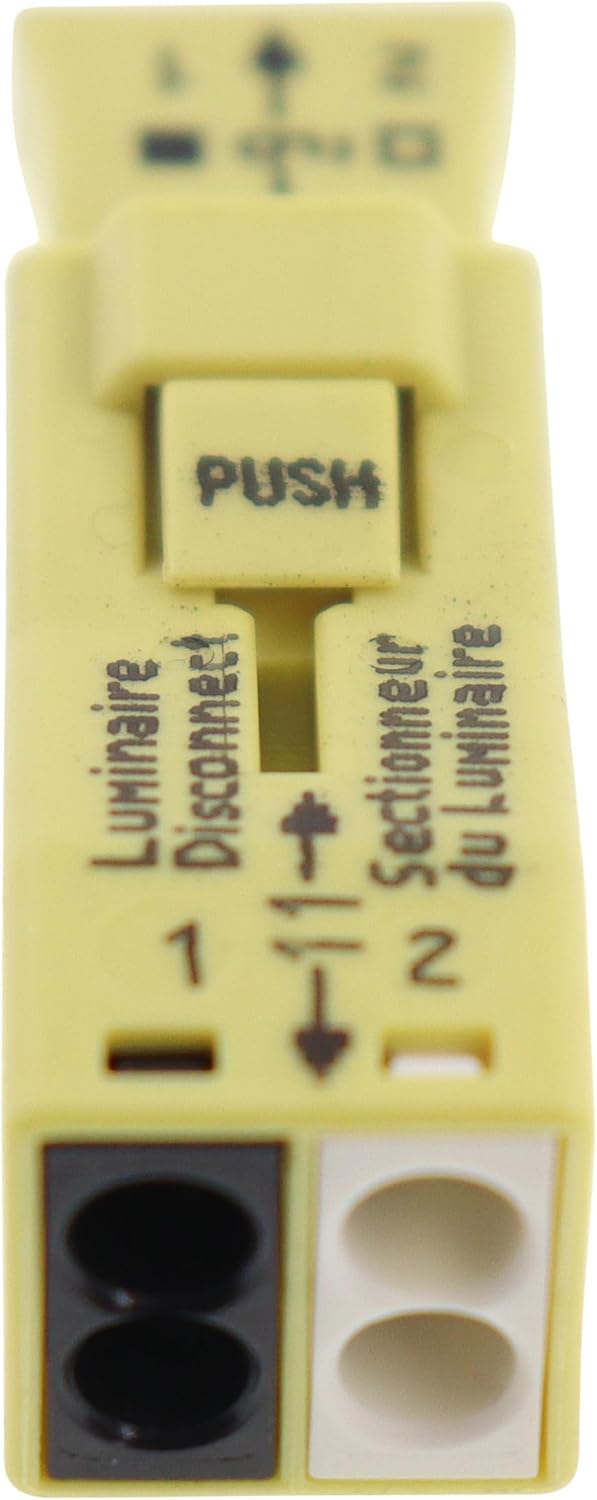

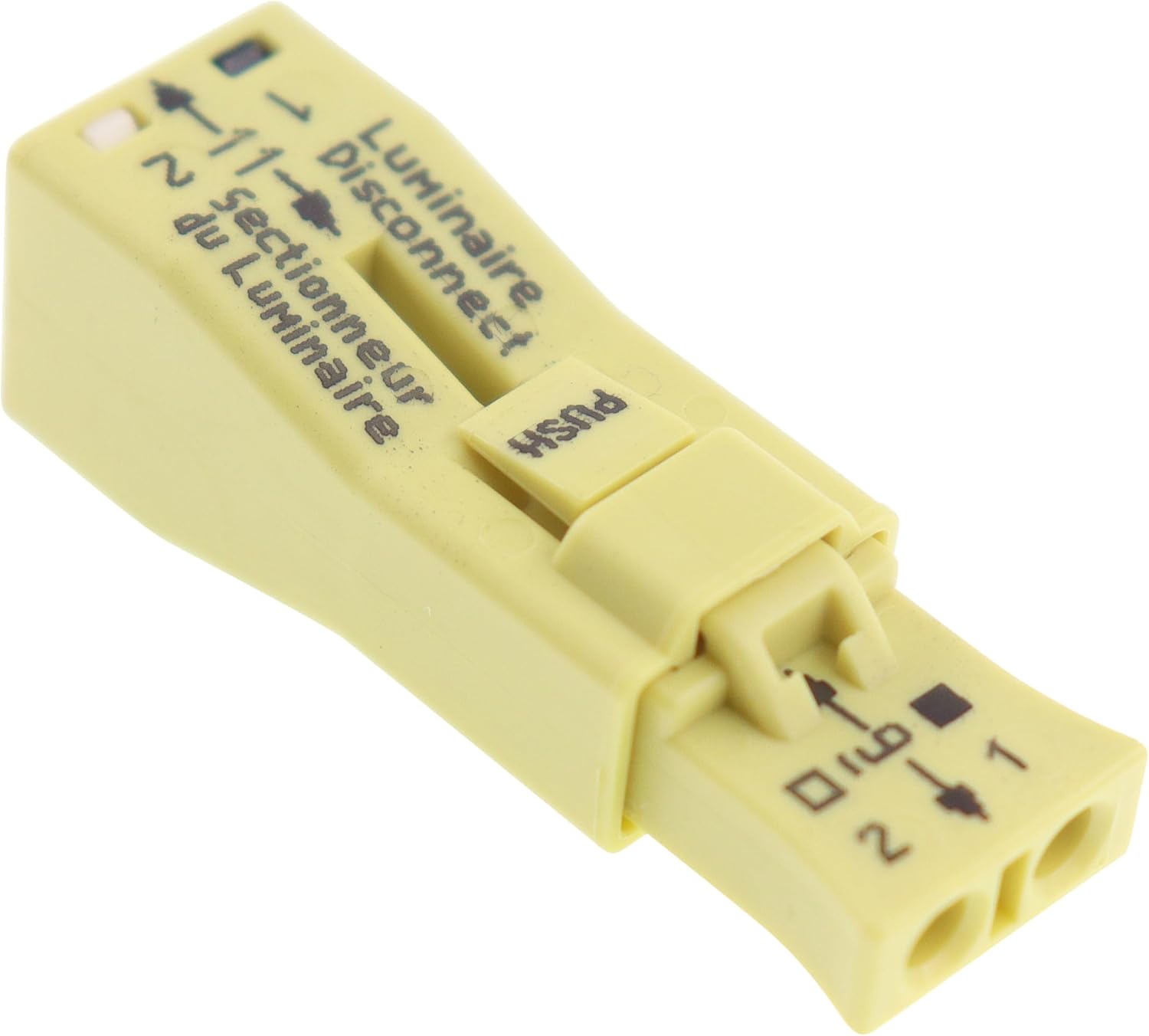

Wago 873-902 LUMI-NUTS? PUSH WIRE? Connector for Luminaire Disconnect 500 PK
Wago 873-902 LUMI-NUTS? PUSH WIRE? Connector for Luminaire Disconnect 500 PK
From the inventor of the PUSHWIRETM connector comes the 873 Series LUMI-NUTS the first luminaire disconnect UL listed as a multi-pole splicing connector rated up to 600V and 12 AWG maximum Already the safest, most convenient connector available for compliance with the latest NEC 410.130 (G) and CEC 30-308 (4) requirements for non-residential wiring of luminaires with ballasts, this certification allows full utilization of the WAGO-exclusive daisy chain feature. Each line-side connector contains two wire ports per pole, allowing quick and easy feedthrough of power connections to multiple ballasts in a fixture, or to multiple fixtures in an installation, resulting in the elimination of additional wire splicing components, saving wiring time, and reducing the possibility for error.
- Measures 0.512 Inch x 1.654 Inch x 0.52 Inch
- For luminaire disconnect
| Item Pitch | 6.6 Millimeters |
| Gauge | 12_gauge |
| Connector Type | Screw |
| Number Of Contacts | 6 |
| Mounting Type | DIN Rail Mount |
| Material | Copper |
| Color | Yellow |
| Brand | WAGO |
| Voltage | 600 Volts |
| Number Of Poles | 6 |
